Eagle
>>
1991
>>
Talon FWD L4-1753cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
Engine Compartment Connector Locations
Engine Compartment Connector Locations

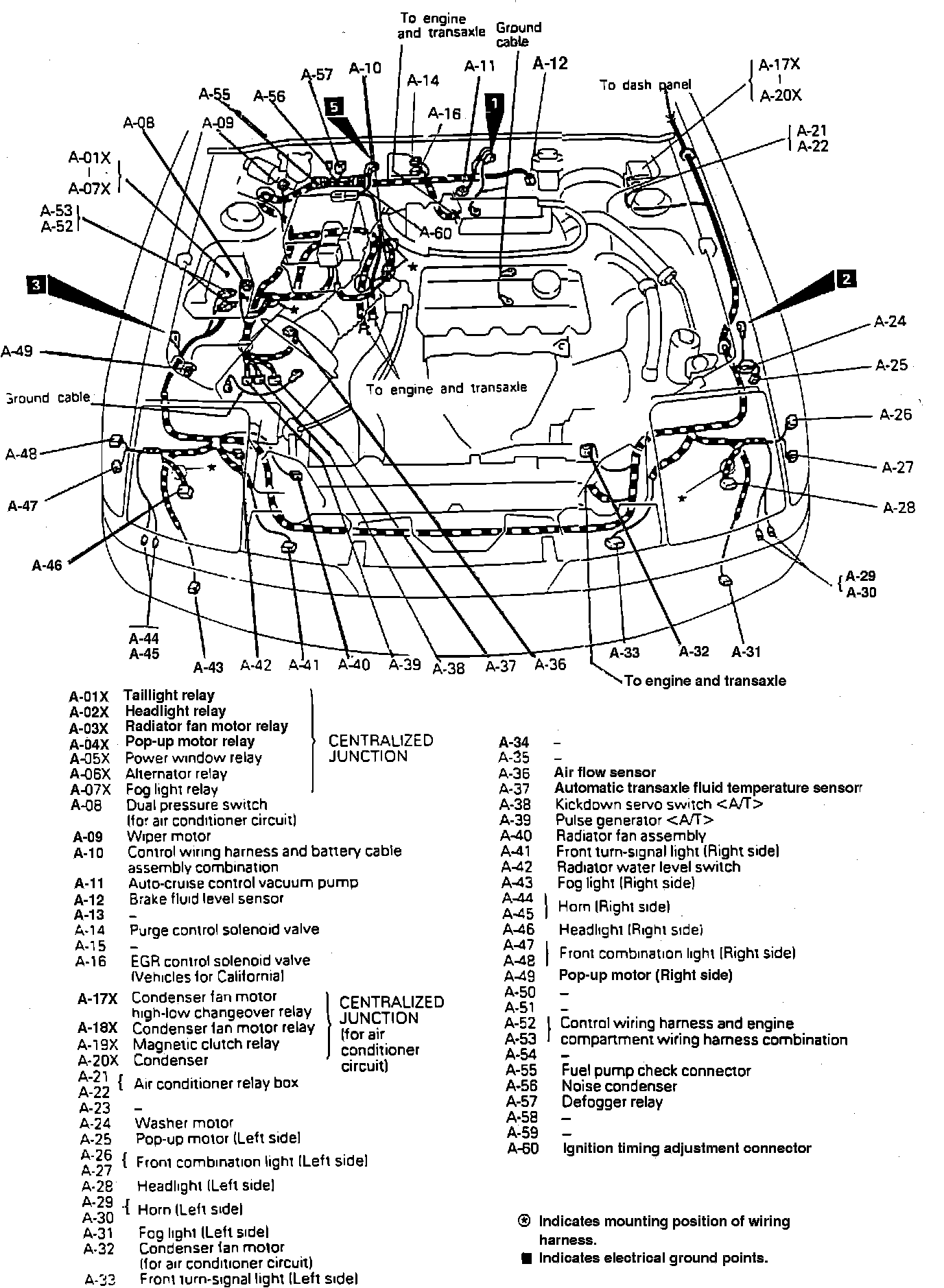

Engine Electrical Harness Connectors:

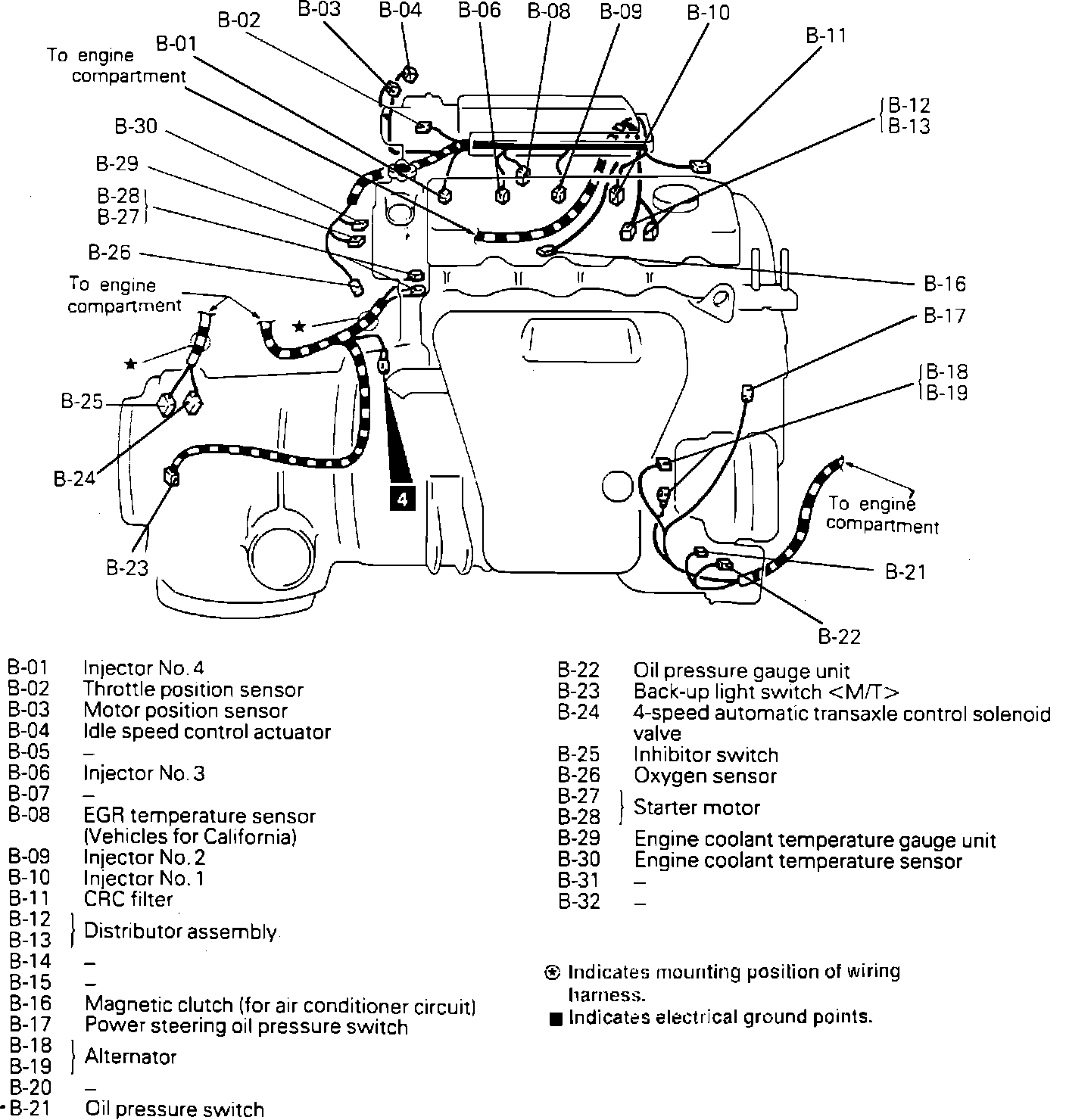

Transaxle Electrical Harness Connectors:
