Engine Compartment Wiring

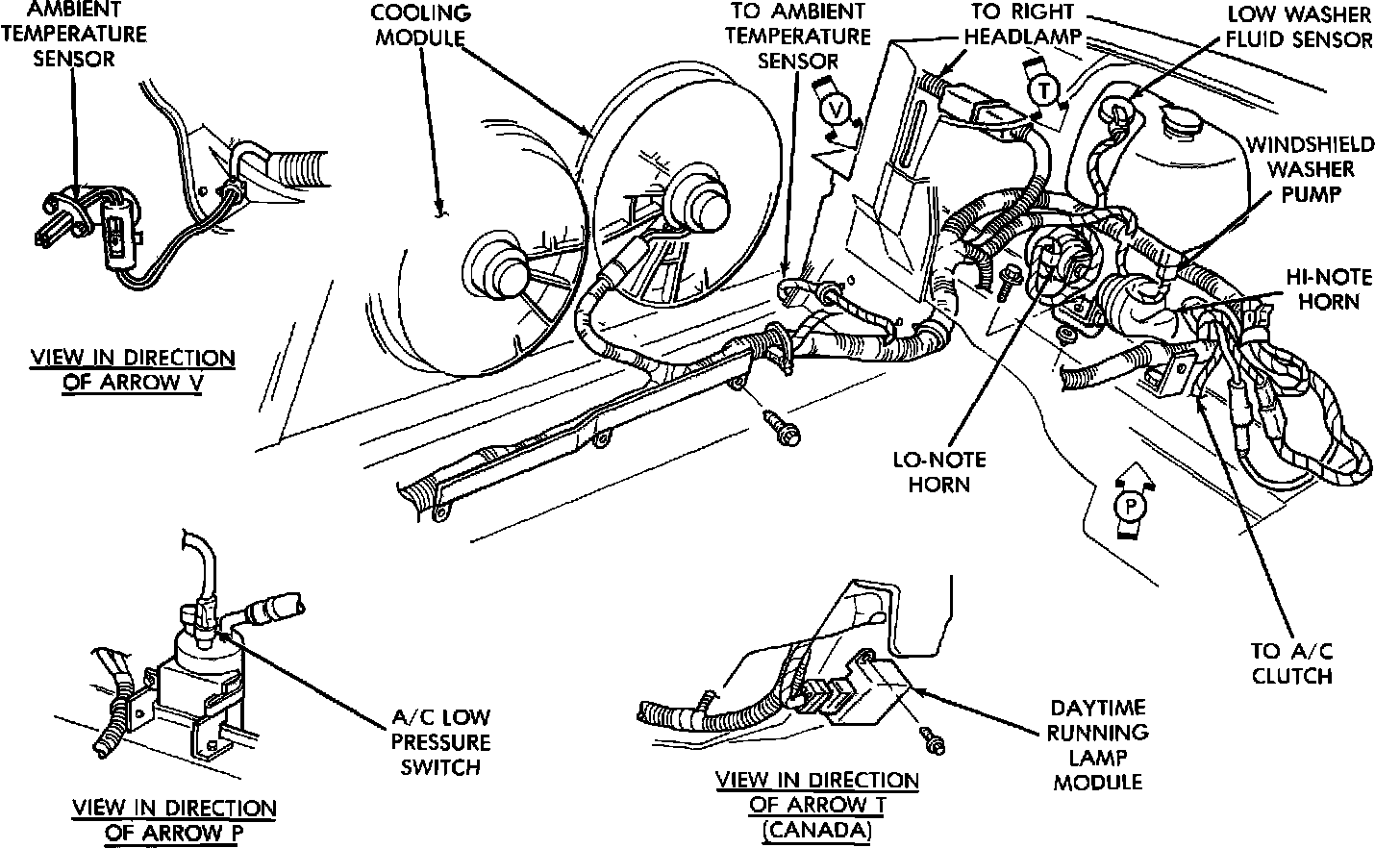

Engine Compartment Wiring:

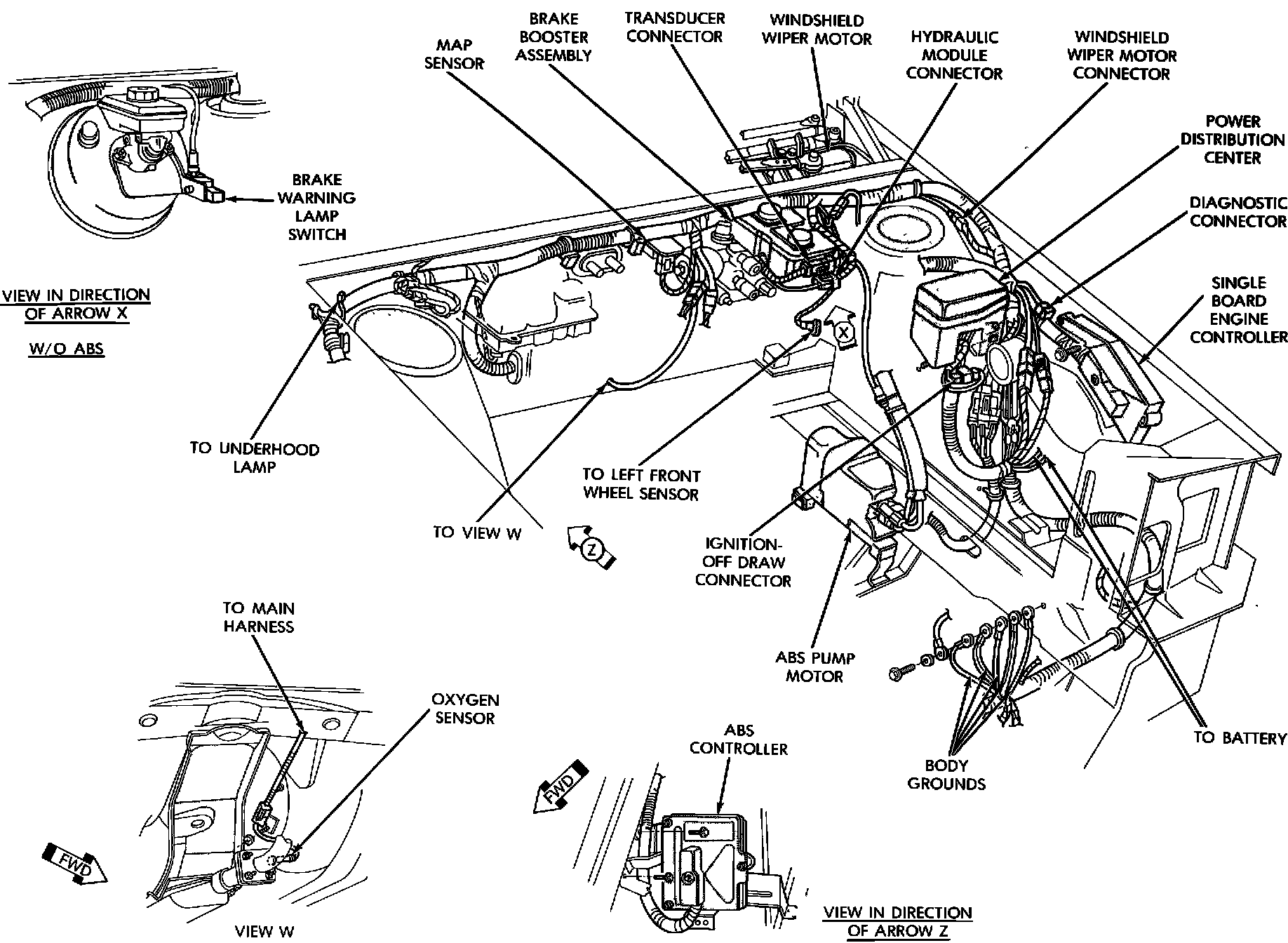

Engine Compartment Wiring:

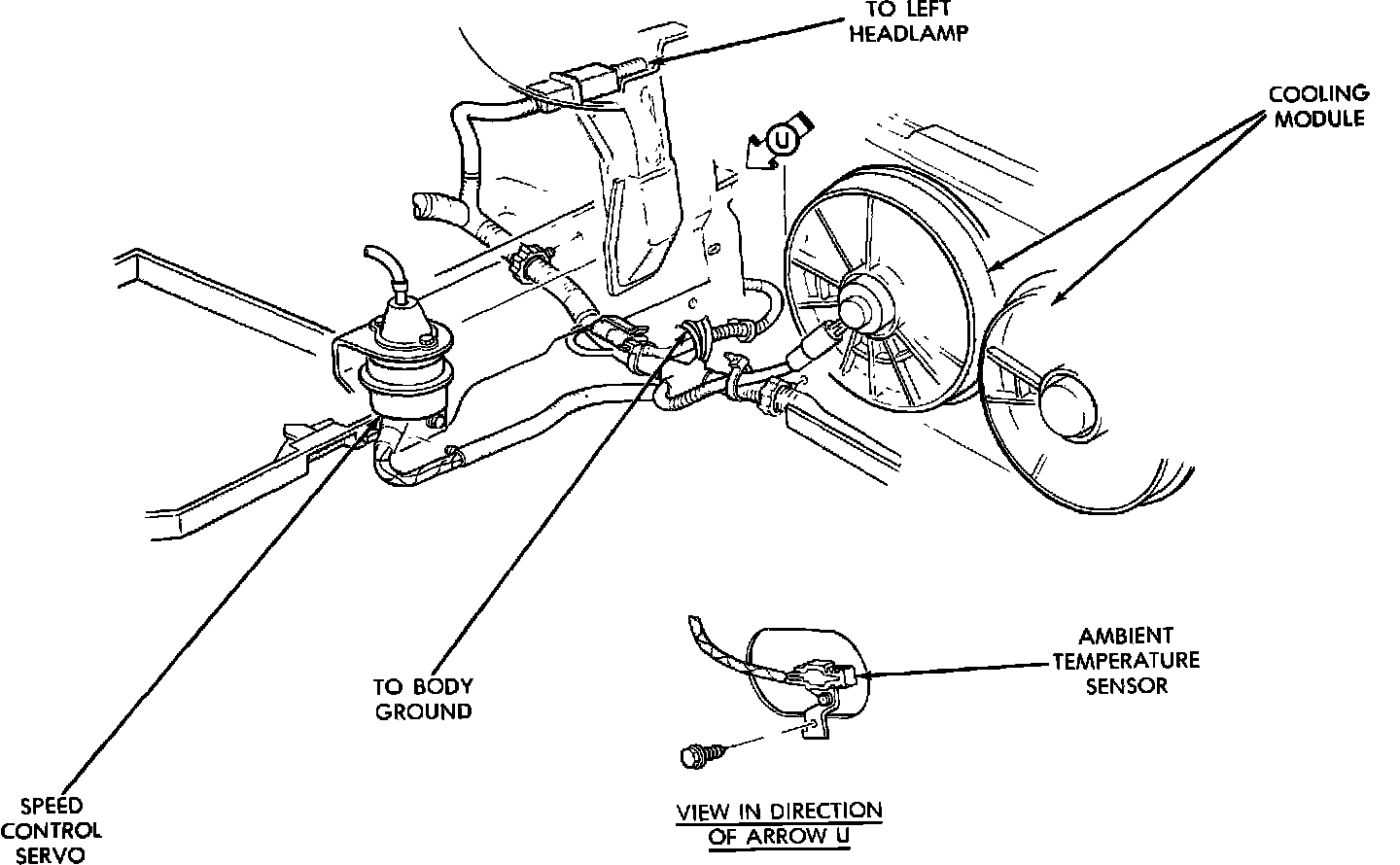

Engine Compartment Wiring:
