Operation CHARM
: Car repair manuals for everyone.
Home
>>
Eagle
>>
1993
>>
Summit L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Detailed Descriptions
>>
Transmission Control System
Transmission Control System

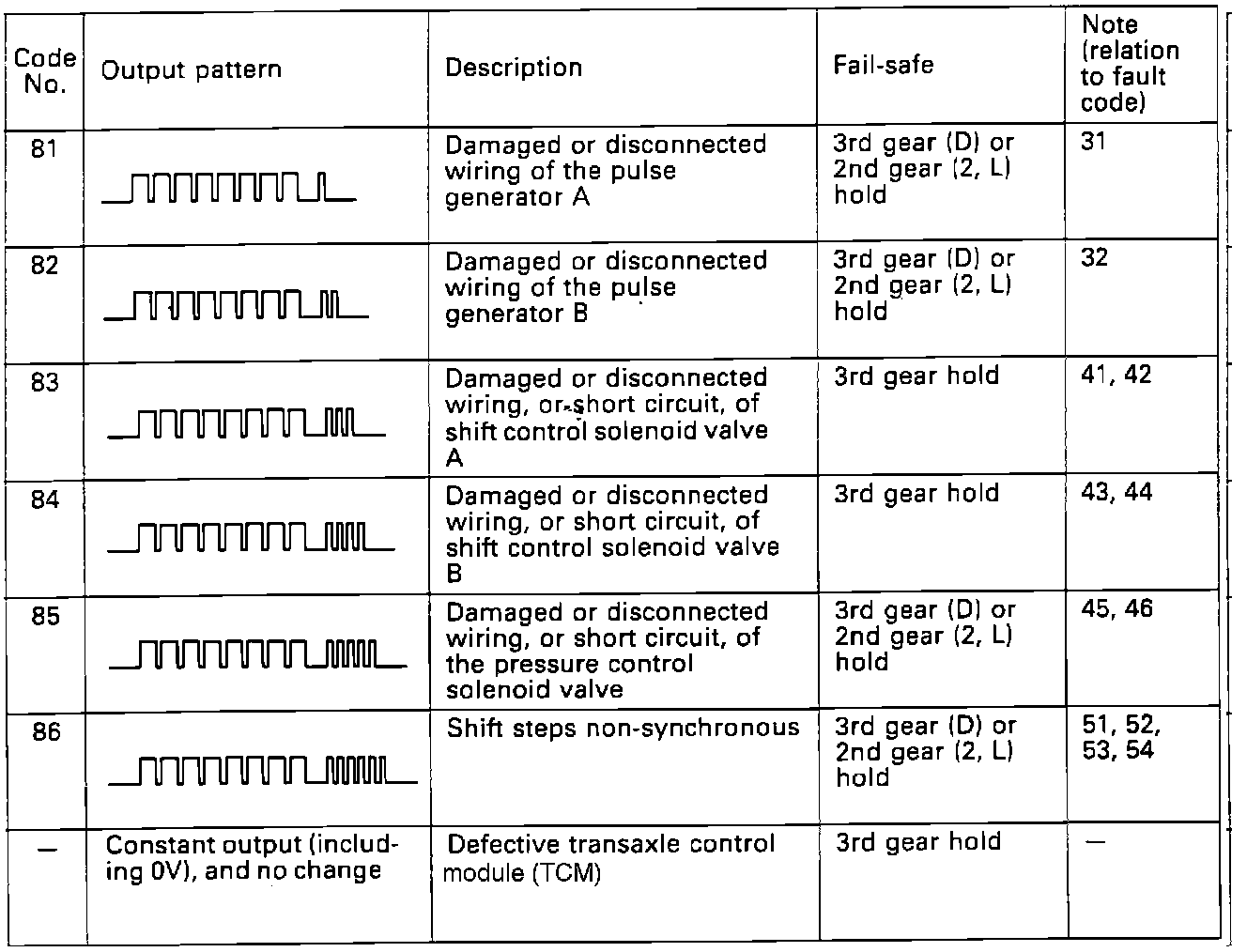

Fail Safe Functions (Codes 81-86):

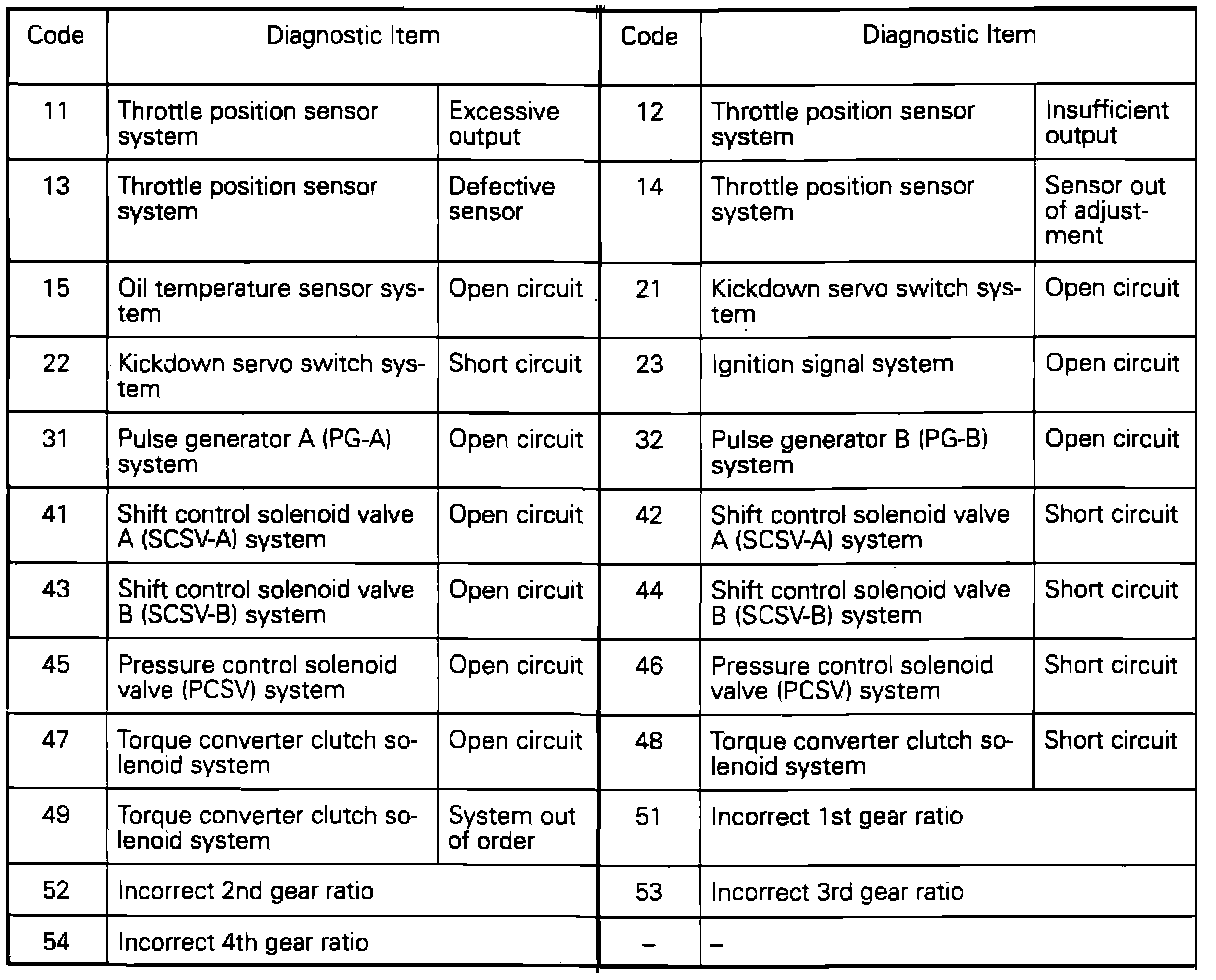

Fault Code Chart:

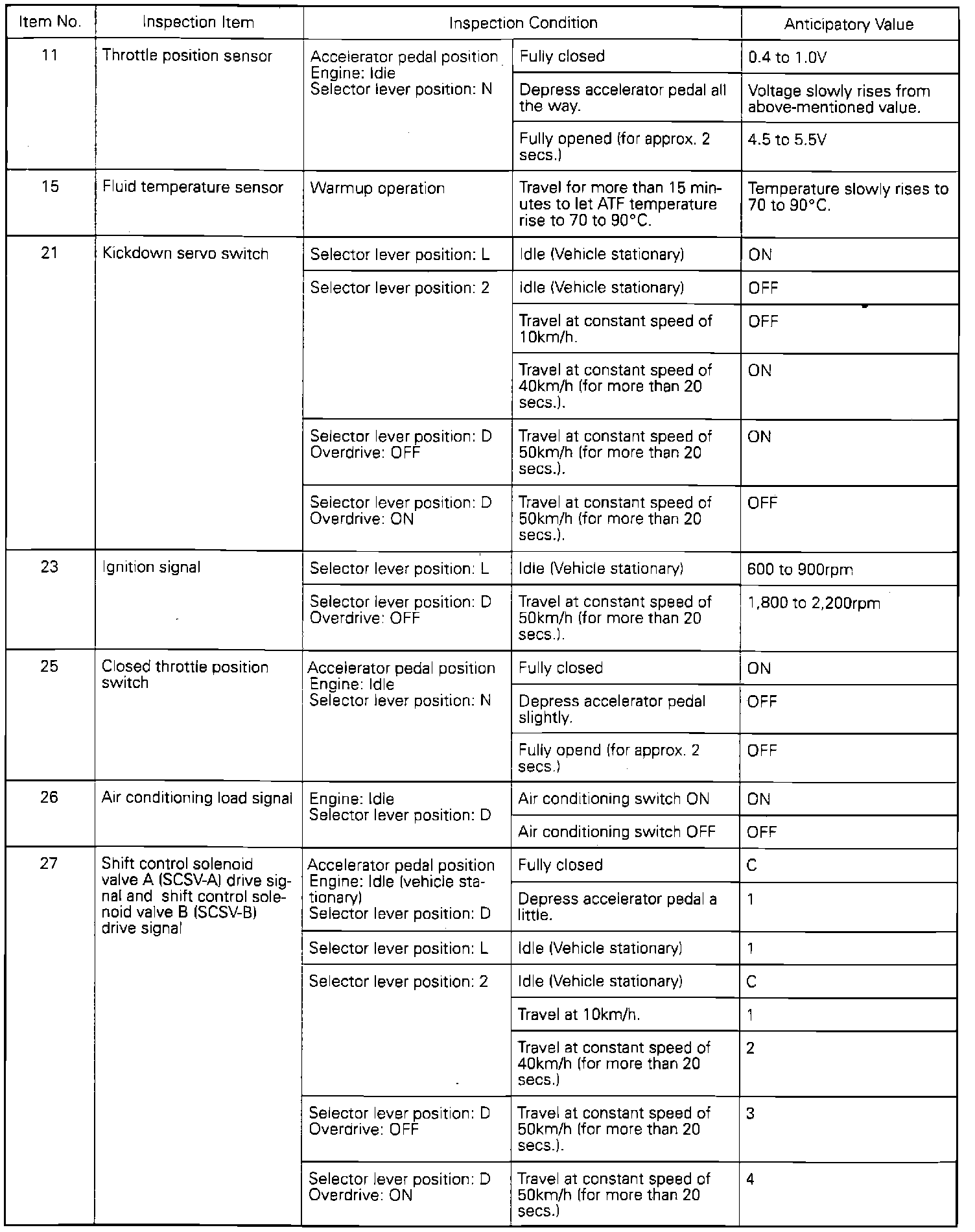

Fault Code Chart:

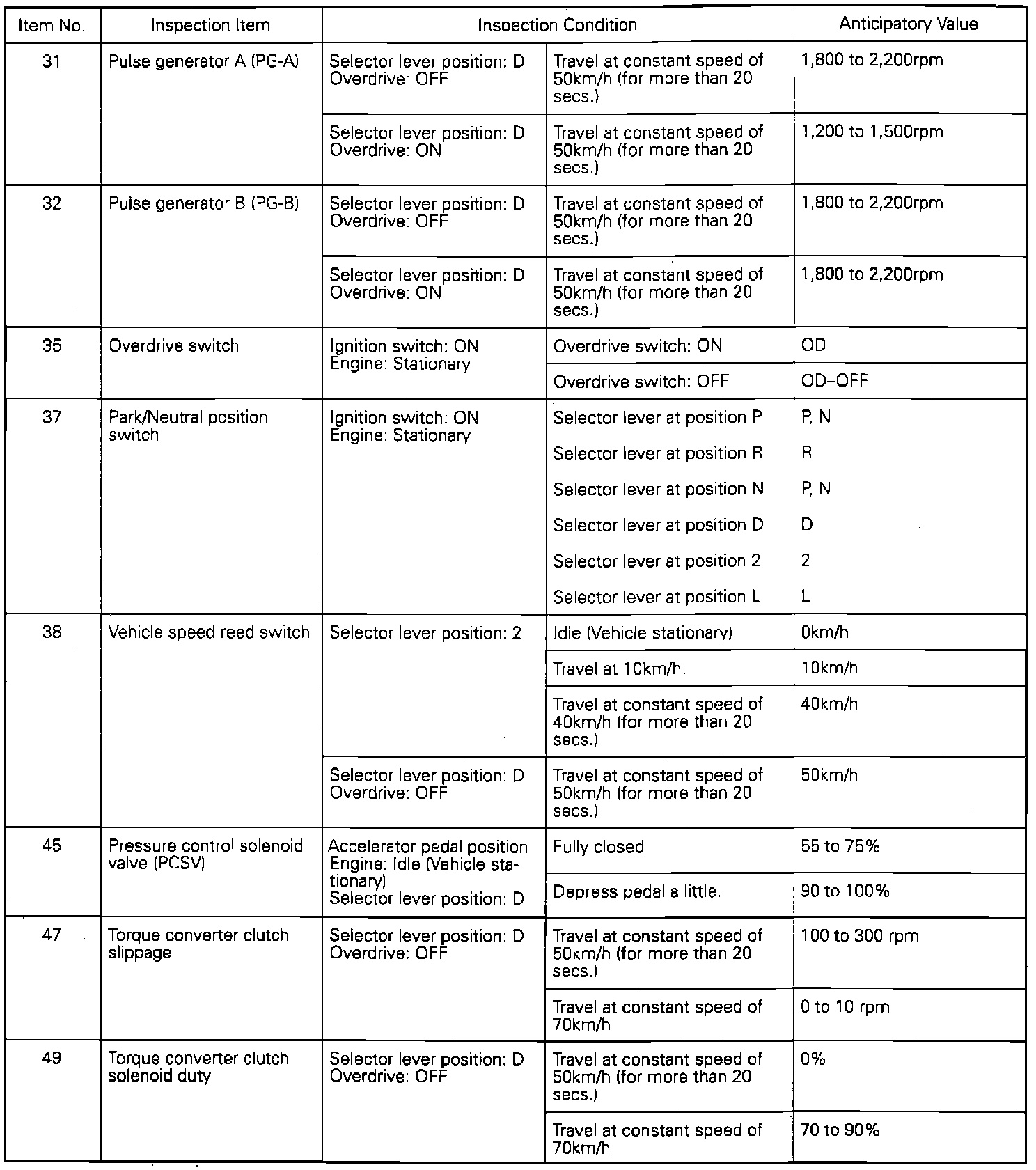

31-49:
