Heater Control Disassembly and Reassembly

DISASSEMBLY SERVICE POINT

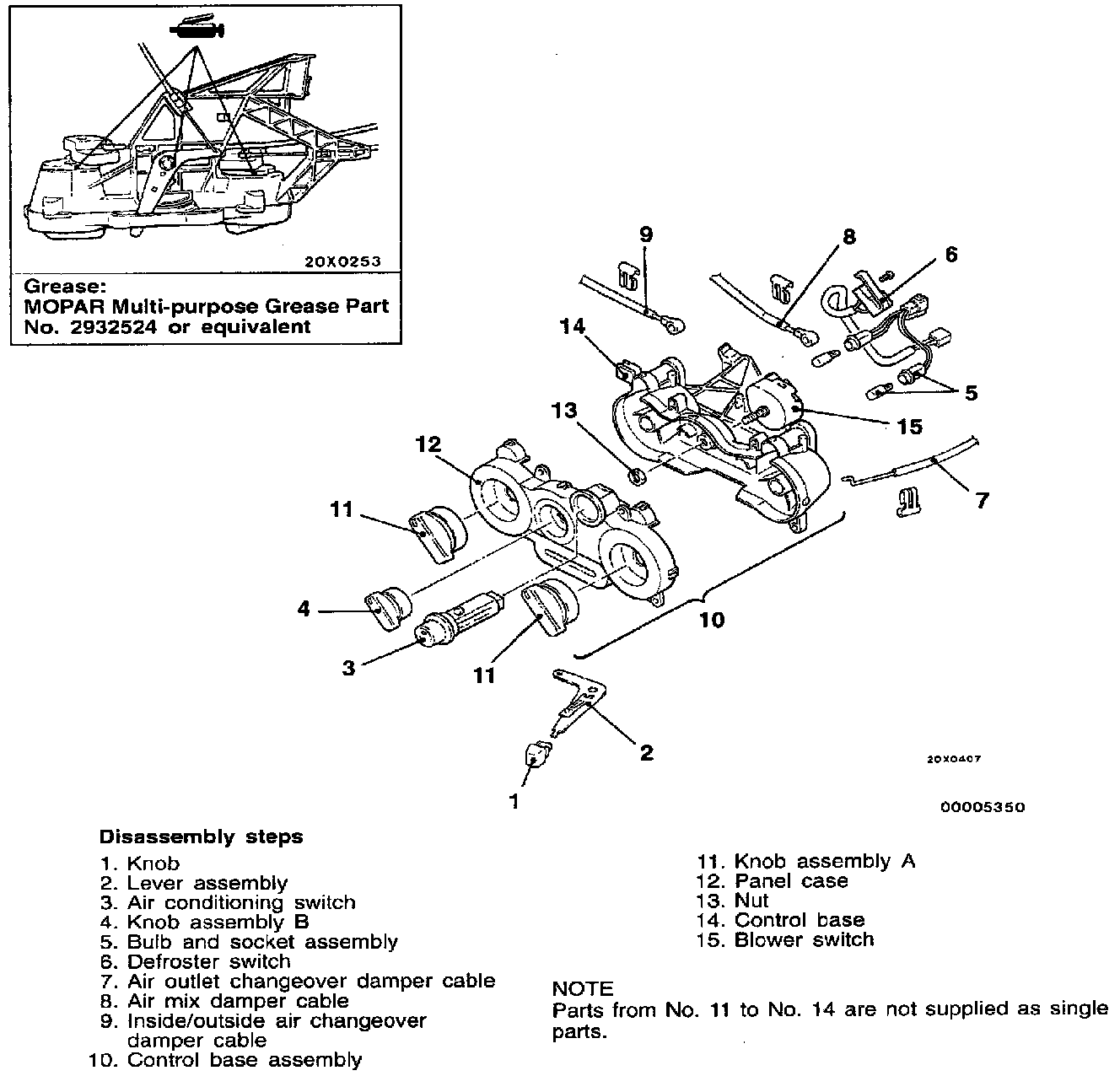

For disassembly follow steps in image noting the following:

Steps 6,7 & 8

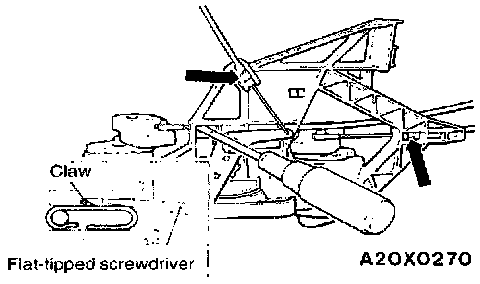

AIR OUTLET CHANGEOVER DAMPER CABLE/AIR MIXING DAMPER CABLE/INSIDE/OUTSIDE AIR CHANGEOVER DAMPER CABLE REMOVAL
Insert a flat-tipped screwdriver to disengage the claws, and then remove the cables.
