Catalyst Replacement

1. Disconnect check valve hose.

2. Raise truck on hoist.

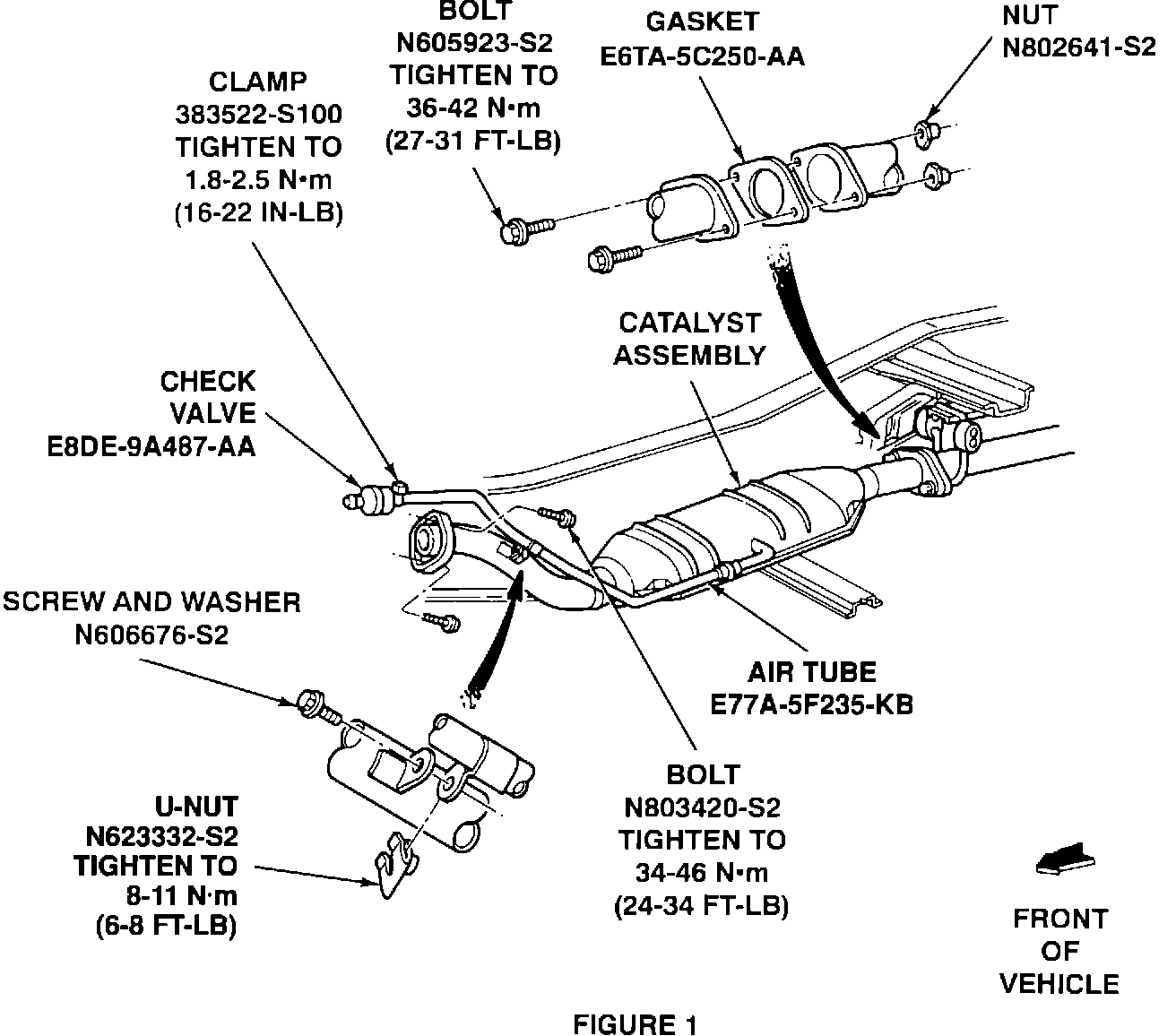

3. Refer to Figure 1. Remove catalyst and air tube.

4. Install new catalyst assembly, air tube and check valve.

5. Lower truck.

6. Connect check valve hose.
