Front

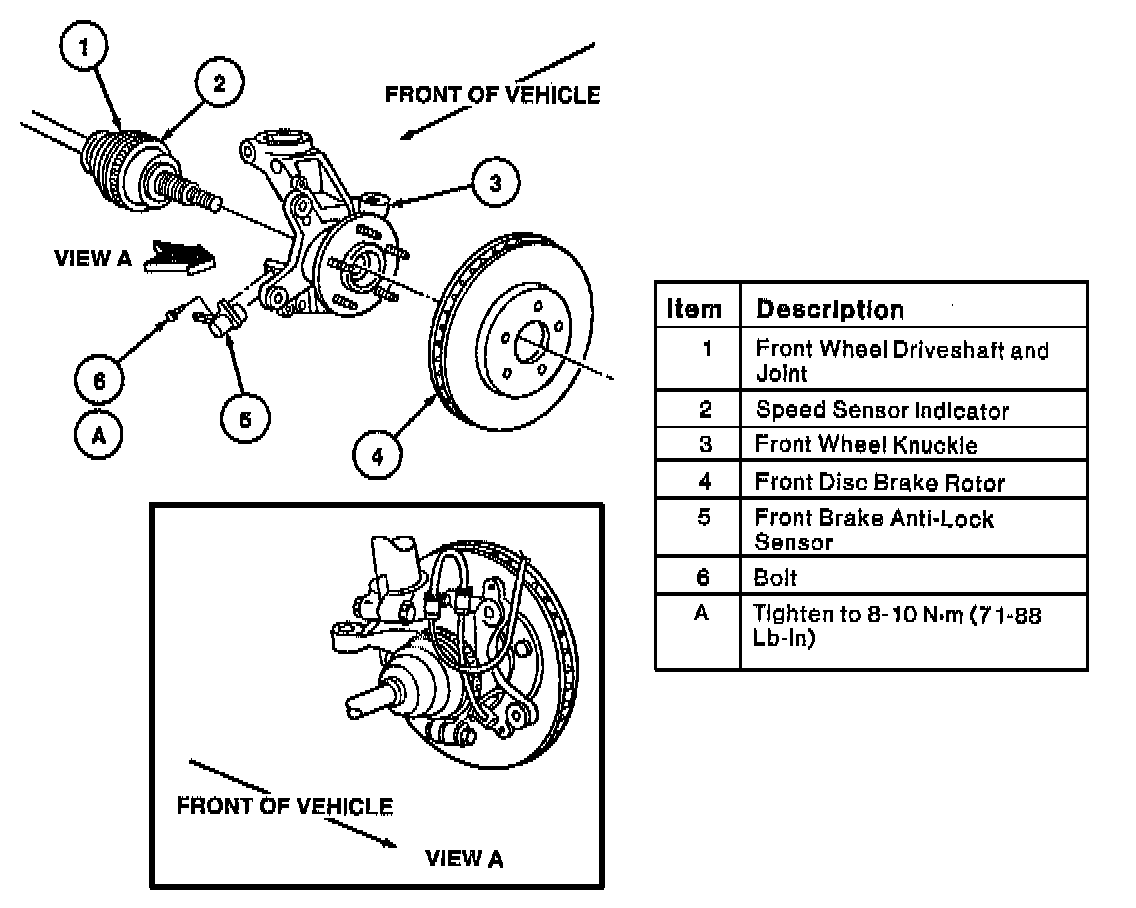

Front Brake Sensors:

REMOVAL

1. At front frame mounting location, disconnect sensor assembly two-pin connector from wiring harness.

2. Separate sensor cable from brake hose clips.

3. Remove sensor cable clip retaining bolt from front wheel knuckle.

4. Remove sensor retaining bolt from front wheel knuckle and slide front brake anti-lock sensor out of mating hole.

INSTALLATION

1. To install, reverse Removal procedure. Tighten front brake anti-lock sensor retaining bolt to 8-10 Nm (71-88 inch lbs.).
