Ford Truck
>>
1995
>>
Windstar V6-182 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C102
C102

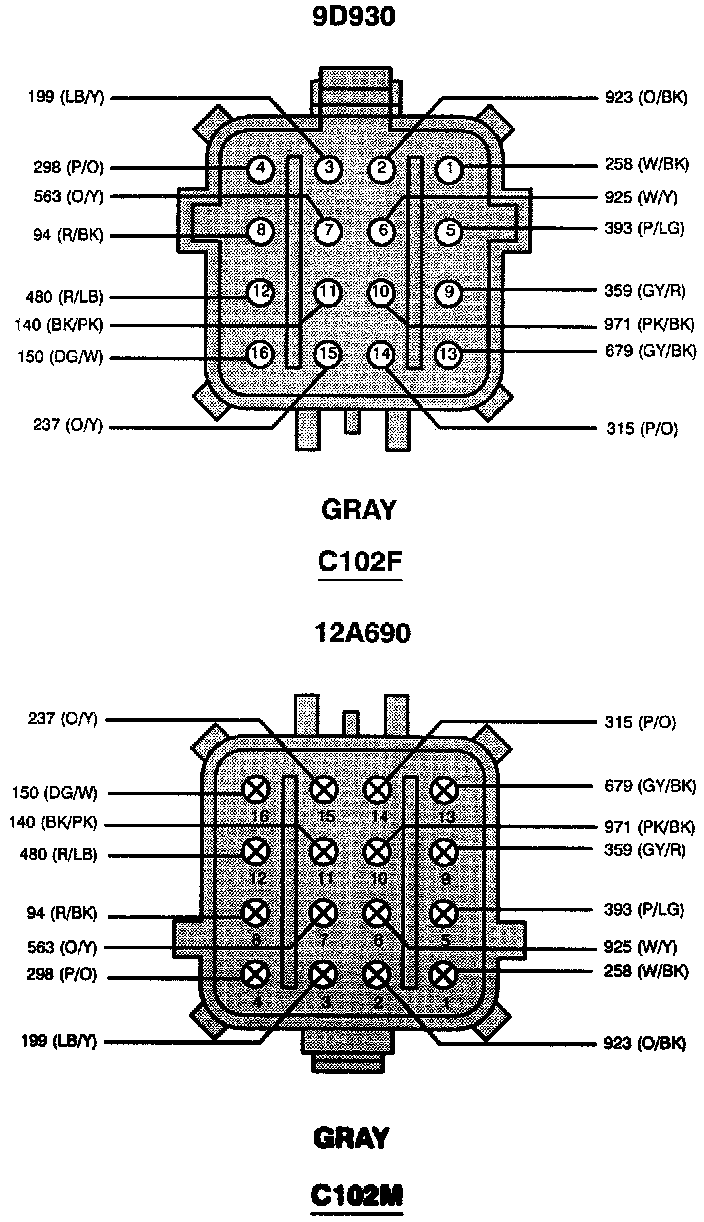

In-line Connector Faces (C102):
