Engine Controls

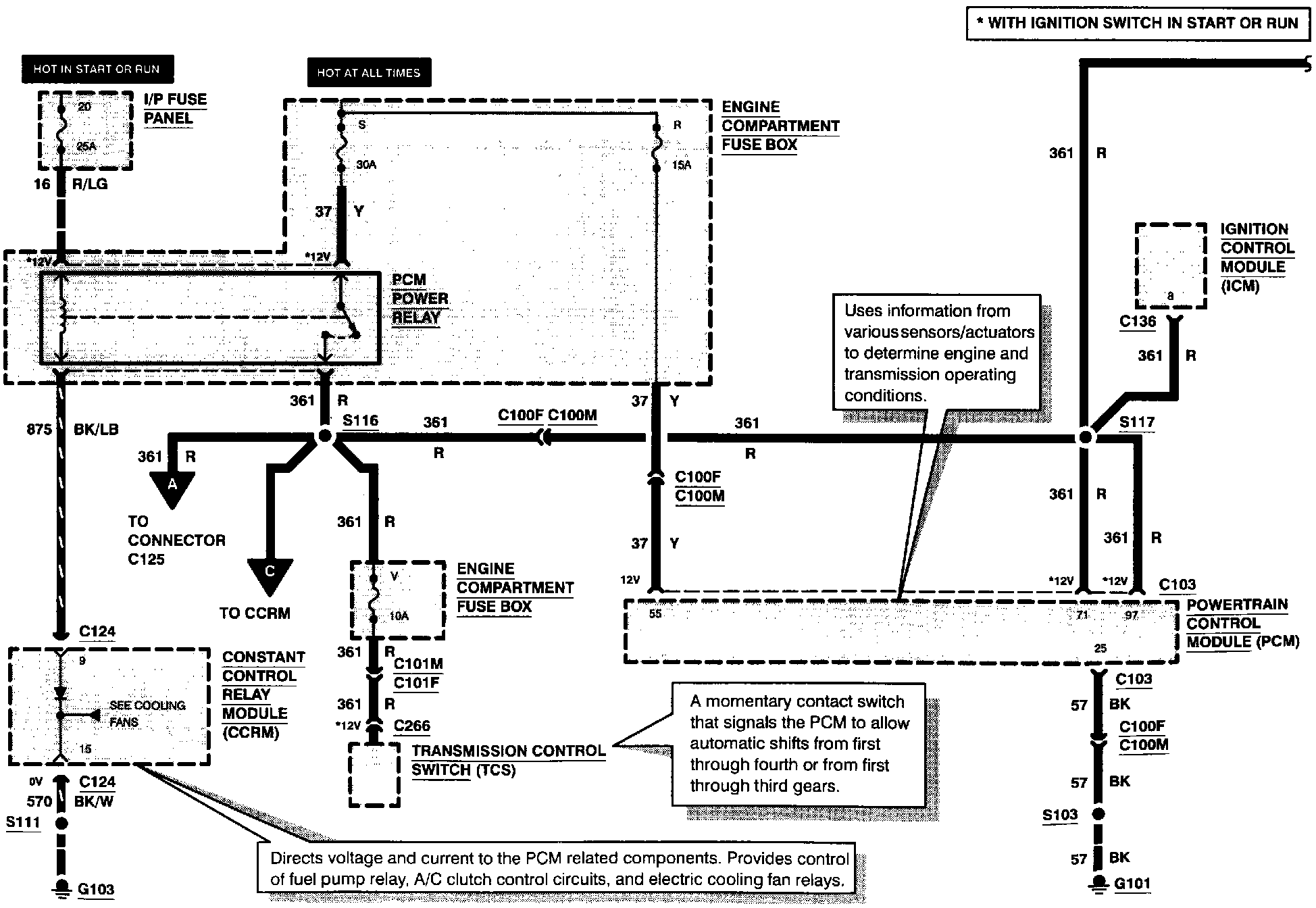

Electronic Engine Control (Part 1 Of 7):

PCM POWER RELAY

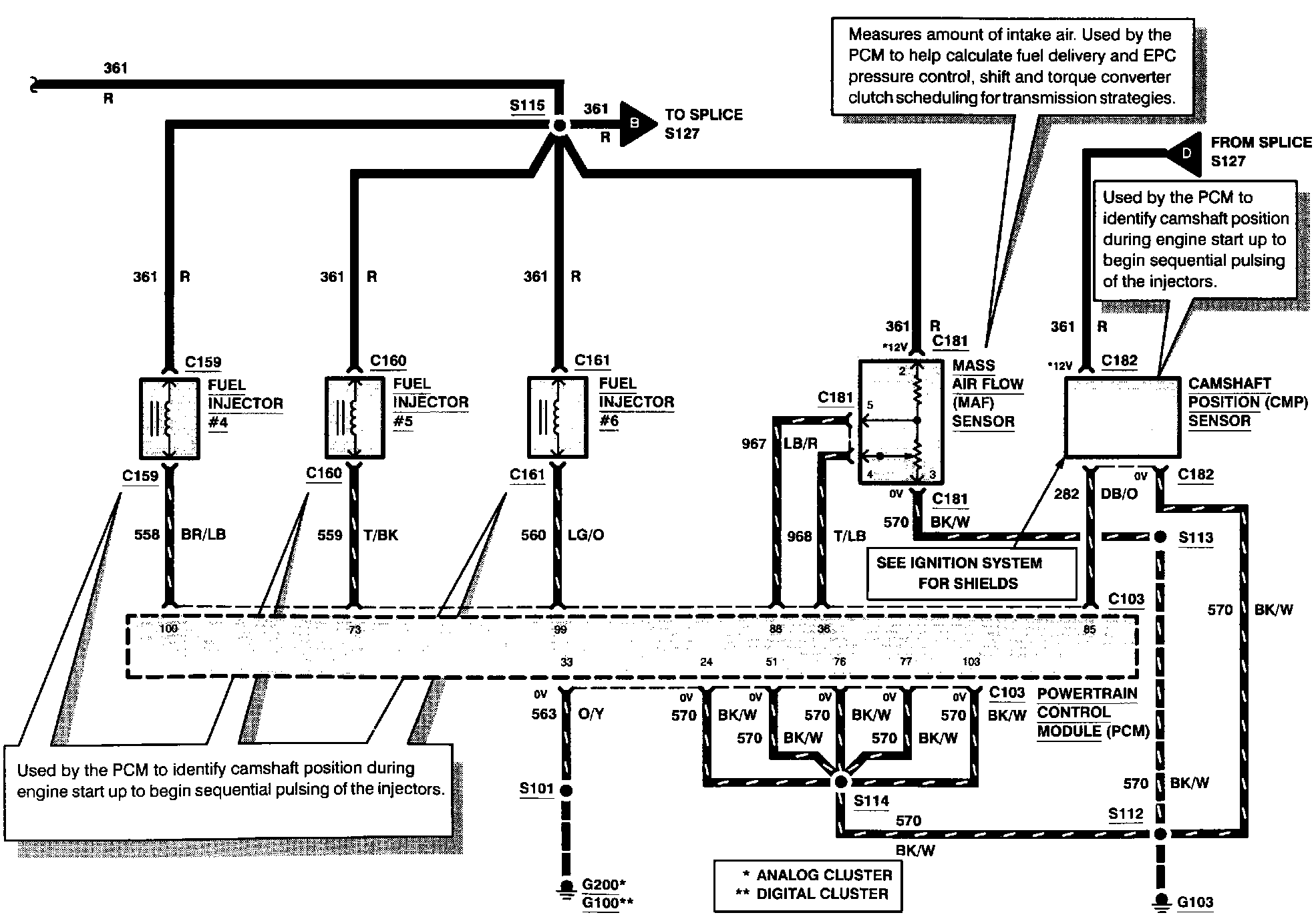

Electronic Engine Control (Part 2 Of 7):

CAMSHAFT POSITION SENSOR
FUEL INJECTORS
MASS AIR FLOW SENSOR

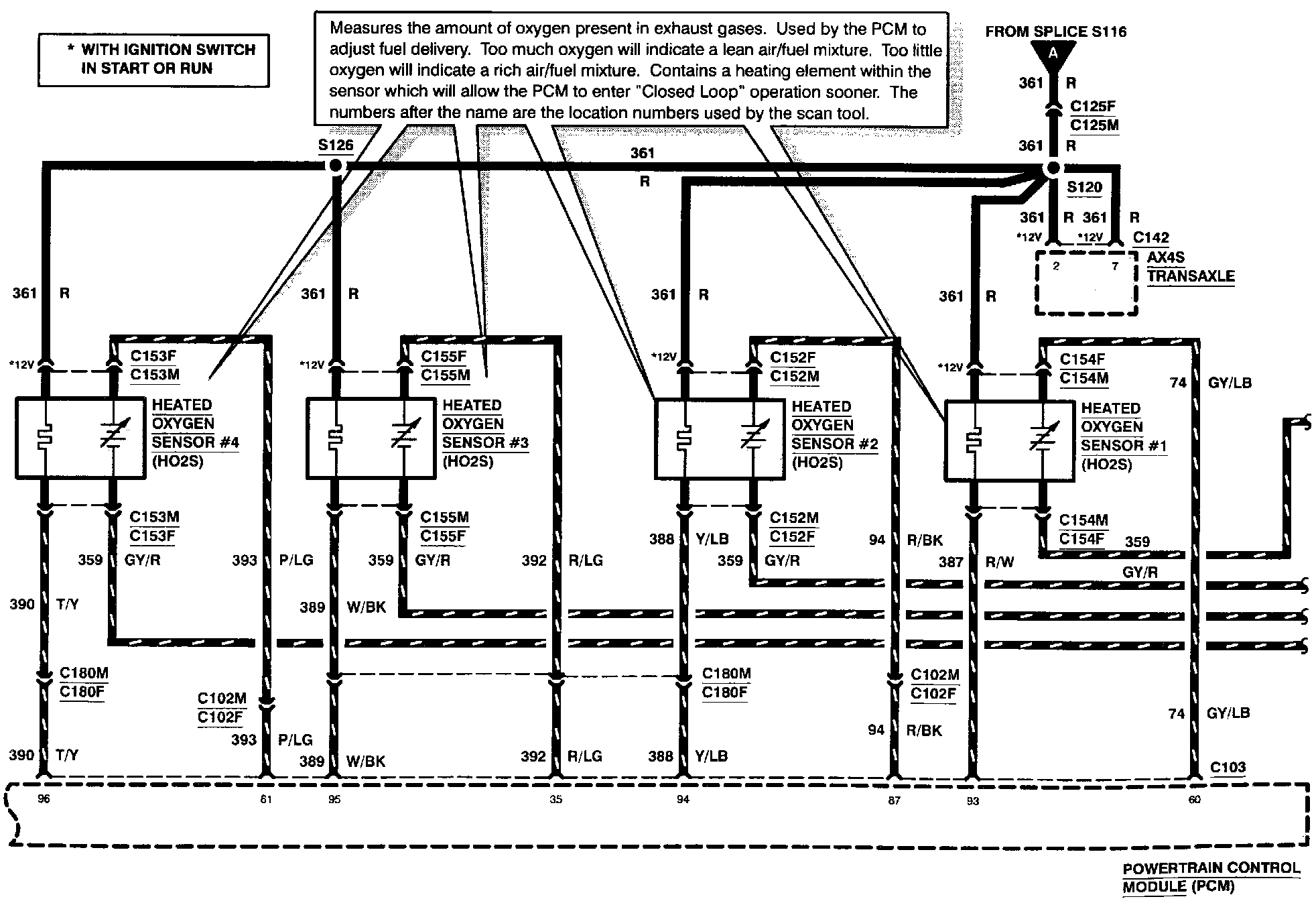

Electronic Engine Control (Part 3 Of 7):

HEATED OXYGEN SENSOR

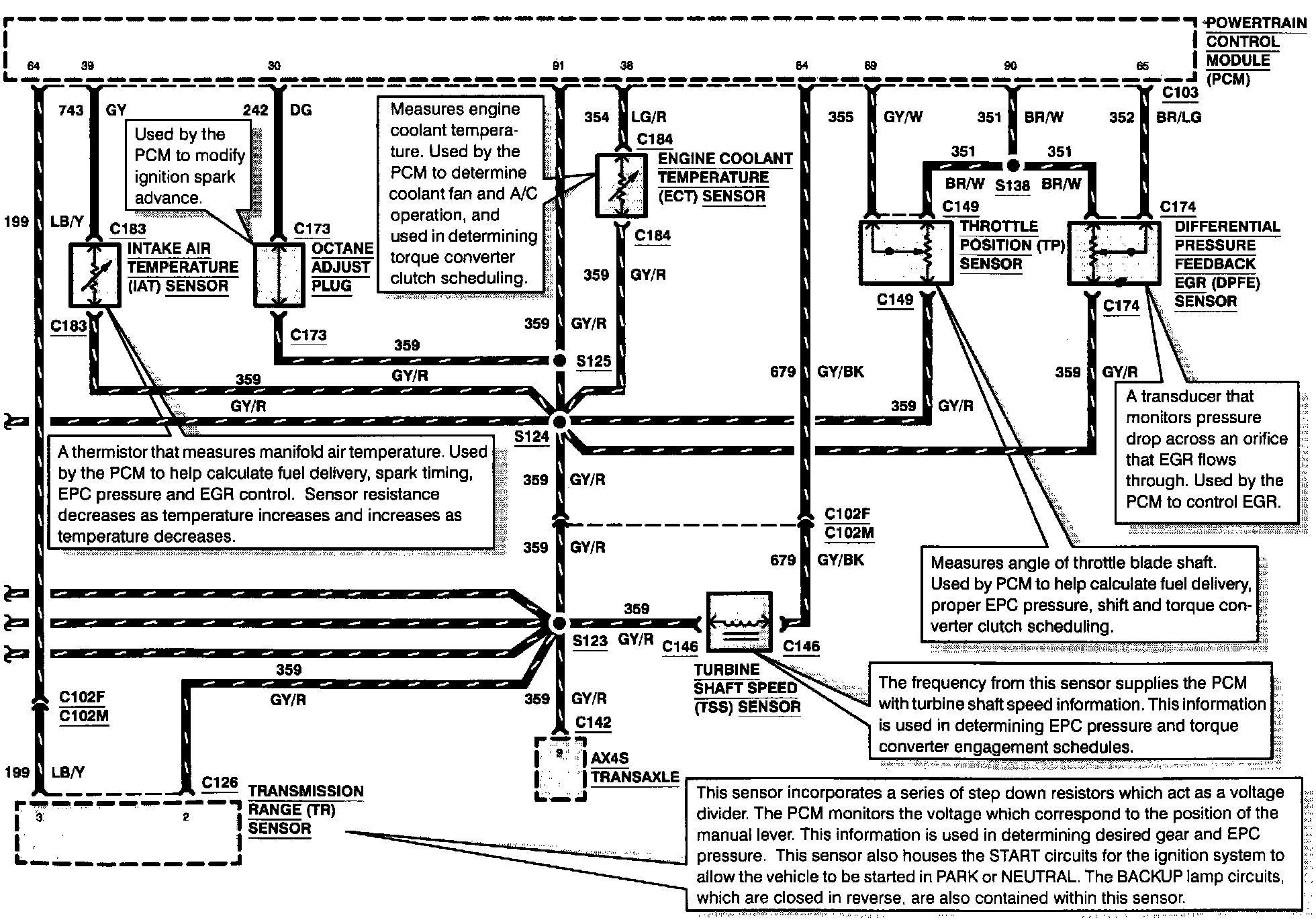

Electronic Engine Control (Part 4 Of 7):

DIFFERENTIAL PRESSURE FEEDBACK EGR SENSOR
ENGINE COOLANT TEMPERATURE SENSOR
INTAKE AIR TEMPERATURE SENSOR
OCTANE ADJUST PLUG
THROTTLE POSITION SENSOR
TURBINE SHAFT SPEED SENSOR

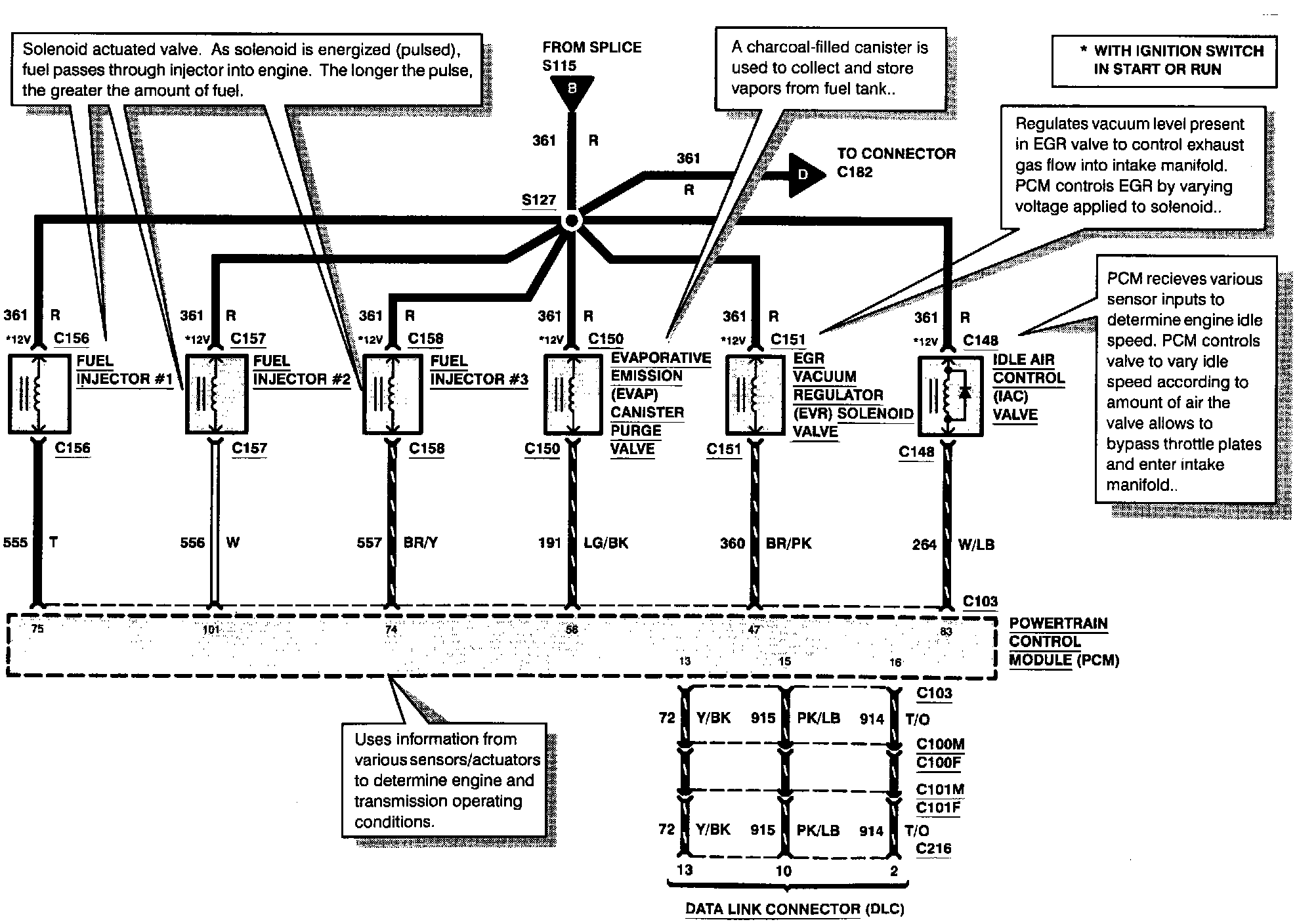

Electronic Engine Control (Part 5 Of 7):

EGR ELECTRONIC REGULATOR SOLENOID VALVE
EVAPORATIVE EMISSION CANISTER PURGE VALVE
FUEL INJECTORS
IDLE AIR CONTROL VALVE

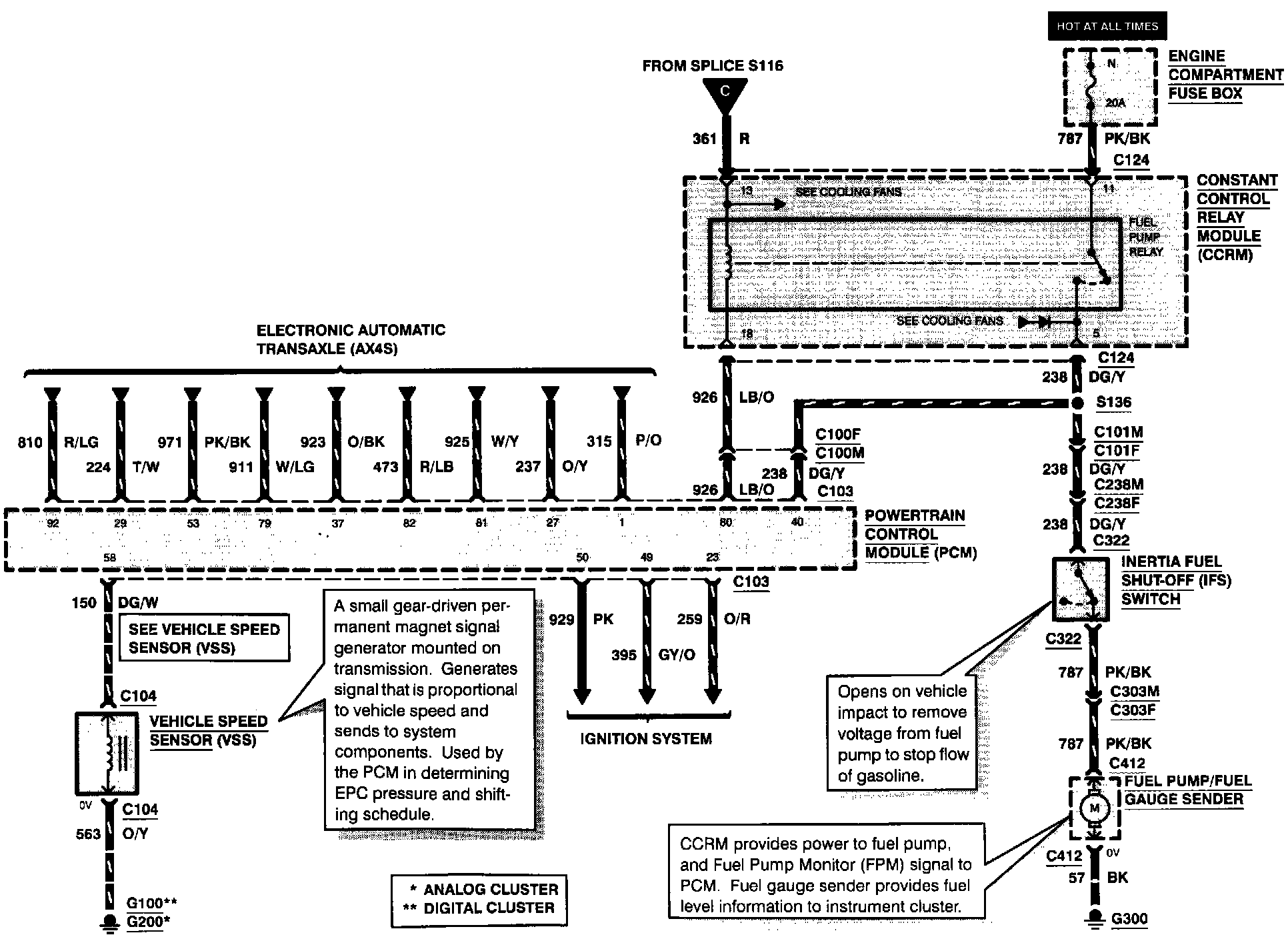

Electronic Engine Control (Part 6 Of 7):

FUEL PUMP/FUEL GAUGE SENDER
INERTIA FUEL SHUT-OFF SWITCH
VEHICLE SPEED SENSOR

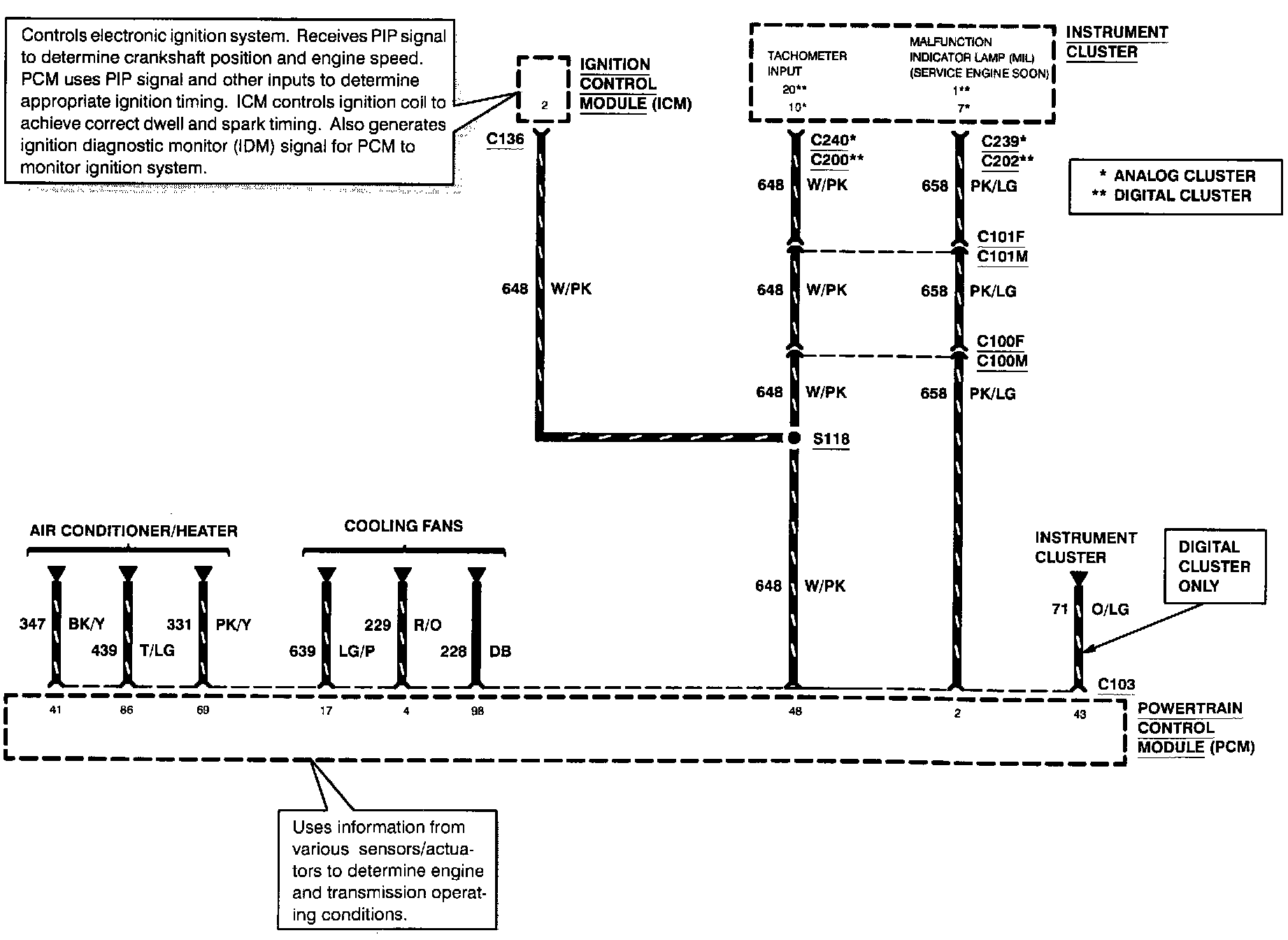

Electronic Engine Control (Part 7 Of 7):
