Conventional Instrument Cluster Connector C2
Conventional Instrument Cluster Connector C2

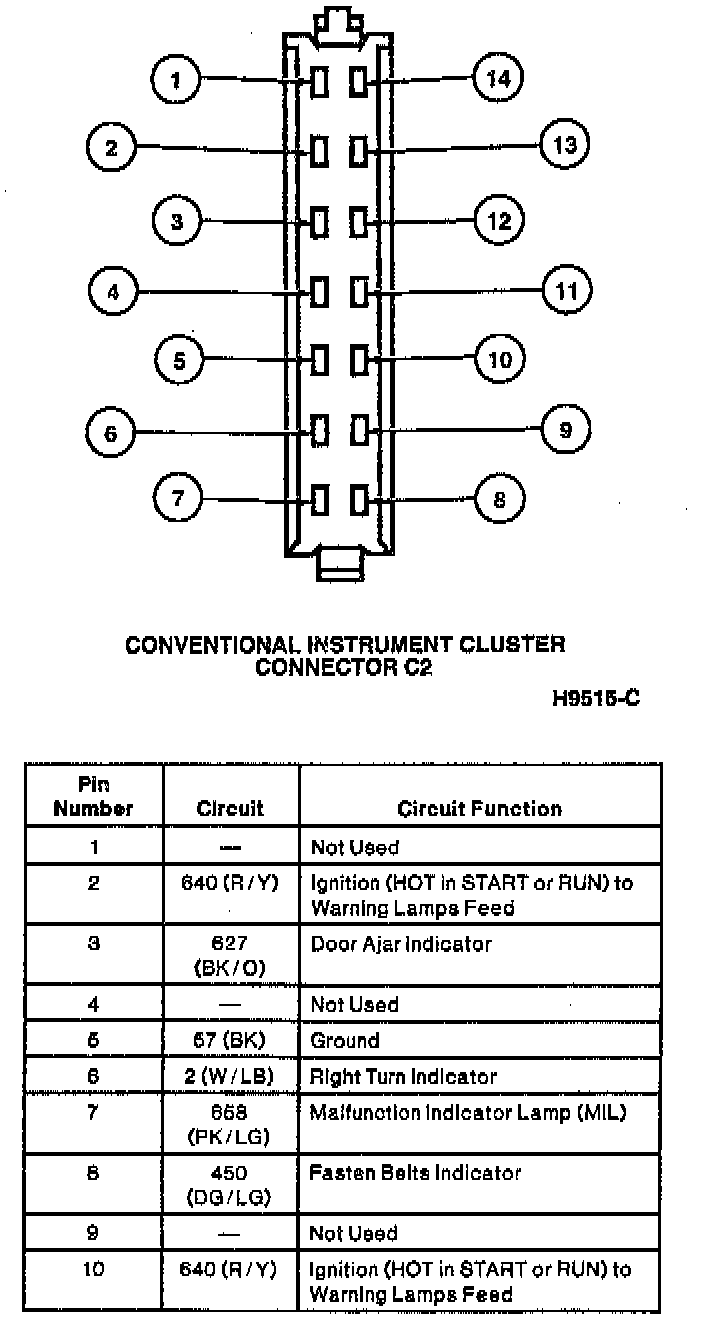

Conventional Instrument Cluster Connector C2 (Part 1 Of 2):

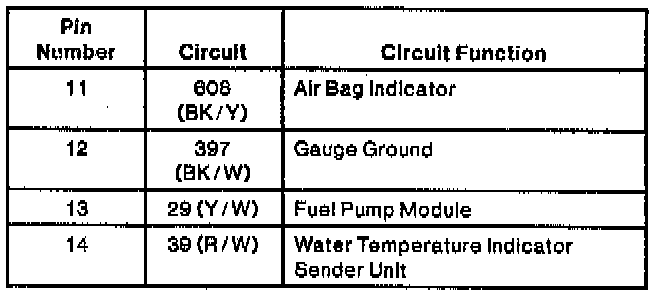

Conventional Instrument Cluster Connector C2 (Part 2 Of 2):
