Test G

PINPOINT TEST G: NO STANDARD CORPORATE PROTOCOL (SCP) MODULE/NETWORK COMMUNICATION

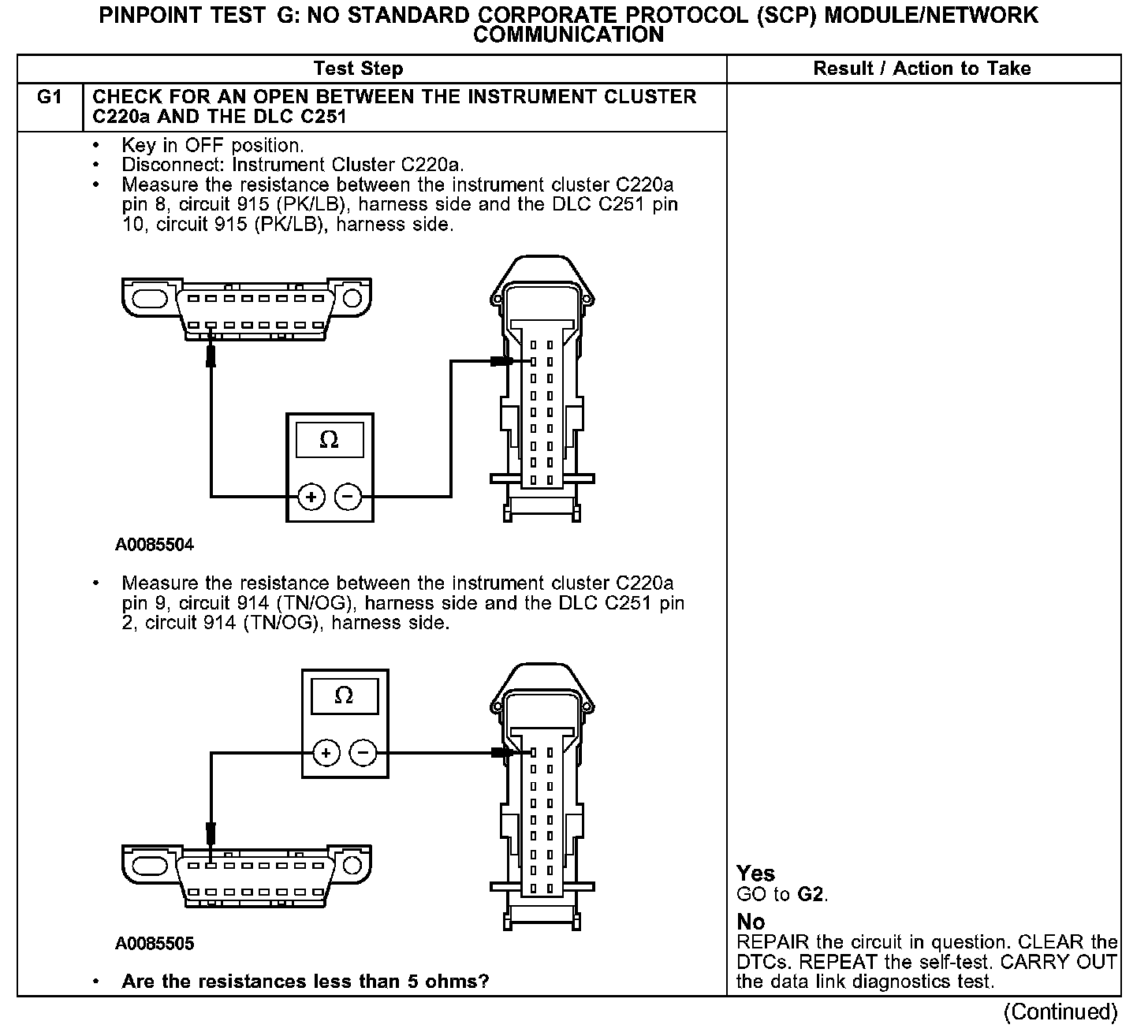

Test G1:

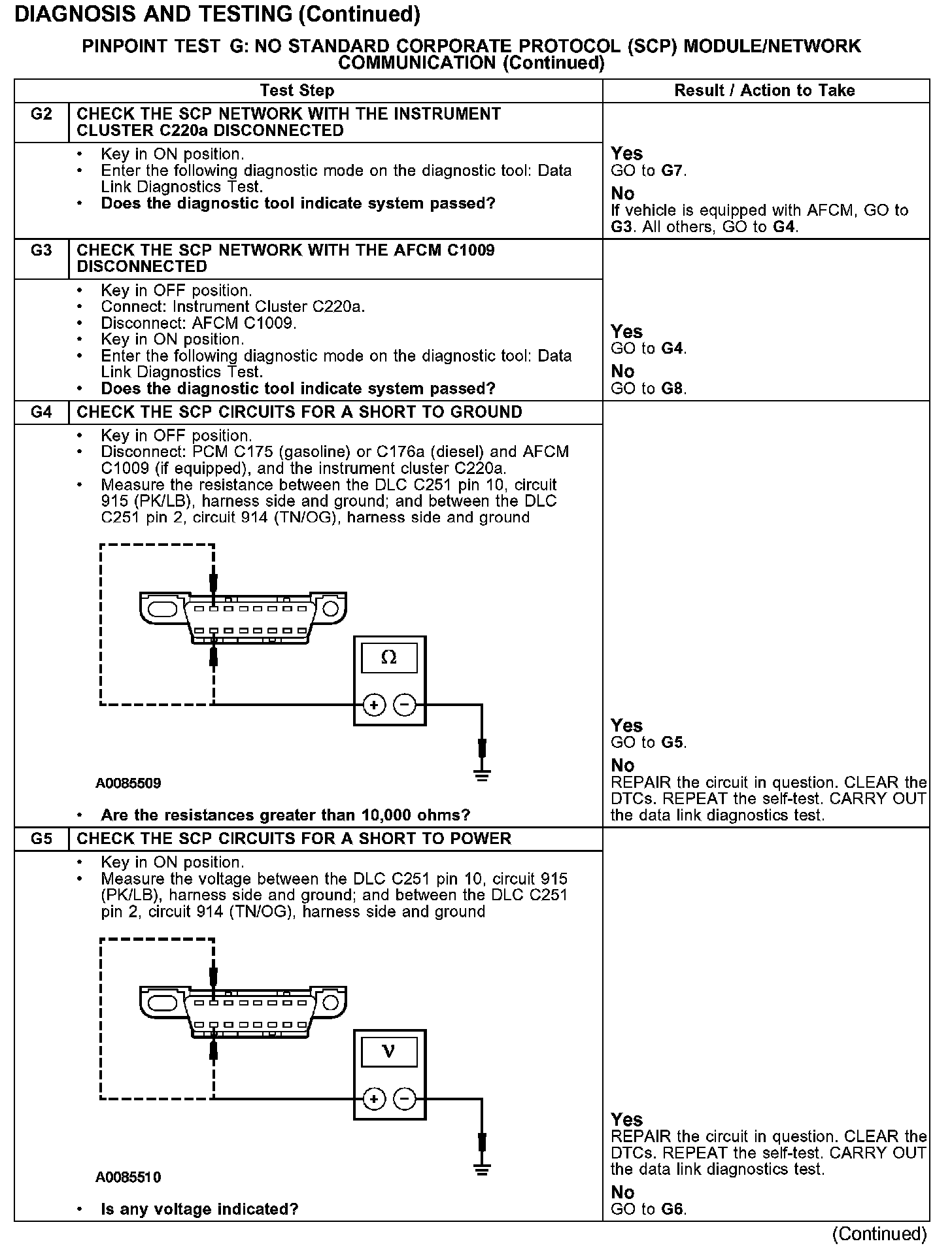

Test G2-G5:

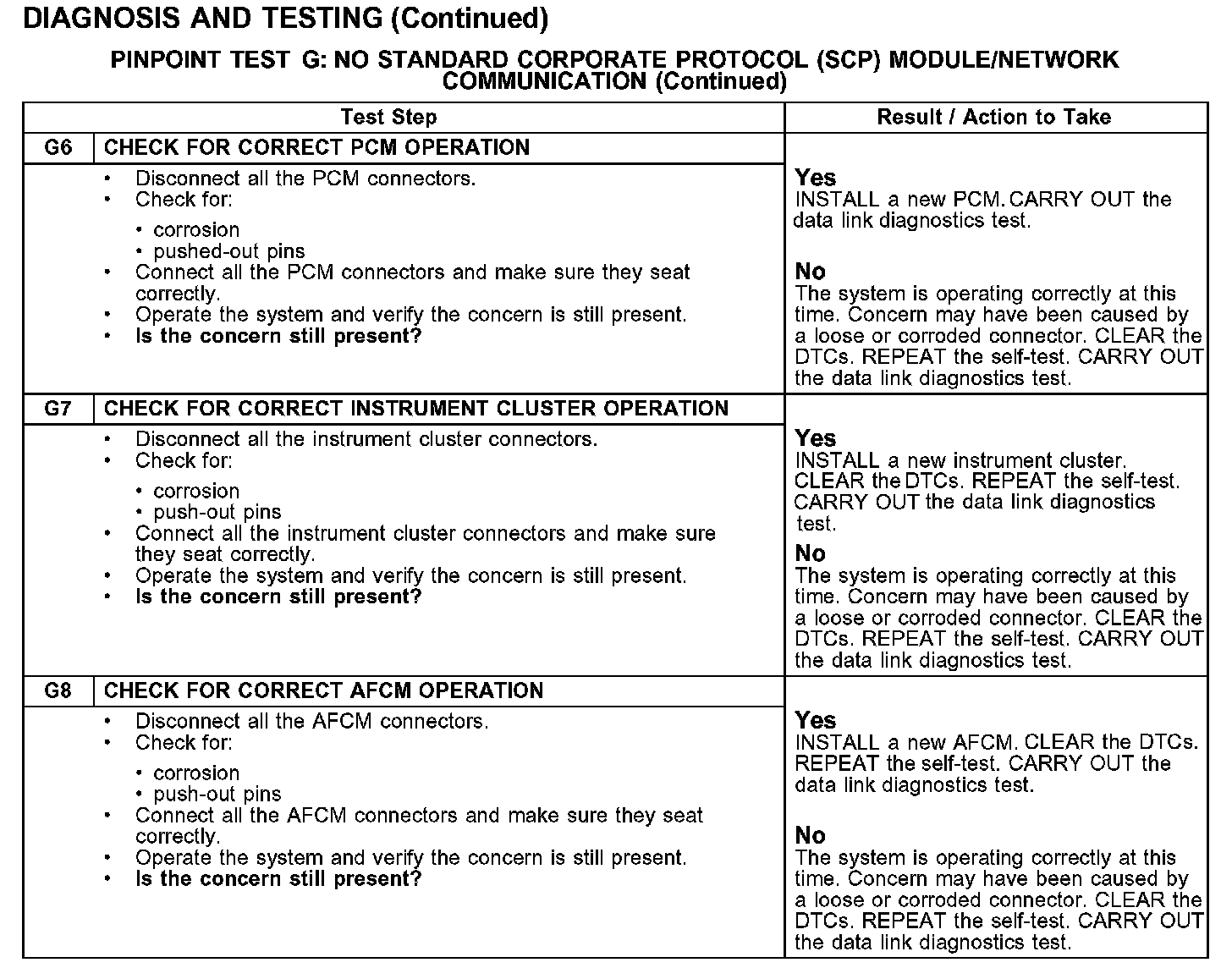

Test G6-G8:
