Register - Overhead A/C

REGISTER - OVERHEAD A/C

Removal and Installation

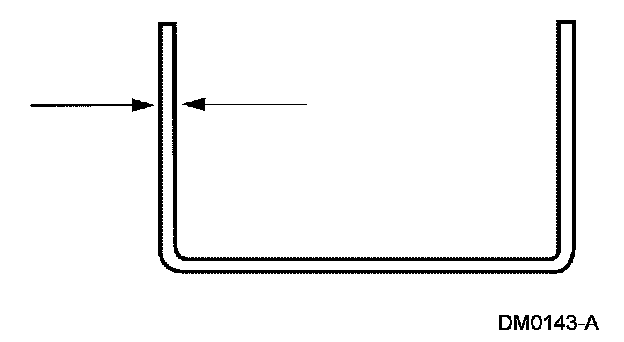

1. Fabricate a removal tool from a 1/8 inch diameter rod.

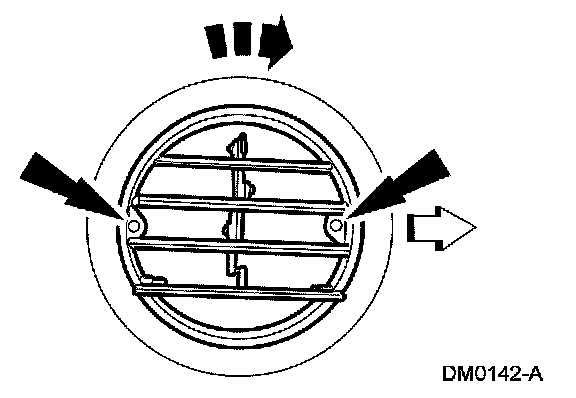

2. Rotate the register with the removal tool and remove the register.
3. To install, reverse the removal procedure.
