Ranger 2WD V6-4.0L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
Diagnostic Trouble Code Descriptions
Locks, Latches and Entry Systems

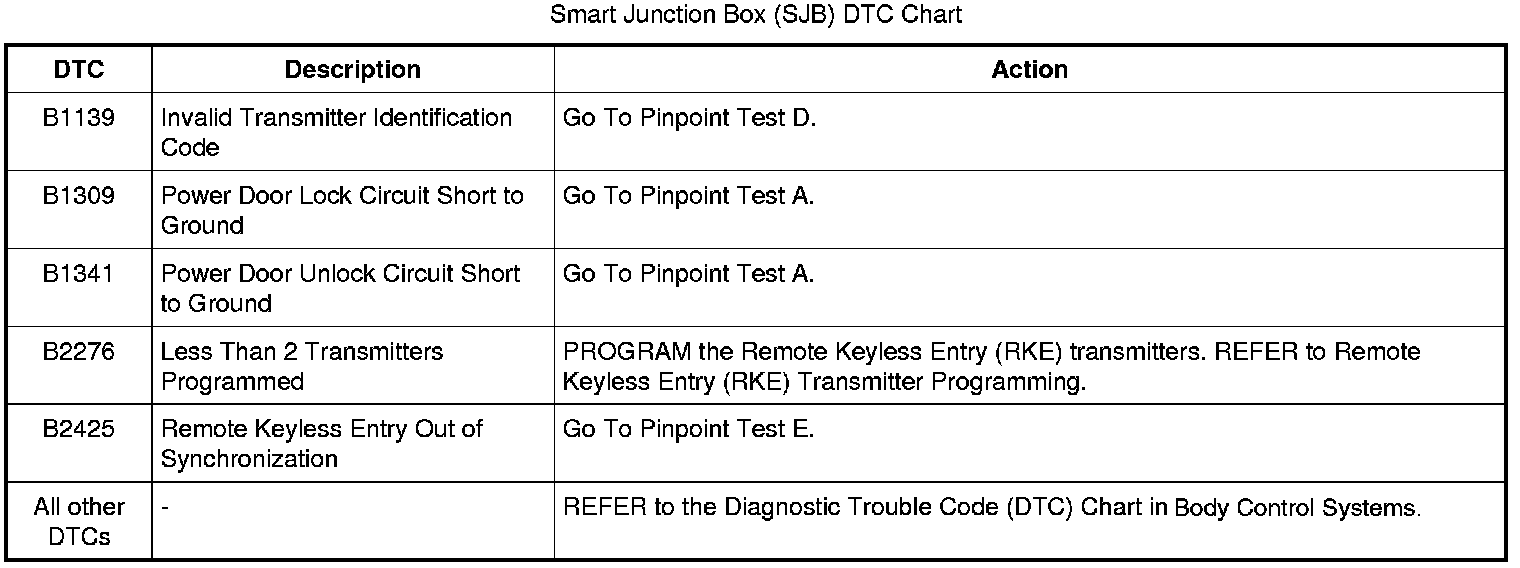

DTC Chart
B1139-B2425:
