Exterior Mirrors - Exploded View

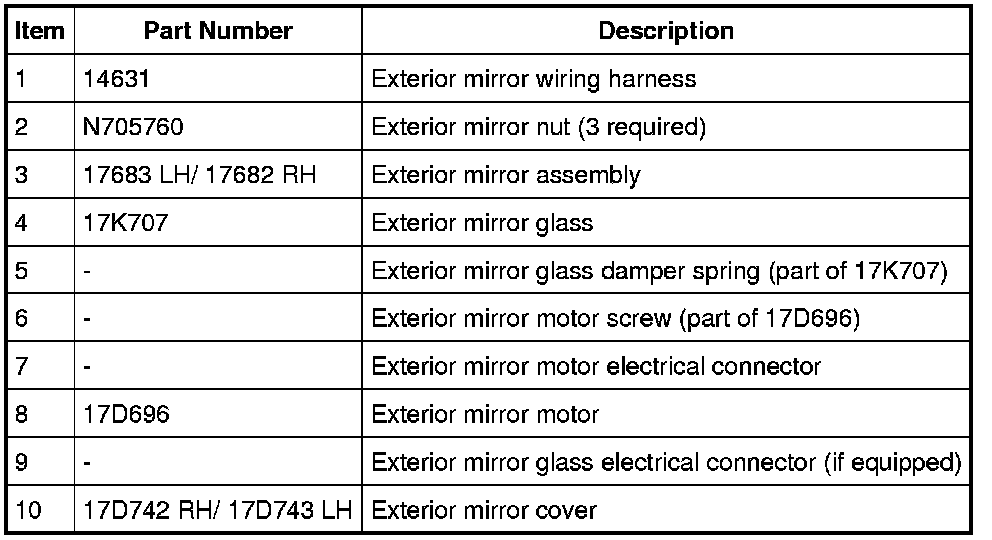

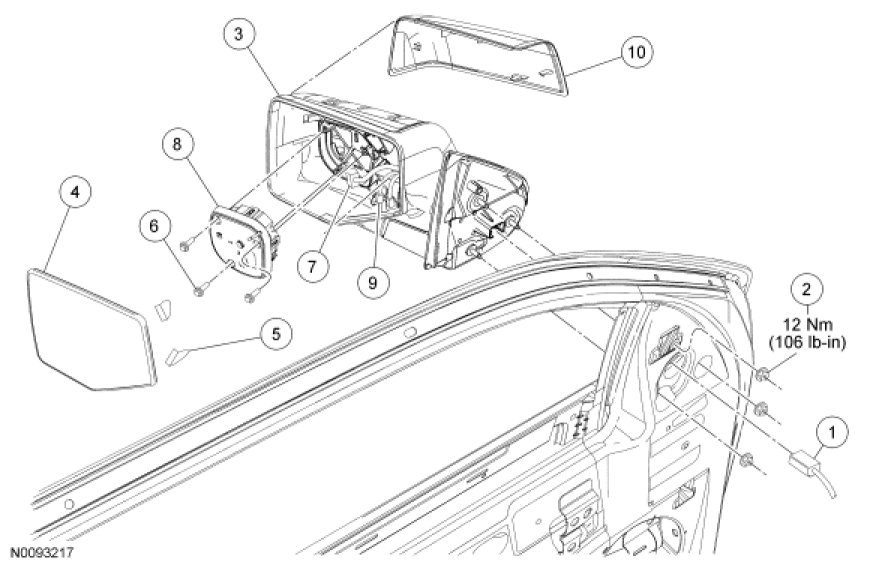

Exterior Mirrors - Exploded View

NOTE: LH mirror shown, RH mirror similar.










1. For additional information, refer to the procedures.
