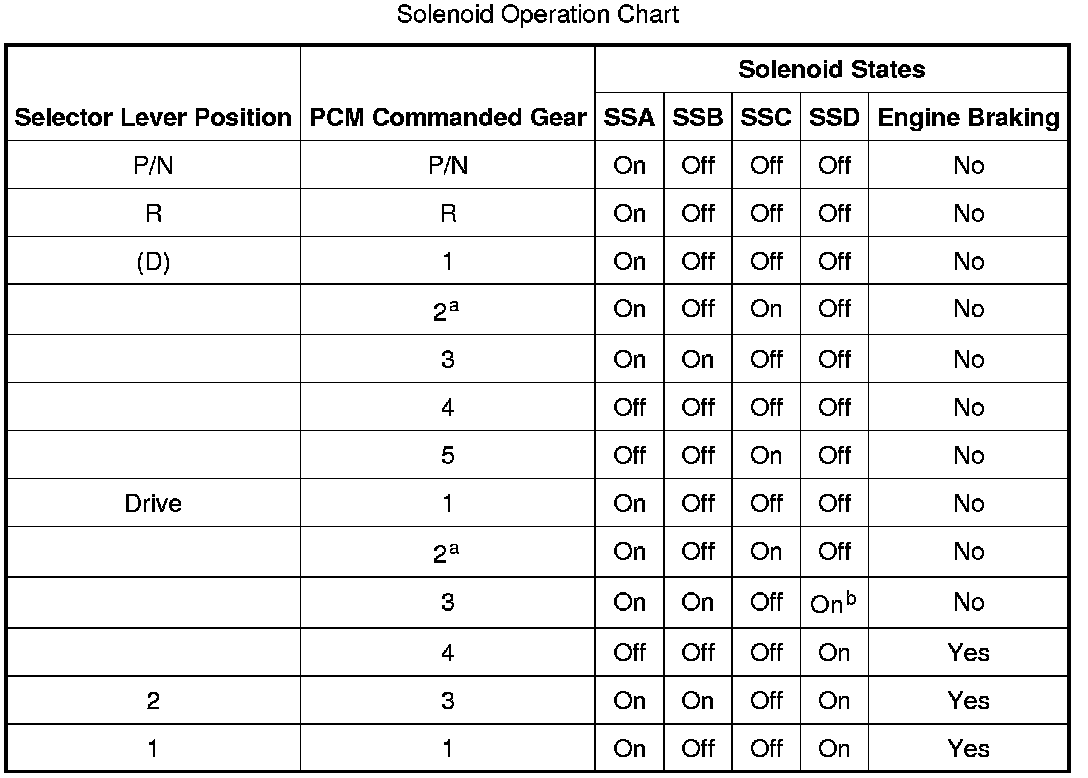

Solenoid Operation Chart
Solenoid Operation Chart
Solenoid Operation Chart:
a PCM Controlled
b On time calibration dependent
