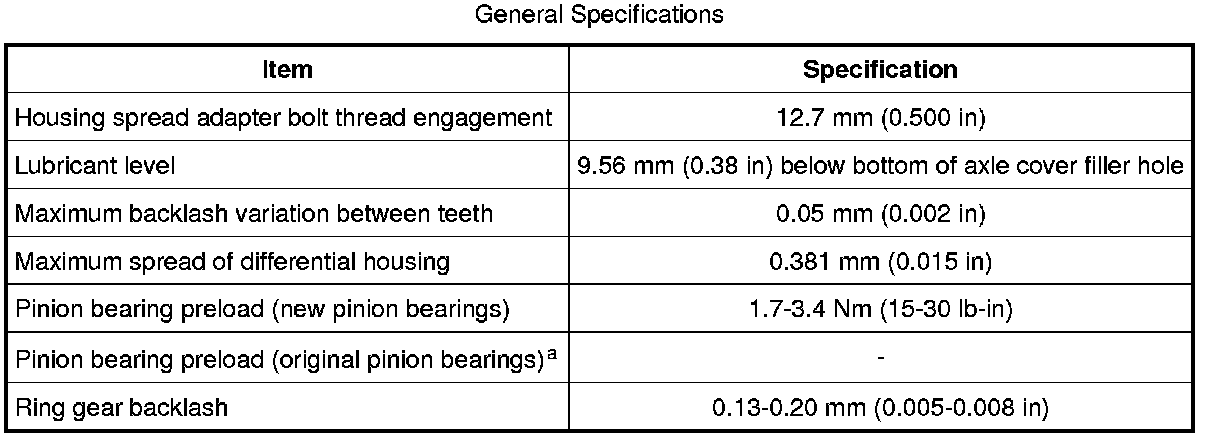

General Specifications








a The reading must be 0.56 Nm (5 lb-in) more than the initial reading taken during disassembly.
