Intermediate Shaft Speed Sensor

5R44E and 5R55E

Intermediate Shaft Speed Sensor

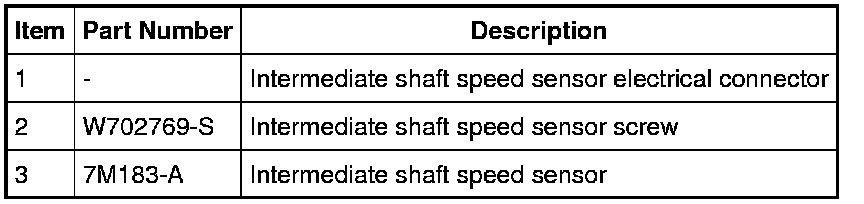

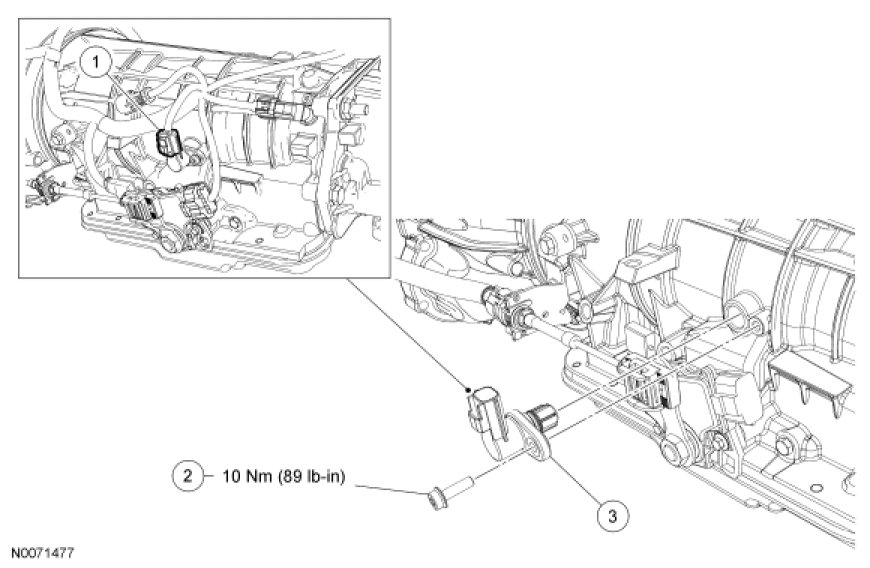

Intermediate Shaft Speed Sensor









Removal

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Disconnect the intermediate shaft speed sensor electrical connector.

3. Remove the intermediate shaft speed sensor screw.

4. Remove the intermediate shaft speed sensor from the transmission.

Installation

1. NOTE: Inspect the intermediate shaft speed sensor O-ring for damage. If damaged, install a new O-ring.

Inspect and lubricate the O-ring with petroleum jelly.

Install the intermediate shaft speed sensor into the transmission.

2. Install the intermediate shaft speed sensor screw.
- Tighten to 10 Nm (89 lb-in).

3. Connect the intermediate shaft speed sensor electrical connector.

4. Lower the vehicle.
