Removal and Replacement

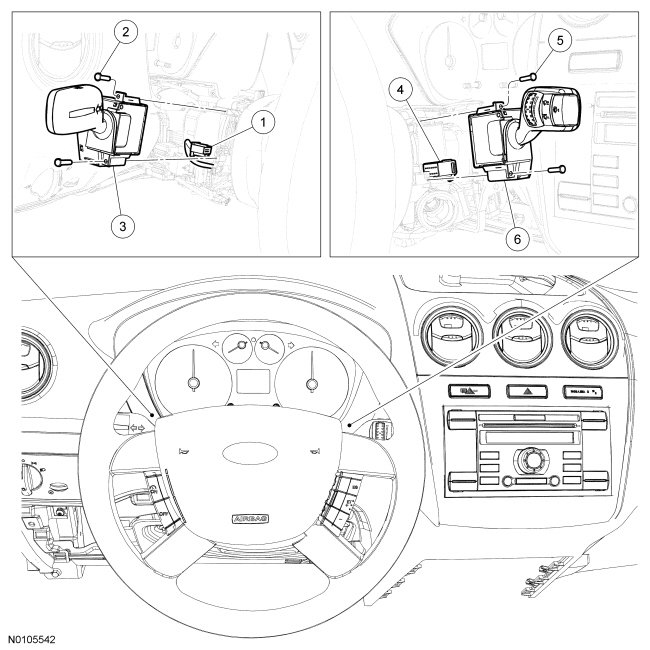

Steering Column Multifunction Switch

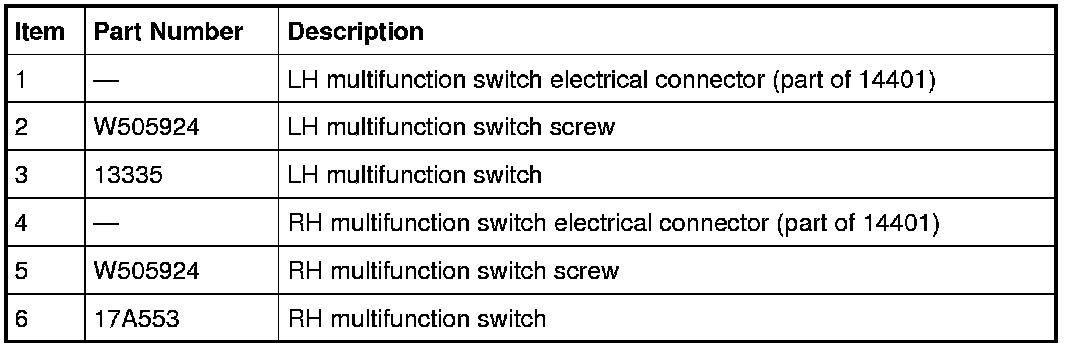

Removal and Installation

All vehicles

1. Remove the steering column opening trim panel.

2. Remove the upper and lower steering column shrouds.

LH multifunction switch only

3. Disconnect the LH multifunction switch electrical connector.

4. Remove the 2 LH multifunction switch screws and the multifunction switch.

RH multifunction switch only

5. Disconnect the RH multifunction switch electrical connector.

6. Remove the 2 RH multifunction switch screws and the multifunction switch.

All vehicles

7. To install, reverse the removal procedure.
