Power Trunk / Liftgate Lock Switch

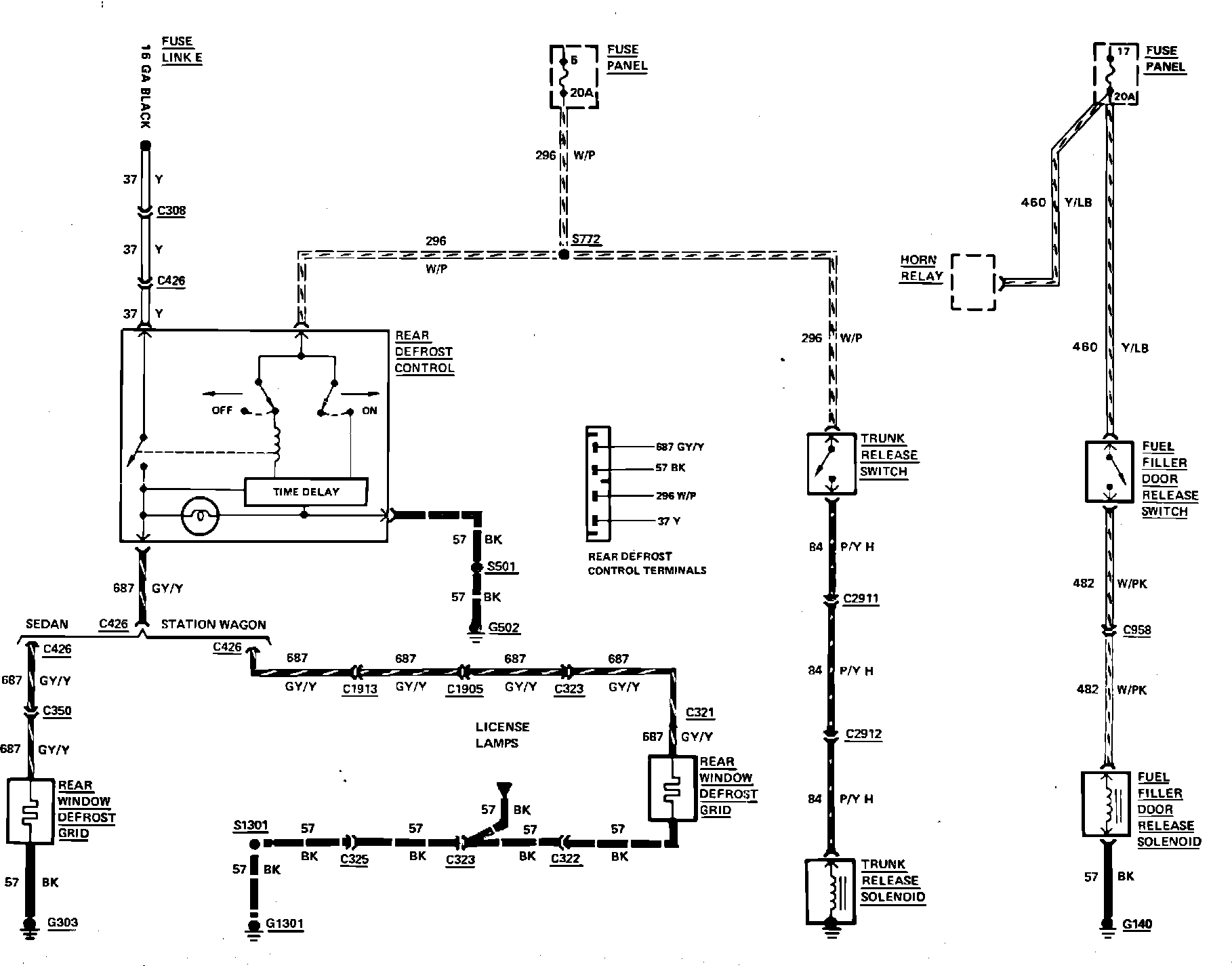

Fig. 16 Fuel Door Release, Rear Defroster & Trunk Release Wiring Circuit:

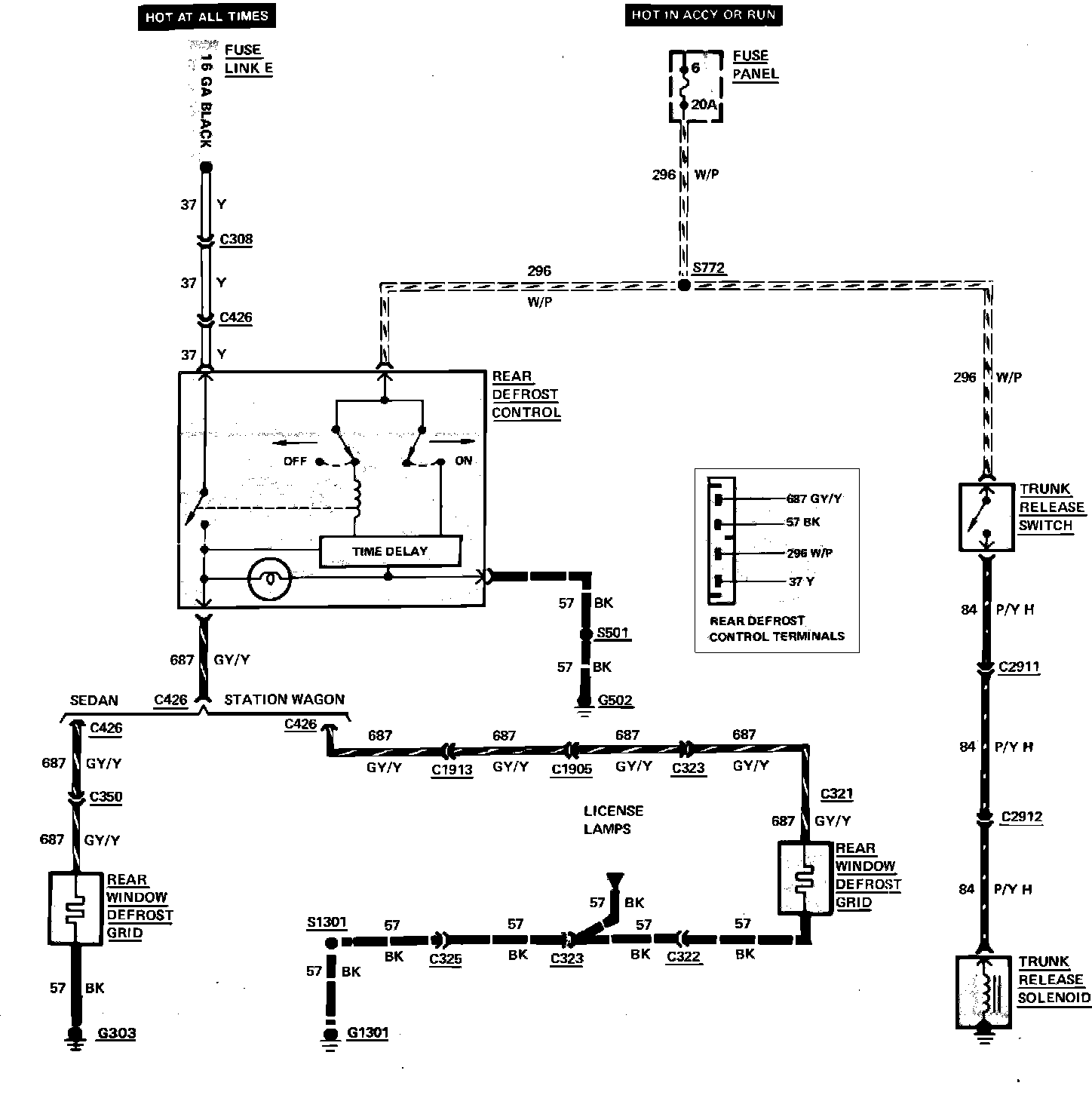

Rear Window Defroster Wiring Circuit:
