Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
>>
Warning Chime or Voice Alert Wiring Circuit
Warning Chime or Voice Alert Wiring Circuit

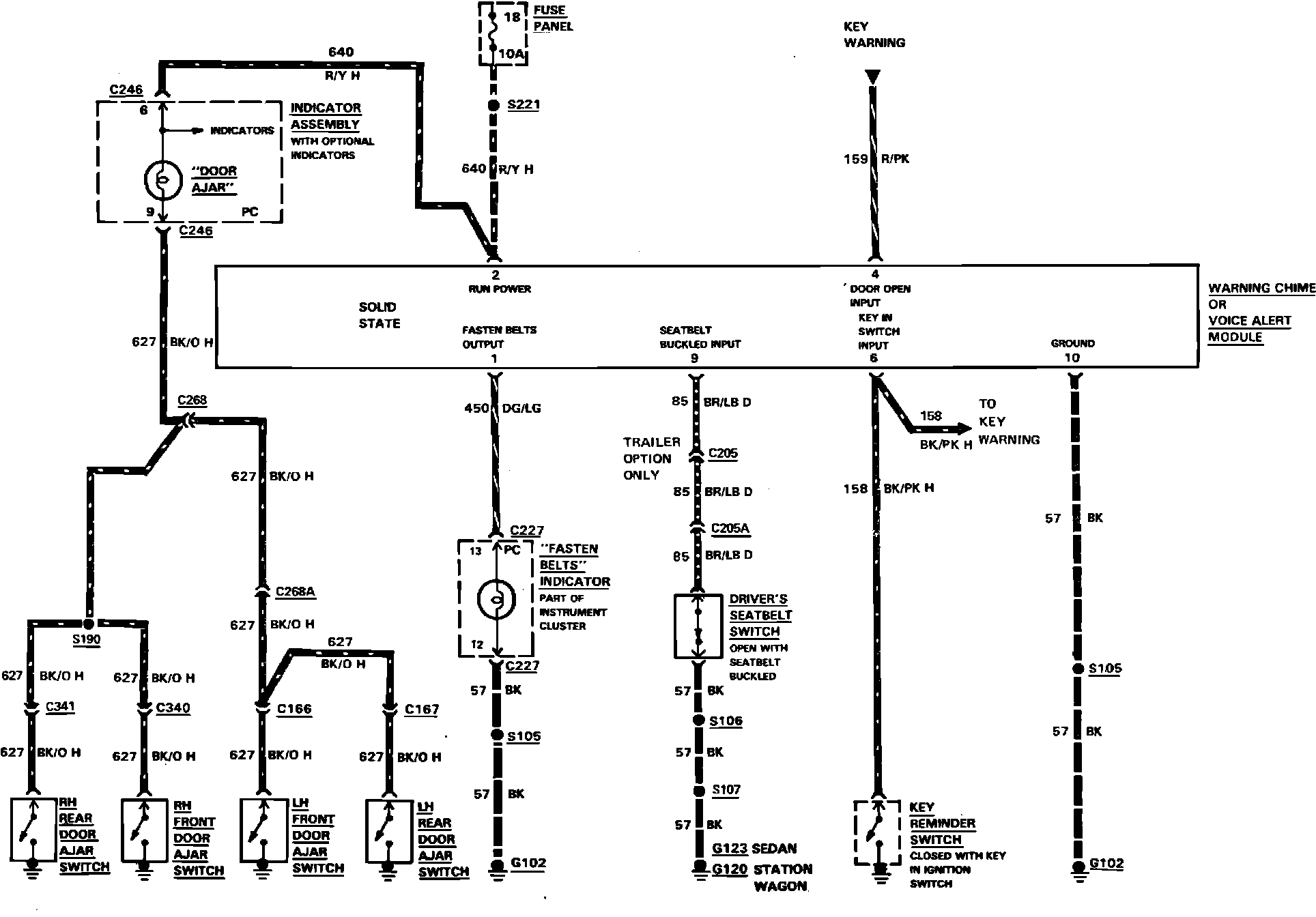

Fig. 36 Voice Alert & Warning Chime Wiring Circuit. LTD & Marquis:
