Door/Trunk Ajar Indicator/Lamp

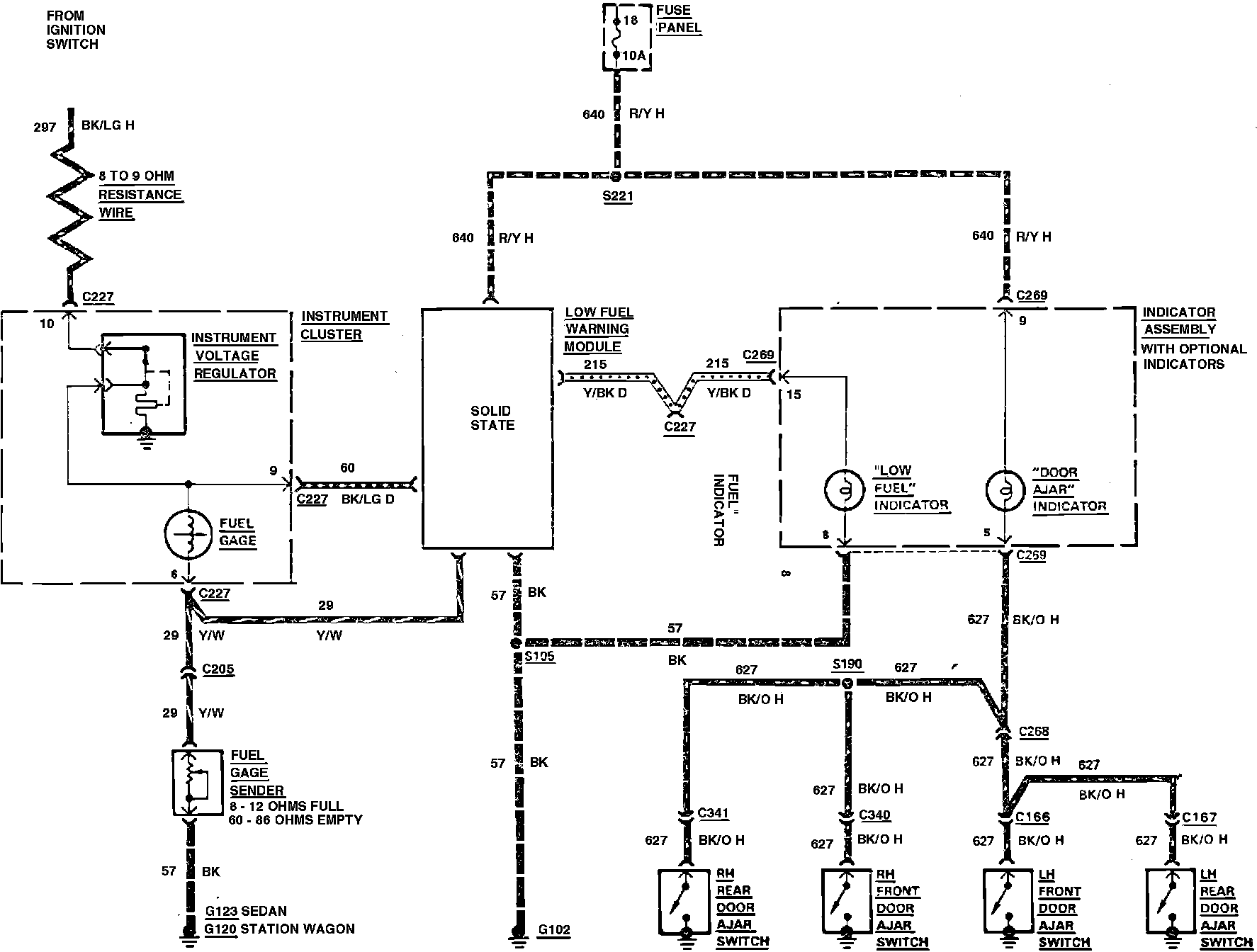

Fig. 13 Door Ajar Indicator, Fuel Gauge & Low Fuel Warning Lamp Wiring Circuit. LTD & Marquis:
