W/Standard Cluster

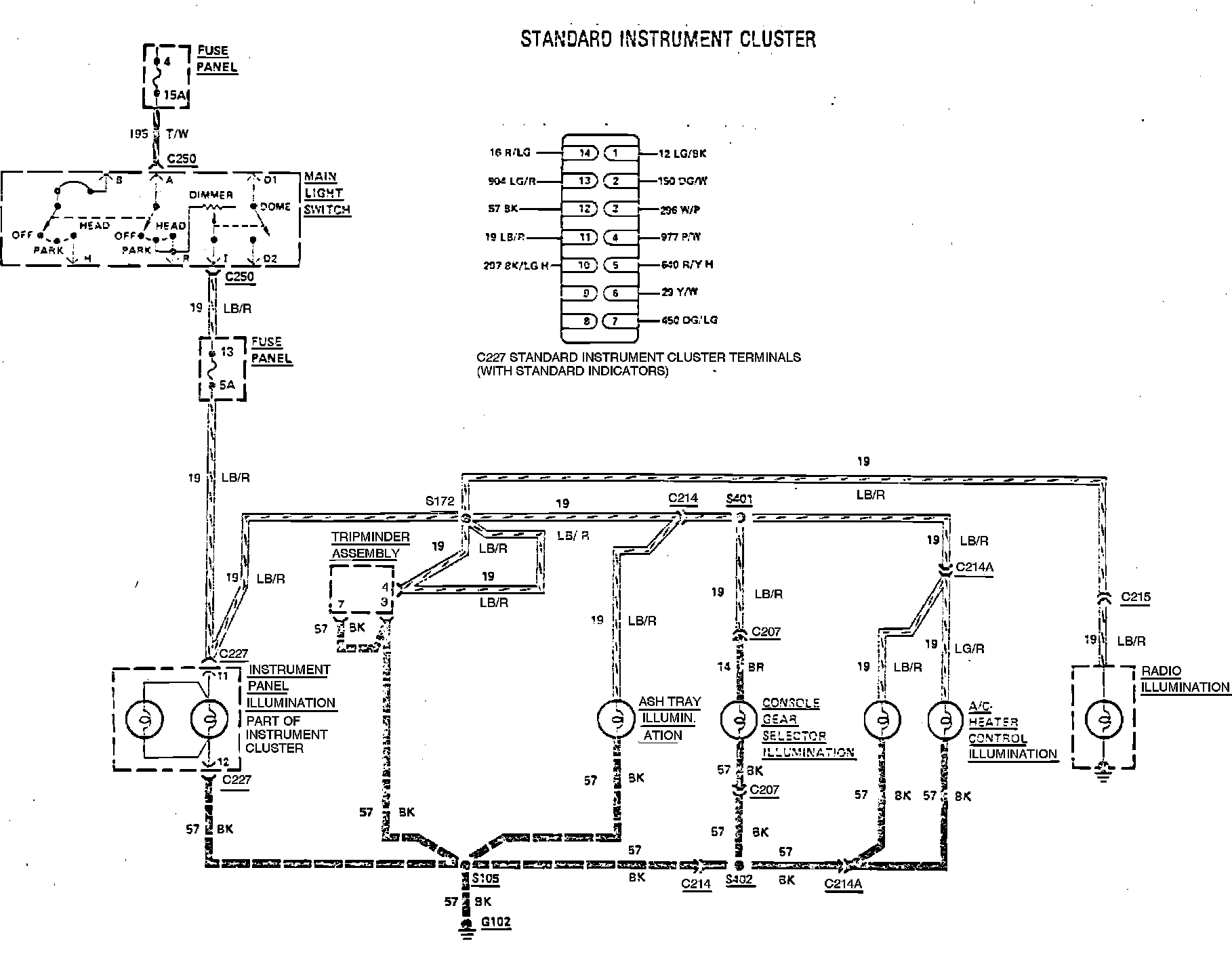

Fig. 24 Instrument Panel Illumination Wiring Circuit. LTD & Marquis W/Standard Cluster:
