Vacuum and Vapor Hose Diagrams
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

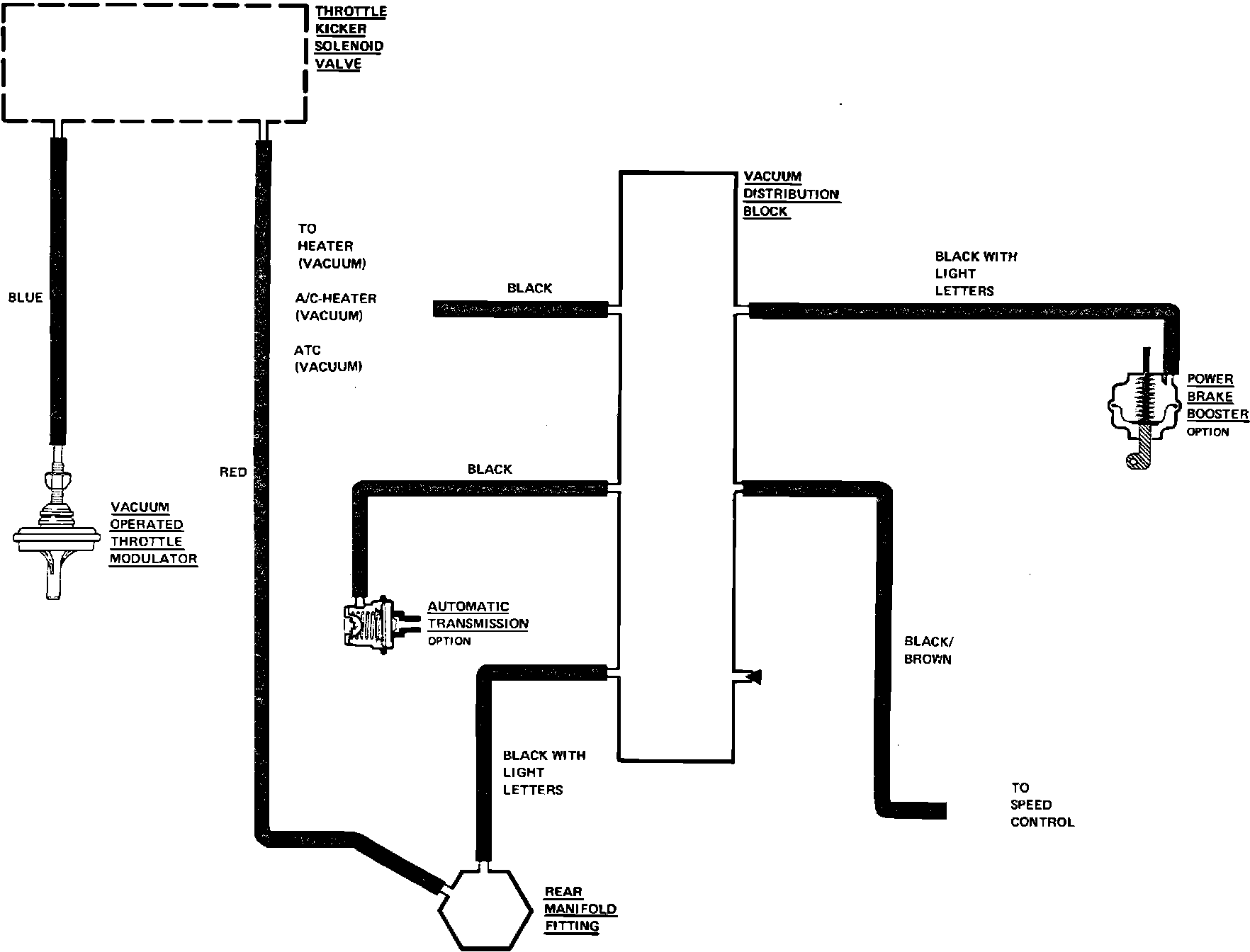

Fig. 35 Vacuum Distribution Circuit. LTD & Marquis:
