Engine Controls

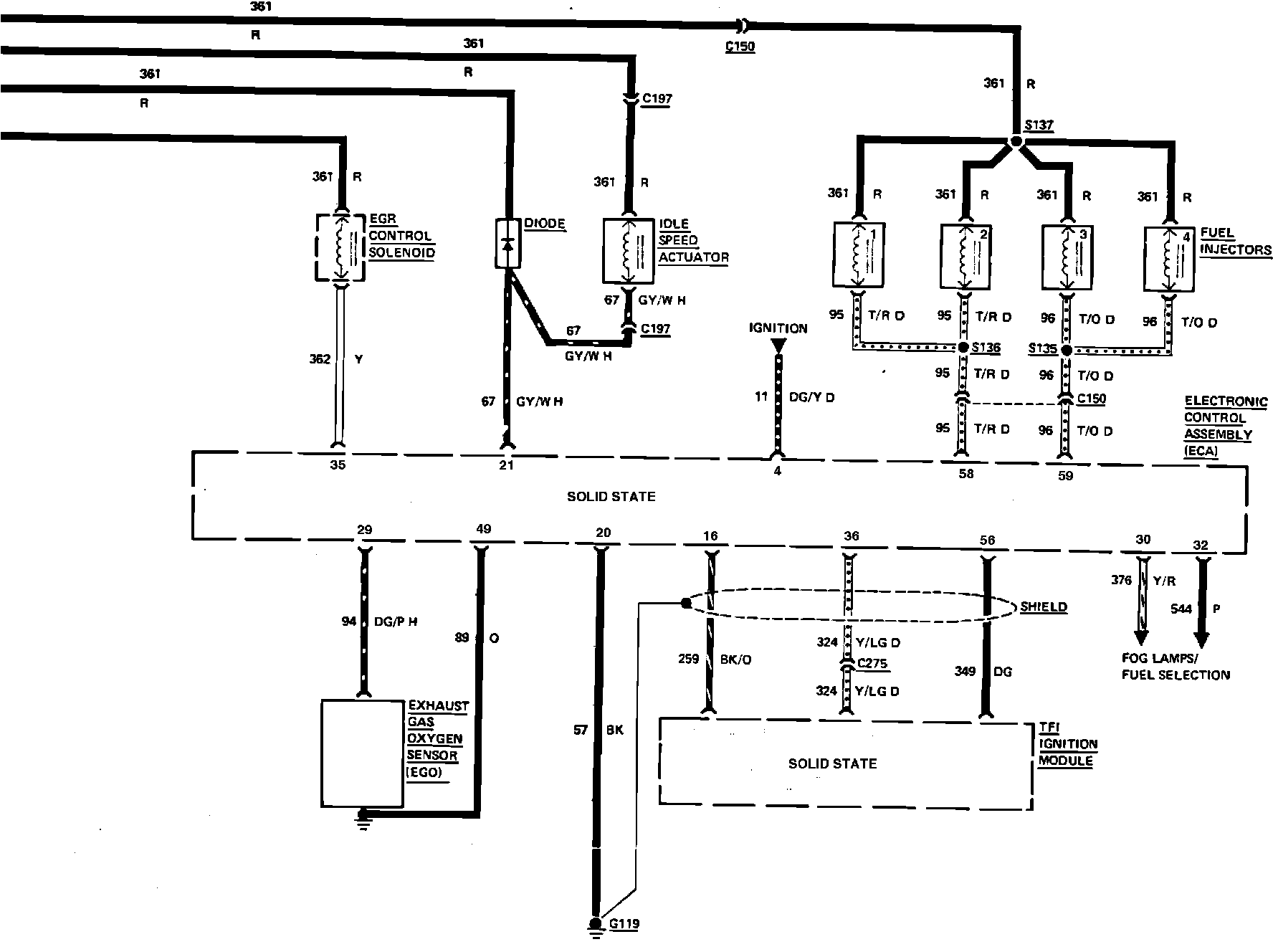

Fig. 14 Electronic Engine Control (E.E.C. IV) System Wiring Circuit (Part 1 of 3). 4-140 Turbocharged Engine:

Fig. 14 Electronic Engine Control (E.E.C. IV) System Wiring Circuit (Part 2 of 3). 4-140 Turbocharged Engine:

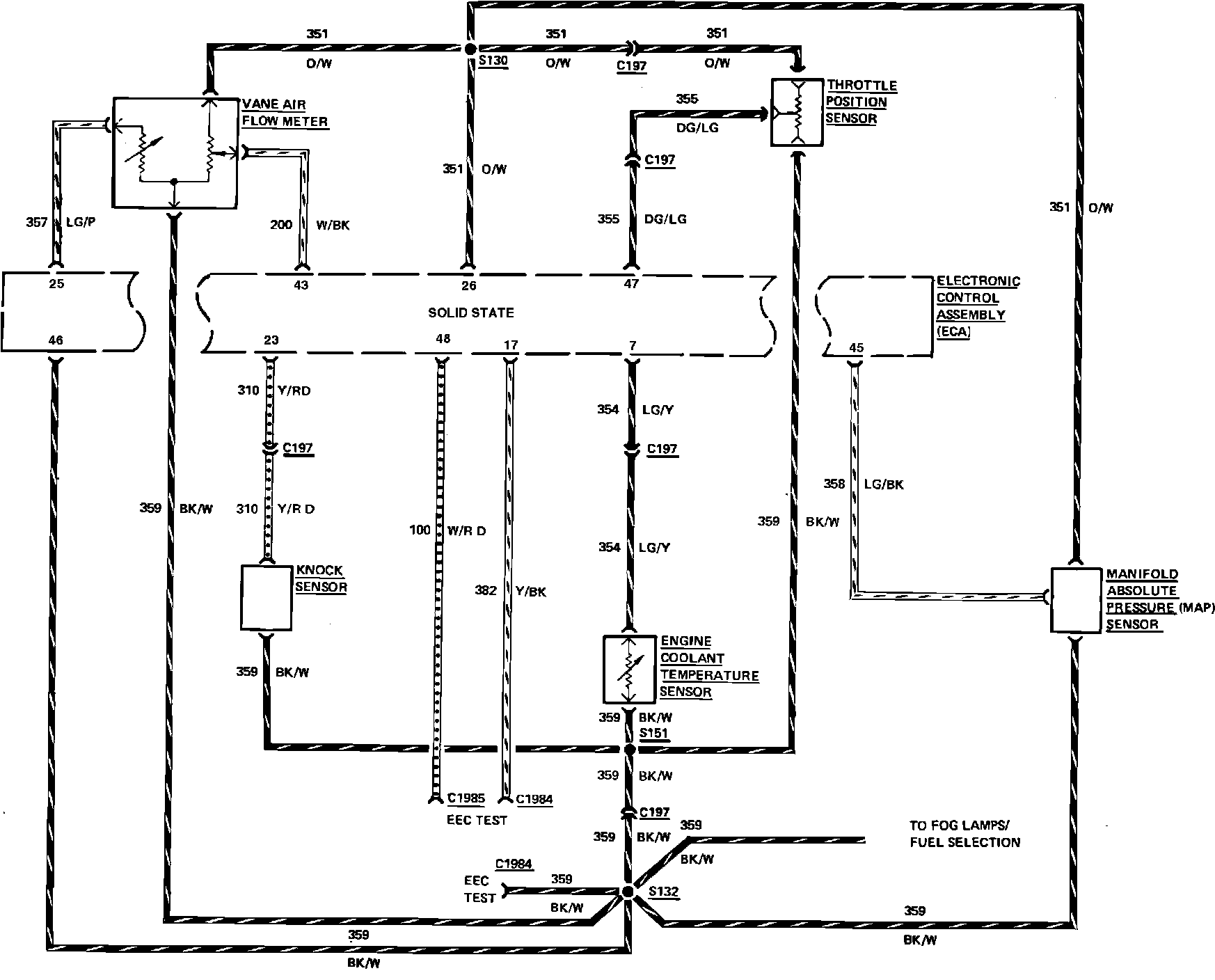

Fig. 14 Electronic Engine Control (E.E.C. IV) System Wiring Circuit (Part 3 of 3). 4-140 Turbocharged Engine:
