Evaporative Emission Control Canister: Locations

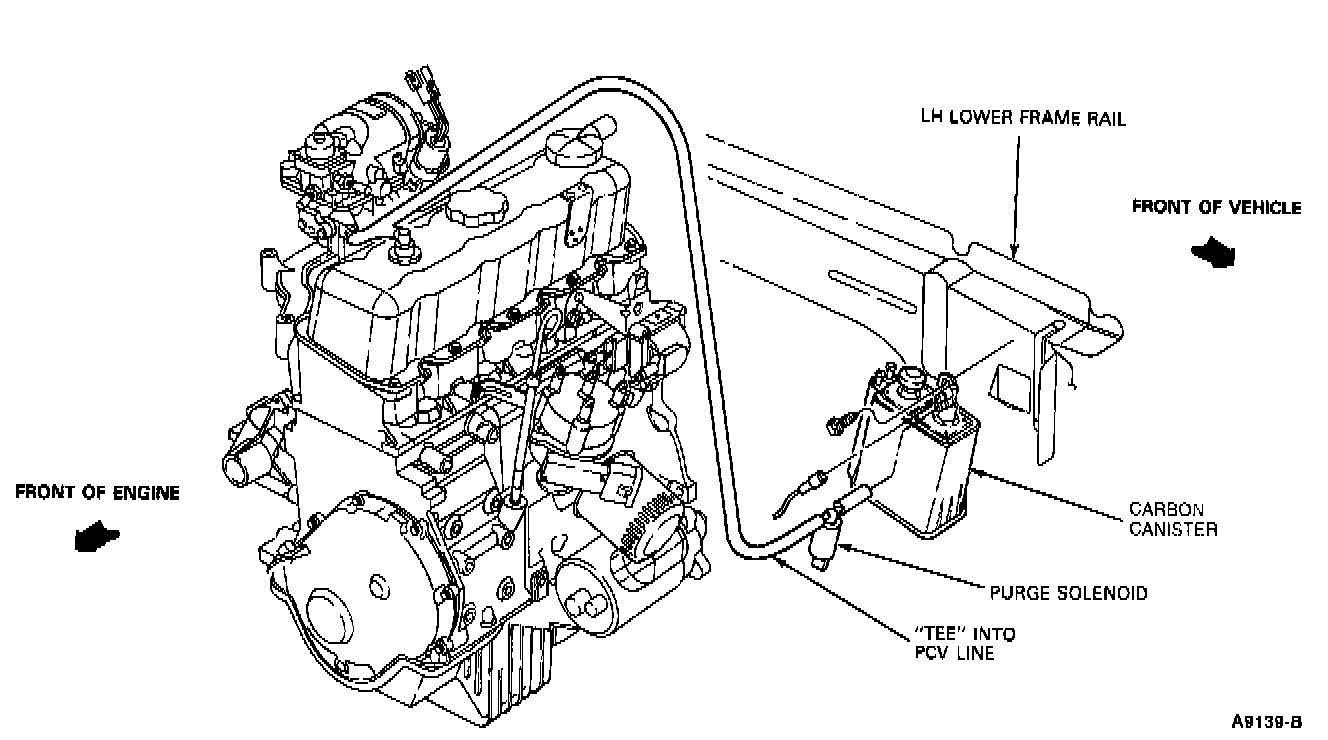

Figure 8 Typical 2.5L CFI HSC Taurus/Sable, 50 States and Canada-Evaporative Emission System:
