ABS Quick Test Jumper Pin Designation - Revision

Article No.
91-11B-8



June 14, 1991



^ CAR SHOP MANUAL SUPPLEMENT - 1987 - PAGE 12-32-56 - JUMPER PIN DESIGNATIONS REVISED

^ SHOP MANUAL - 1988 - PAGE 12-32-60 - JUMPER PIN DESIGNATIONS REVISED

^ SHOP MANUAL - 1989 - PAGE 12-32-61 - JUMPER PIN DESIGNATIONS REVISED



FORD:
1987 THUNDERBIRD

LINCOLN-MERCURY:
1988 MARK VII 1988-89 CONTINENTAL



ISSUE:
The Jumper Pin designations shown in Step 6 of the Anti-Lock Quick Test Check are listed incorrectly in the following Shop Manuals:

^ 1987 Car Shop Manual Supplement Page 12-32-56

^ 1988 Continental Shop Manual Page 12-32-60

^ 1989 Continental Shop Manual Page 12-32-61



ACTION:
Refer to the pages in this TSB article for the corrected Jumper Pin designations.


OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
390000

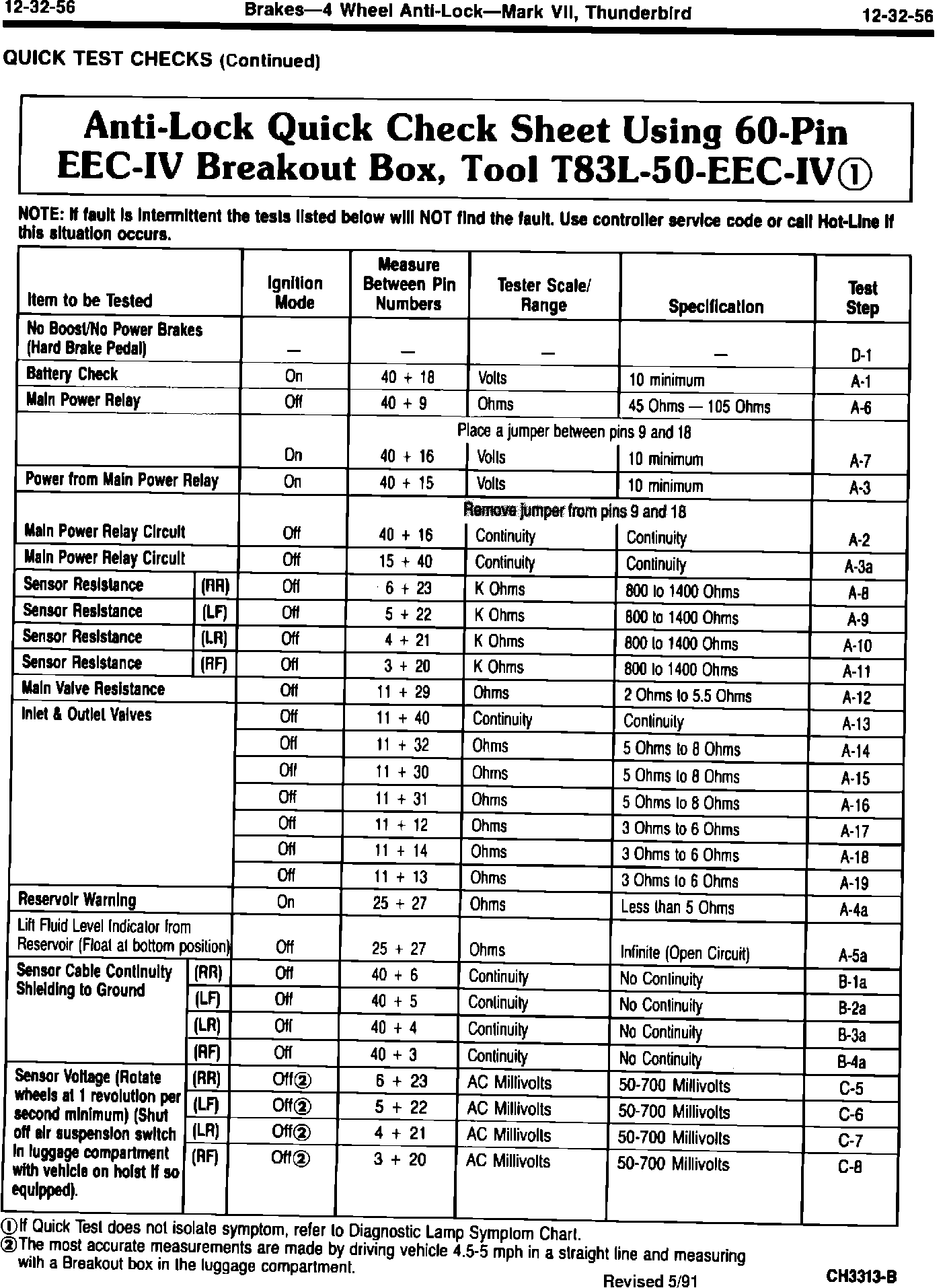

1987 Car Shop Manual Supplement Page 12-32-56 Antilock Quick Check Sheet Using 60 Pin

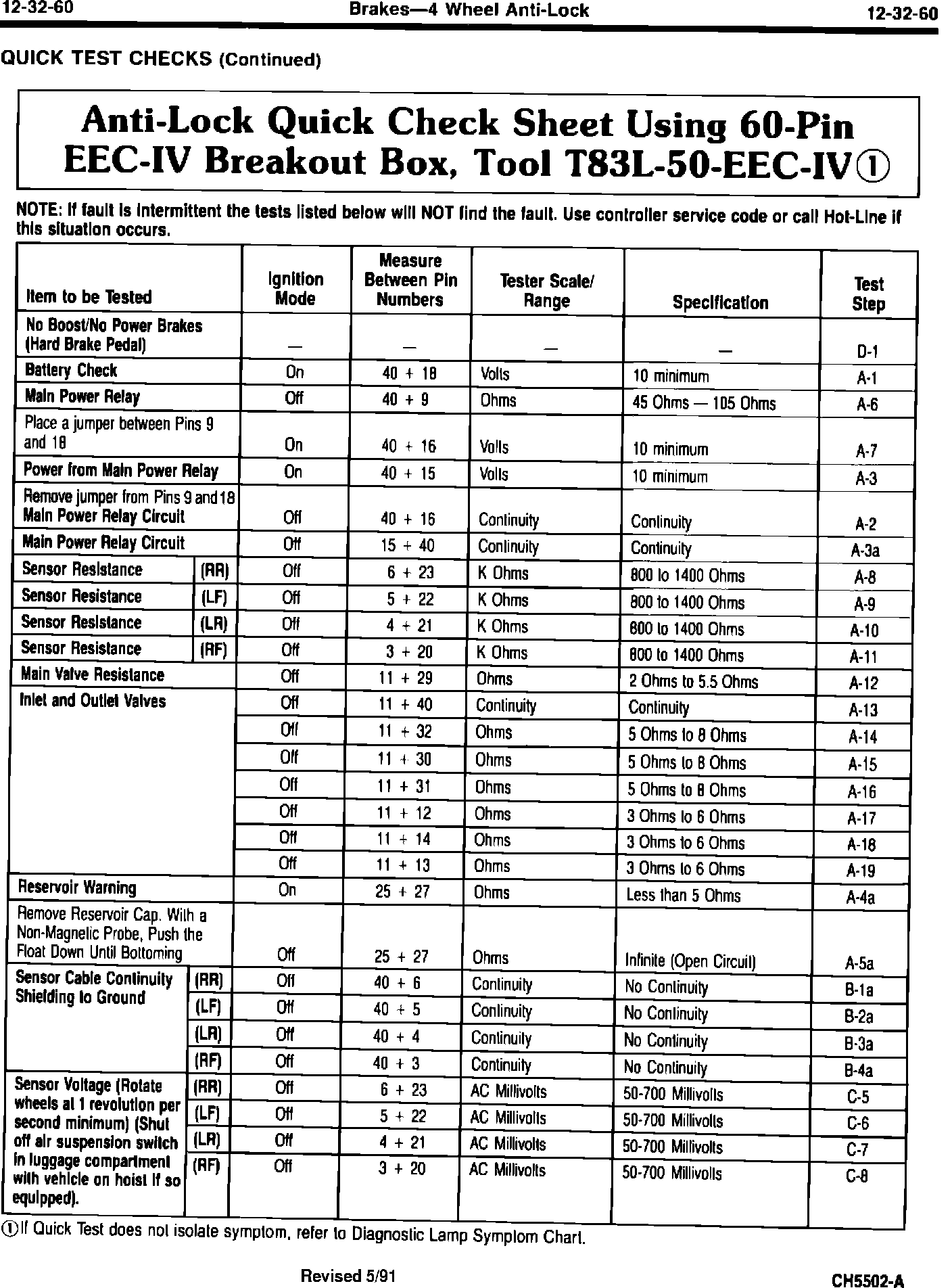

1988 Continental Shop Manual Page 12-32-60 Quick Test Checks

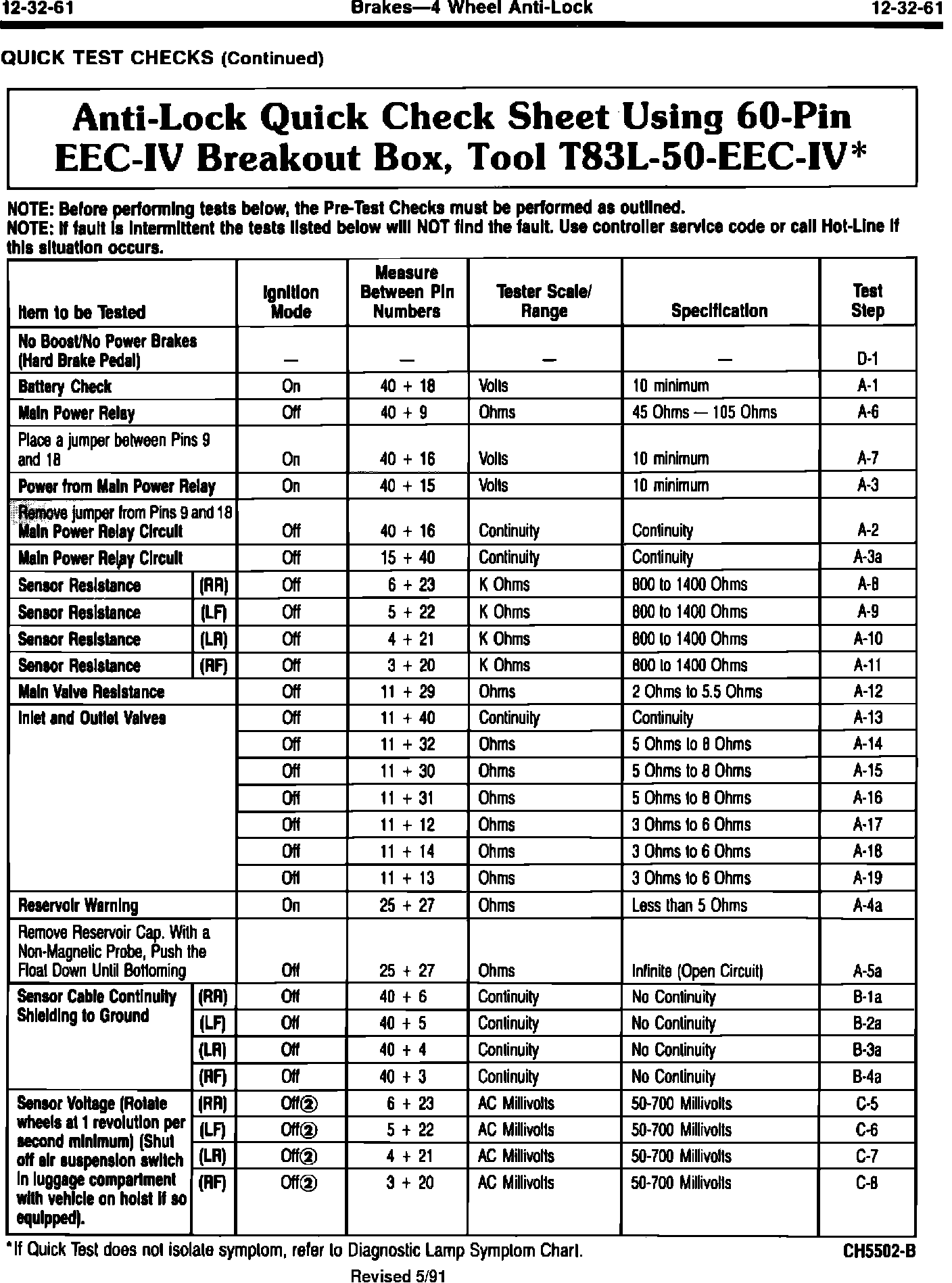

1989 Continental Shop Manual Page 12-32-61 Quick Test Checks
