(7)Front Pump Crescent Casting Appearance

Field reports indicate that some front pump supports (7A103) are being replaced due to the rough appearance of the crescent casting.

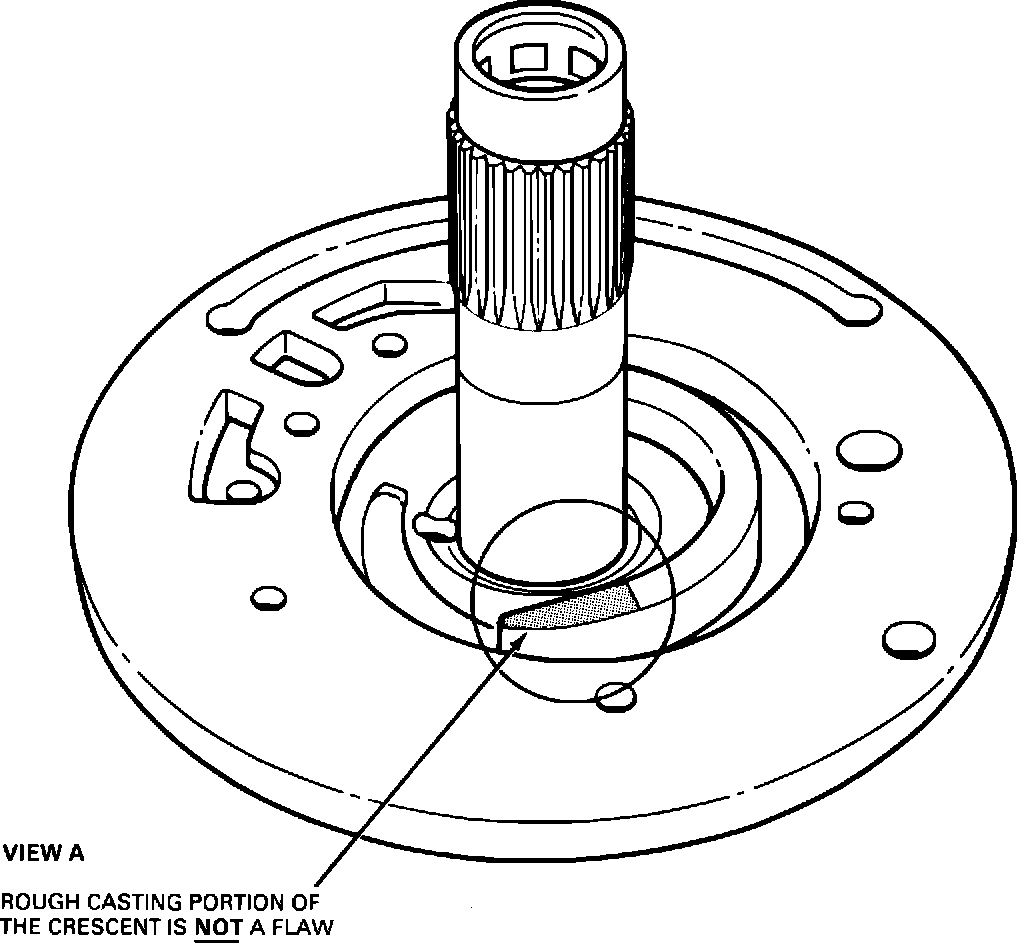

Figure 25:

Figure 25 identifies the area of concern on the crescent casting. The rough appearance of the casting is intentional and is not a flaw.

The function of the pump is not affected and it should not be replaced due to this appearance.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
