Evaporative Emissions System: Description and Operation

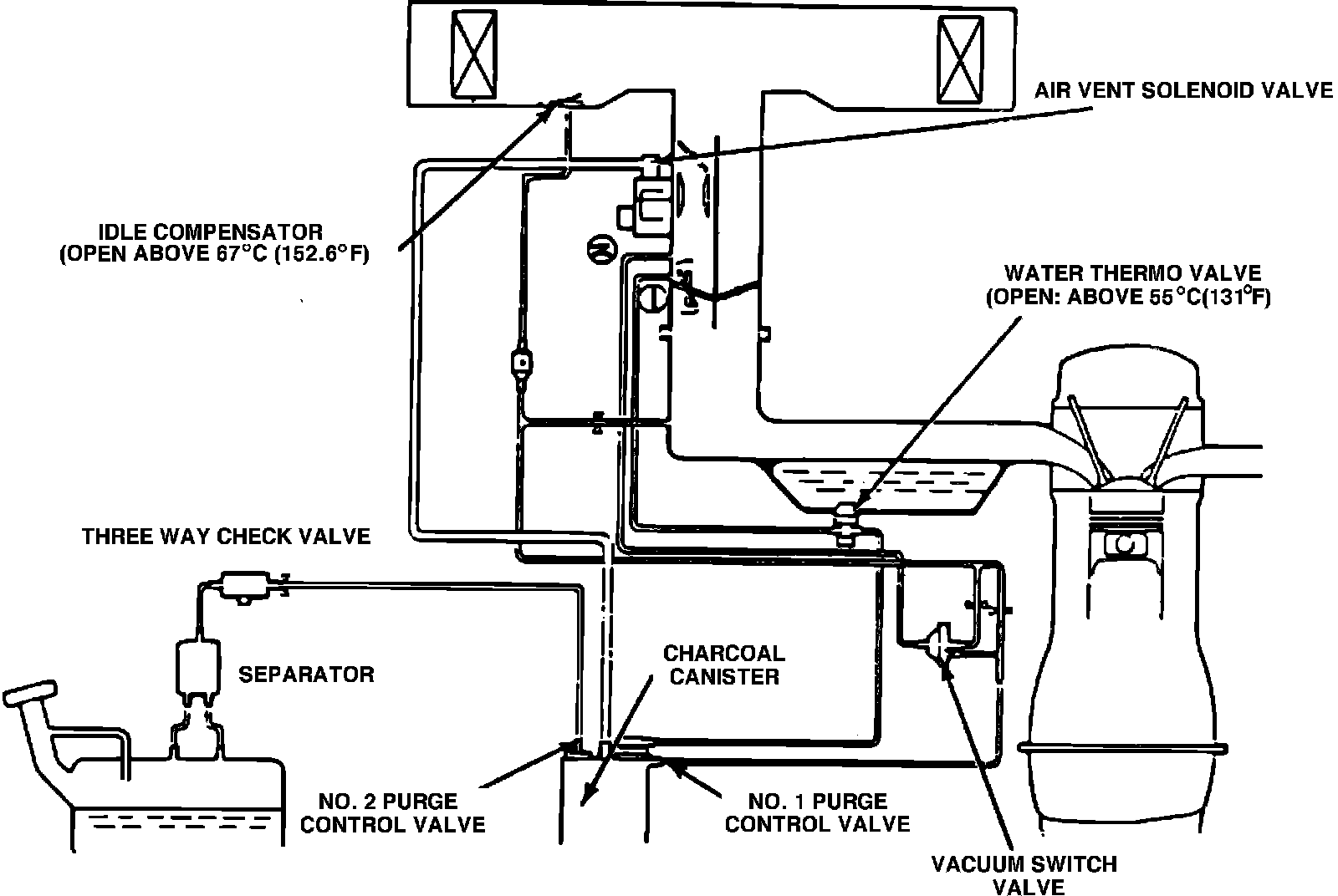

Fig. 1 Evaporative emission control system:

DESCRIPTION
The evaporative emission control system, Fig. 1, consists of a purge canister with connecting lines to the fuel tank and carburetor bowl. The various system components function to store fuel vapor and control the release of these vapors during engine operation.
