EV 4 No. 2 Purge Control Valve Function
EV 4 No. 2 Purge Control Valve Function

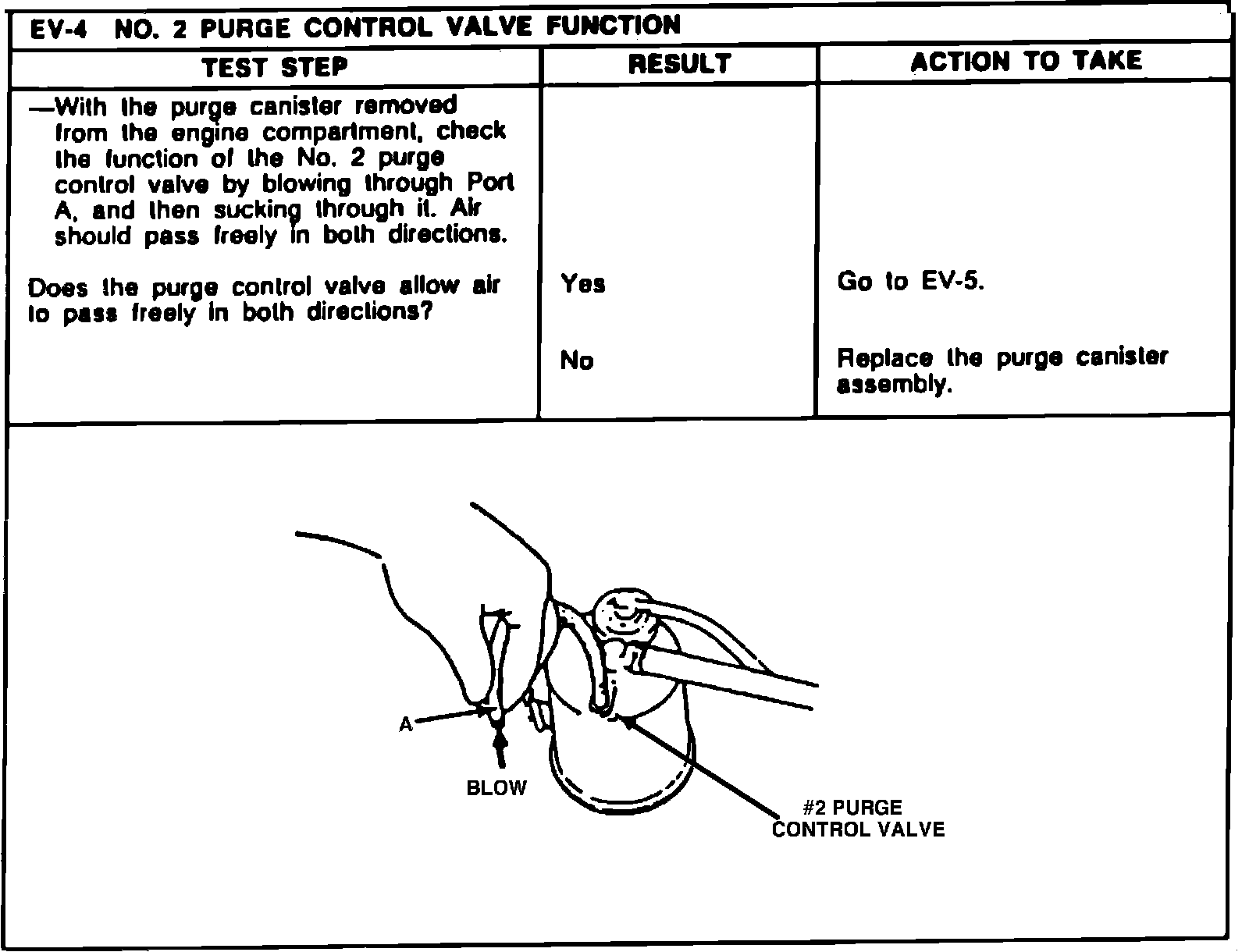

Fig. 2 Evaporative emission control system diagnosis (Part 4 of 10):
