EV 8 Water Thermo Valve For EVAP Function

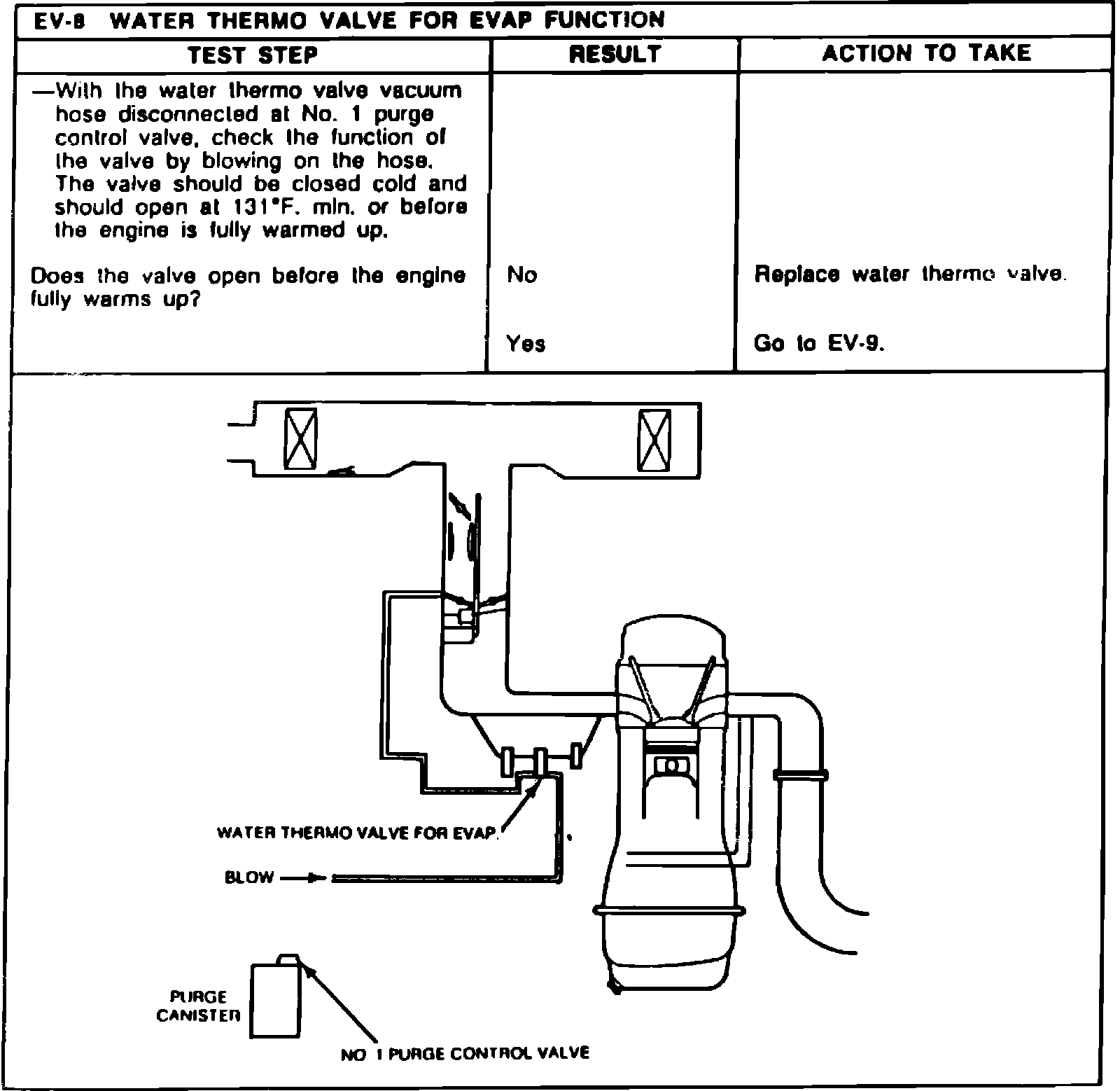

Fig. 2 Evaporative emission control system diagnosis (Part 8 of 10):
