EGR 4 - Vacuum Delay Valve Function

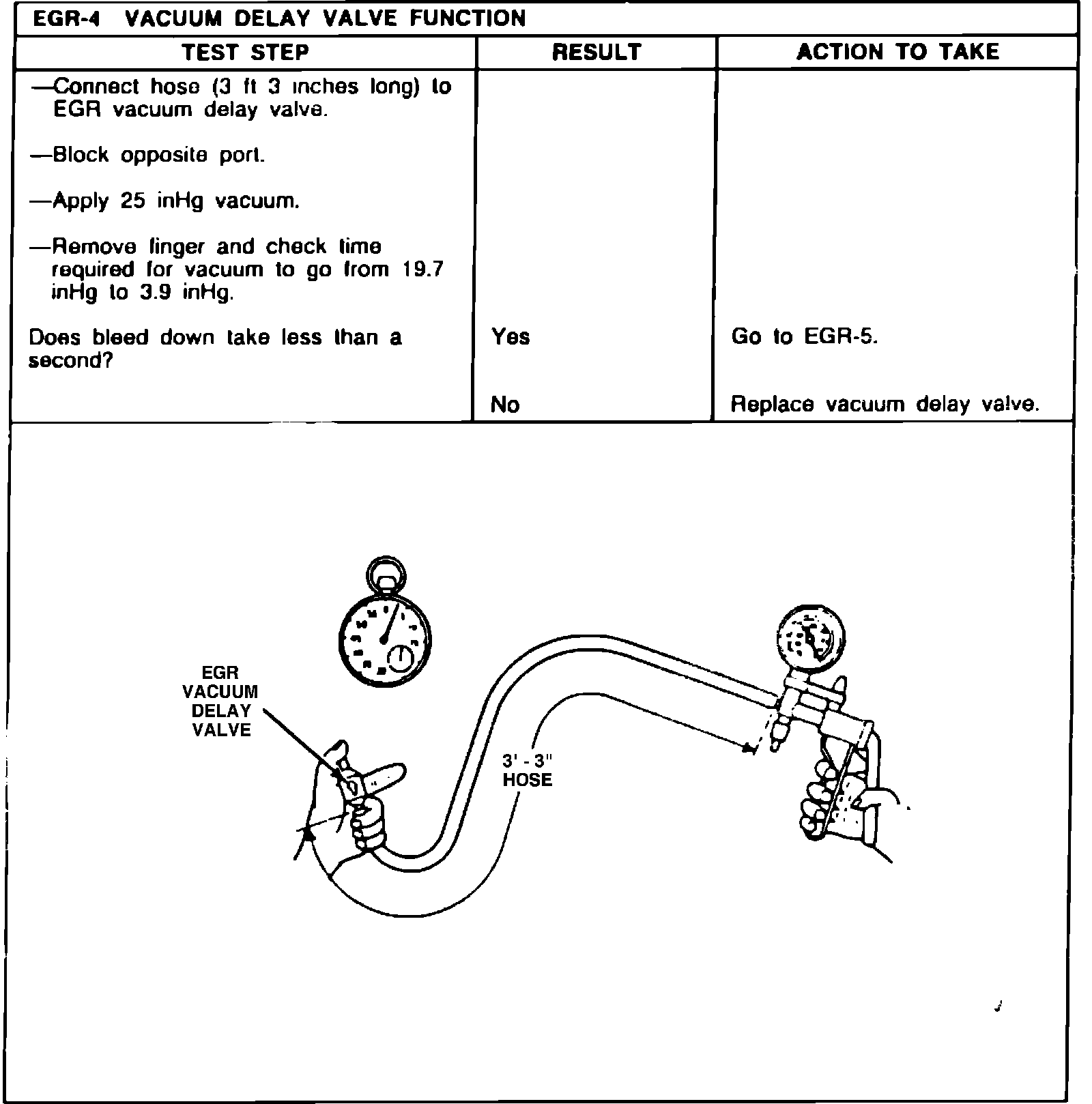

Fig. 6 Exhaust Gas Recirculation (EGR) system diagnosis (Part 4 of 11):
