Home >> Ford >> 1988 >> Festiva L4-81 1.3L SOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Thermostatic Air Cleaner >> Testing and Inspection >> WA - 5 Air Cleaner Temperature Sensor Function

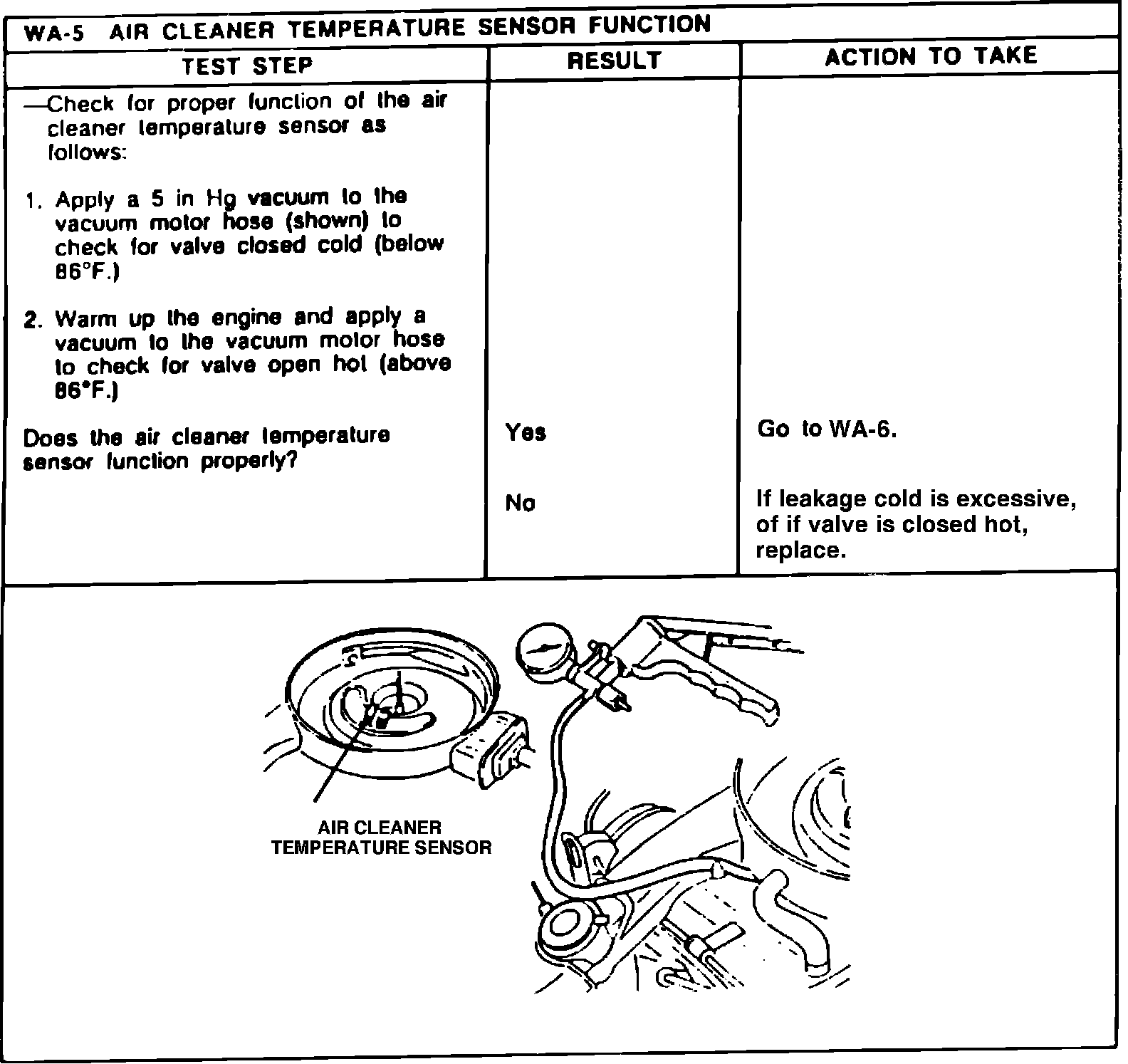

WA - 5 Air Cleaner Temperature Sensor Function

Fig. 10 Warm air system diagnosis(Part 5 of 6):
