Home >> Ford >> 1989 >> Escort L4-116 1.9L SOHC HO >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls

Engine Controls

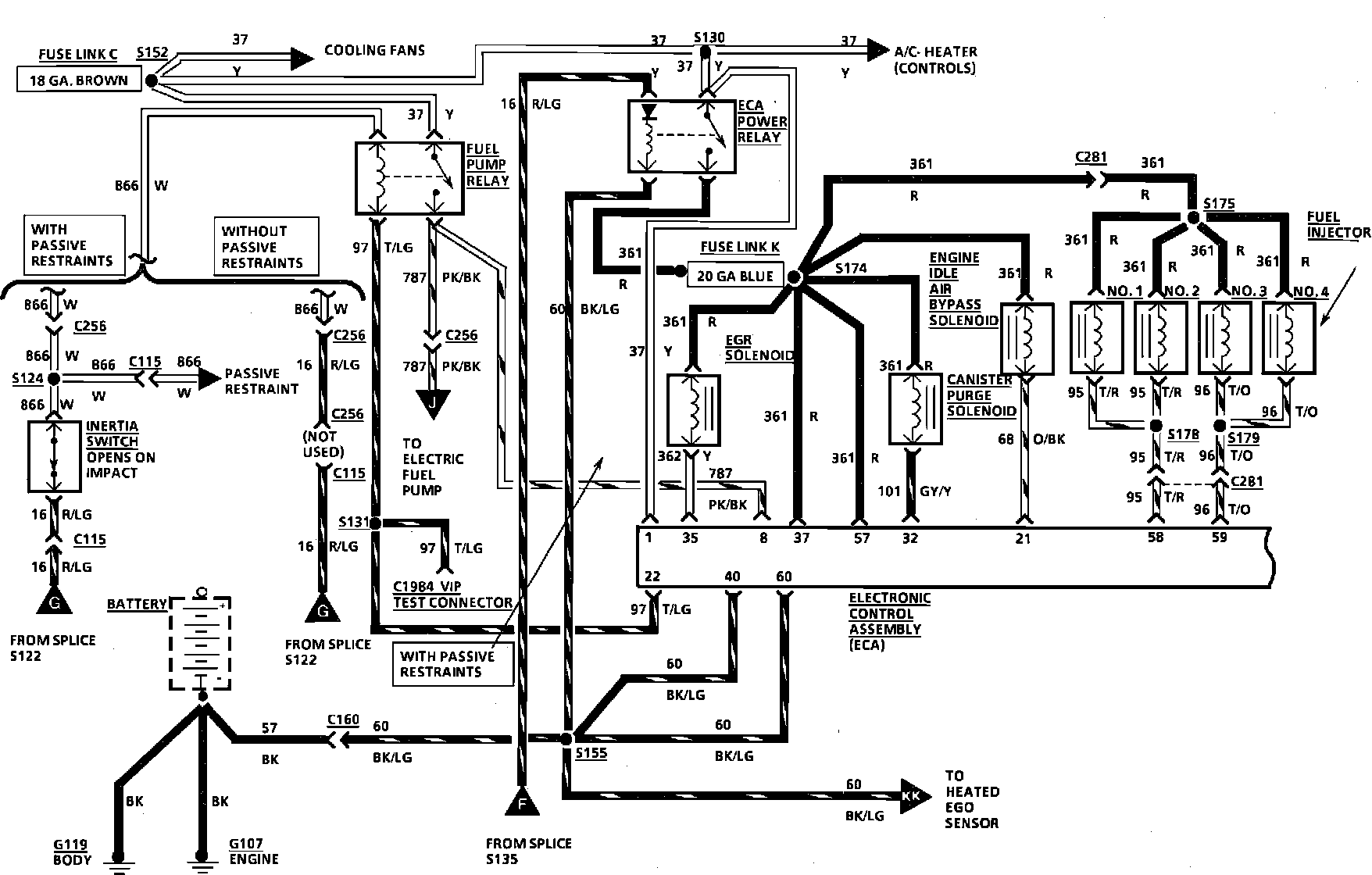

Electronic Engine Control System Wiring Circuit. With EFI:

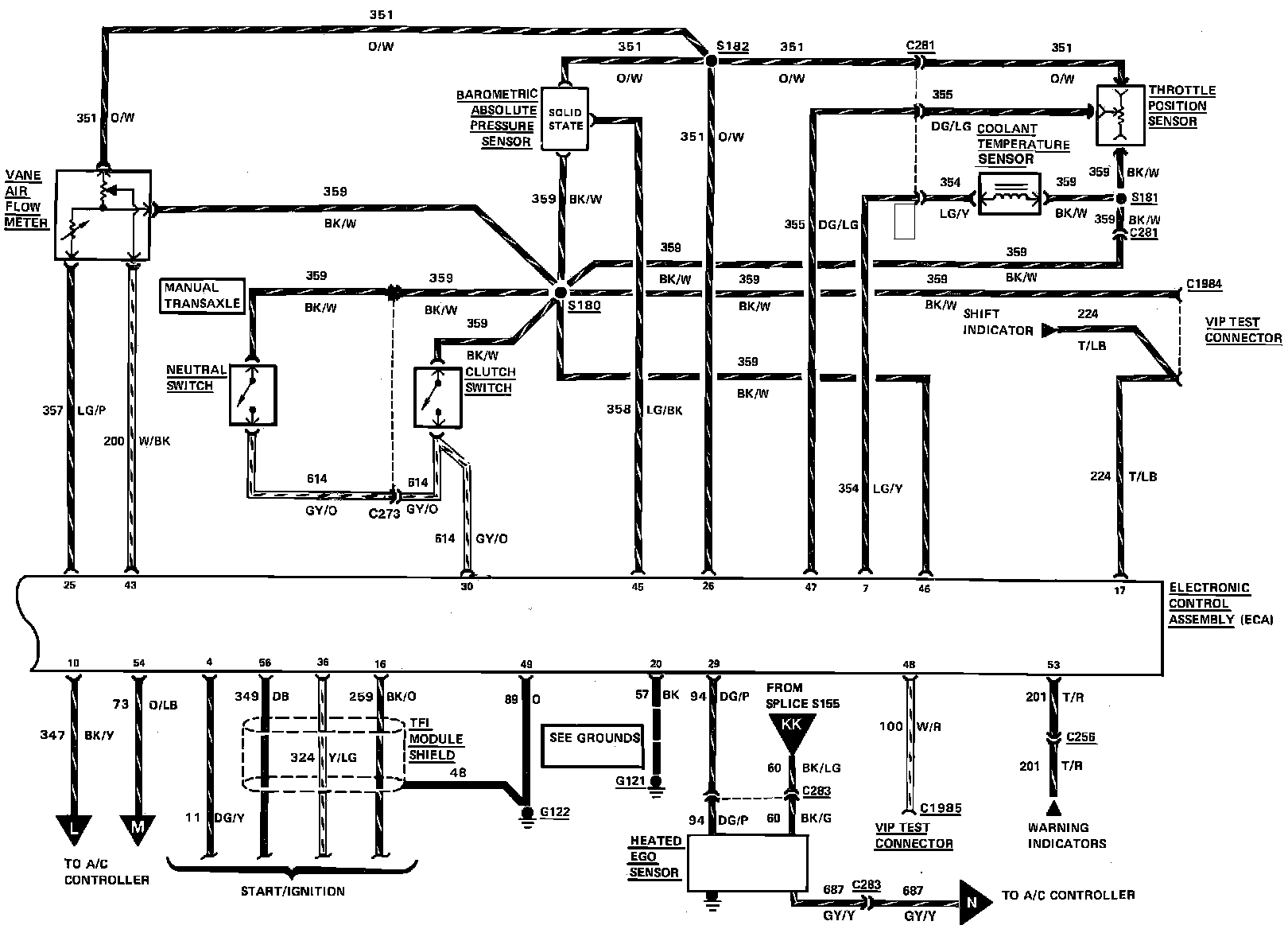

Electronic Engine Control System Wiring Circuit. With EFI:
