Brake Warning Indicator
>>
Less Message Center
Less Message Center

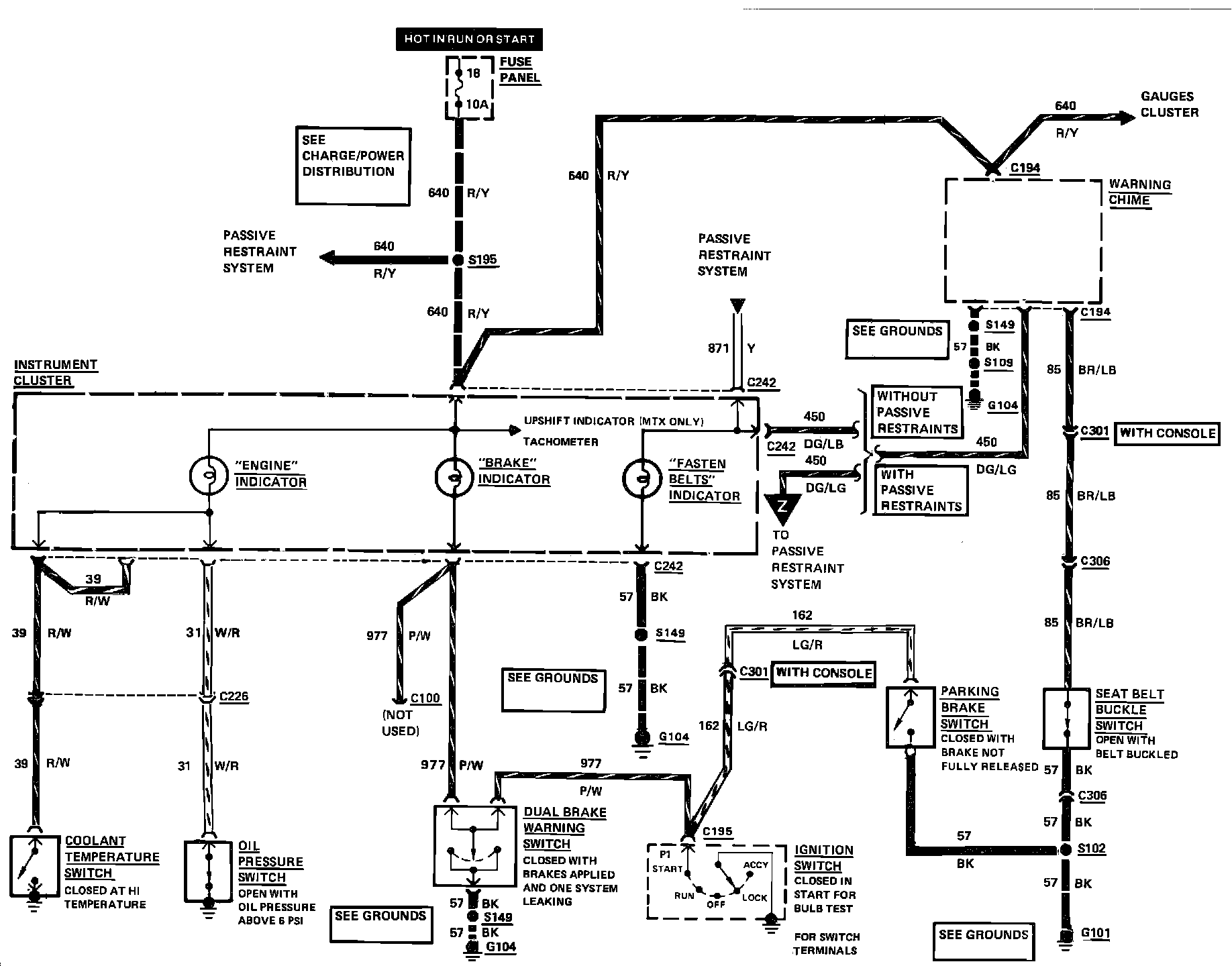

Warning Indicator Wiring Circuit:
