1989
>>
Escort L4-116 1.9L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Power Distribution
>>
Main Lamp Switch
Main Lamp Switch

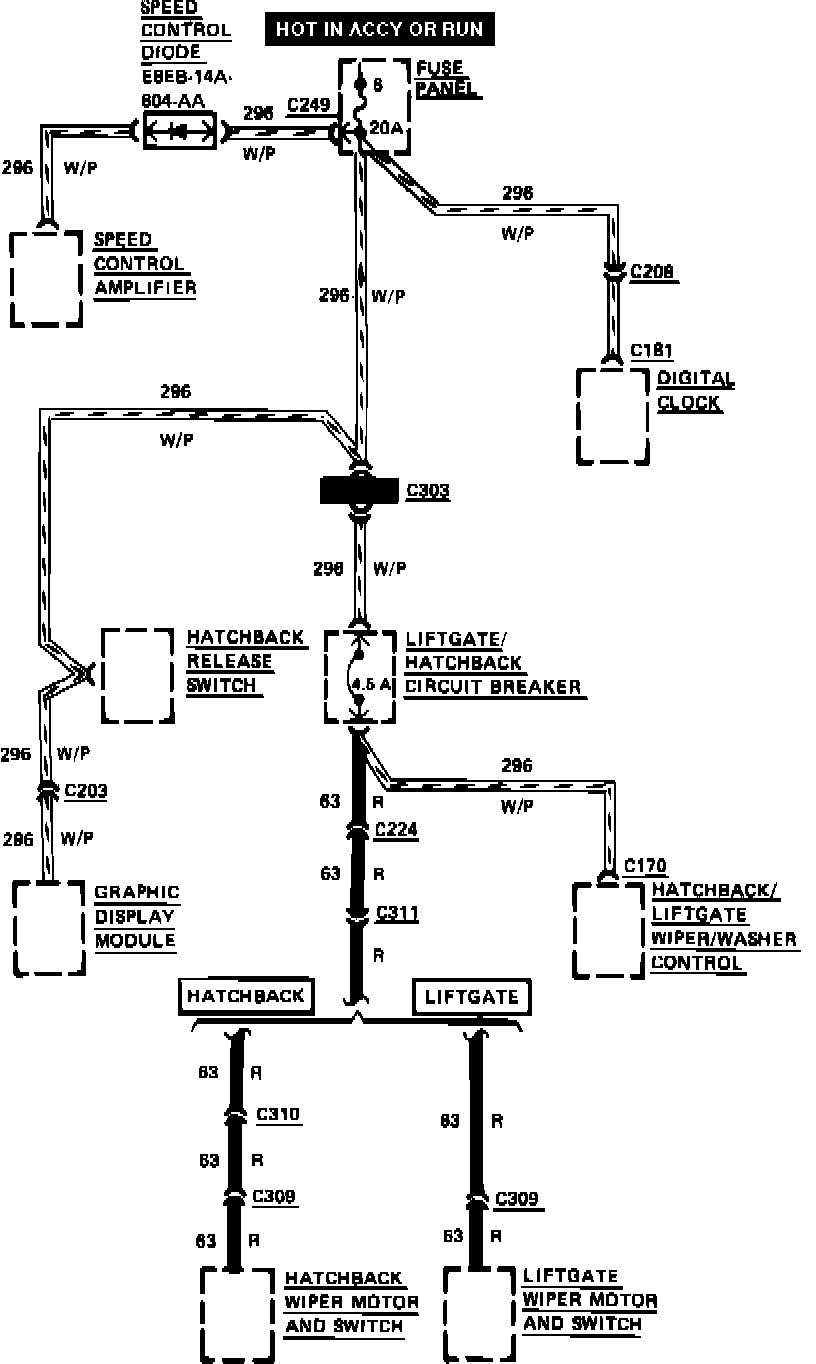

Fuse 6 Details:
