Home >> Ford >> 1989 >> Mustang V8-302 5.0L HO >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Technical Service Bulletins >> A/C Function Control - Schematic Correction >> 1989 A/C Heater & Component Test Information

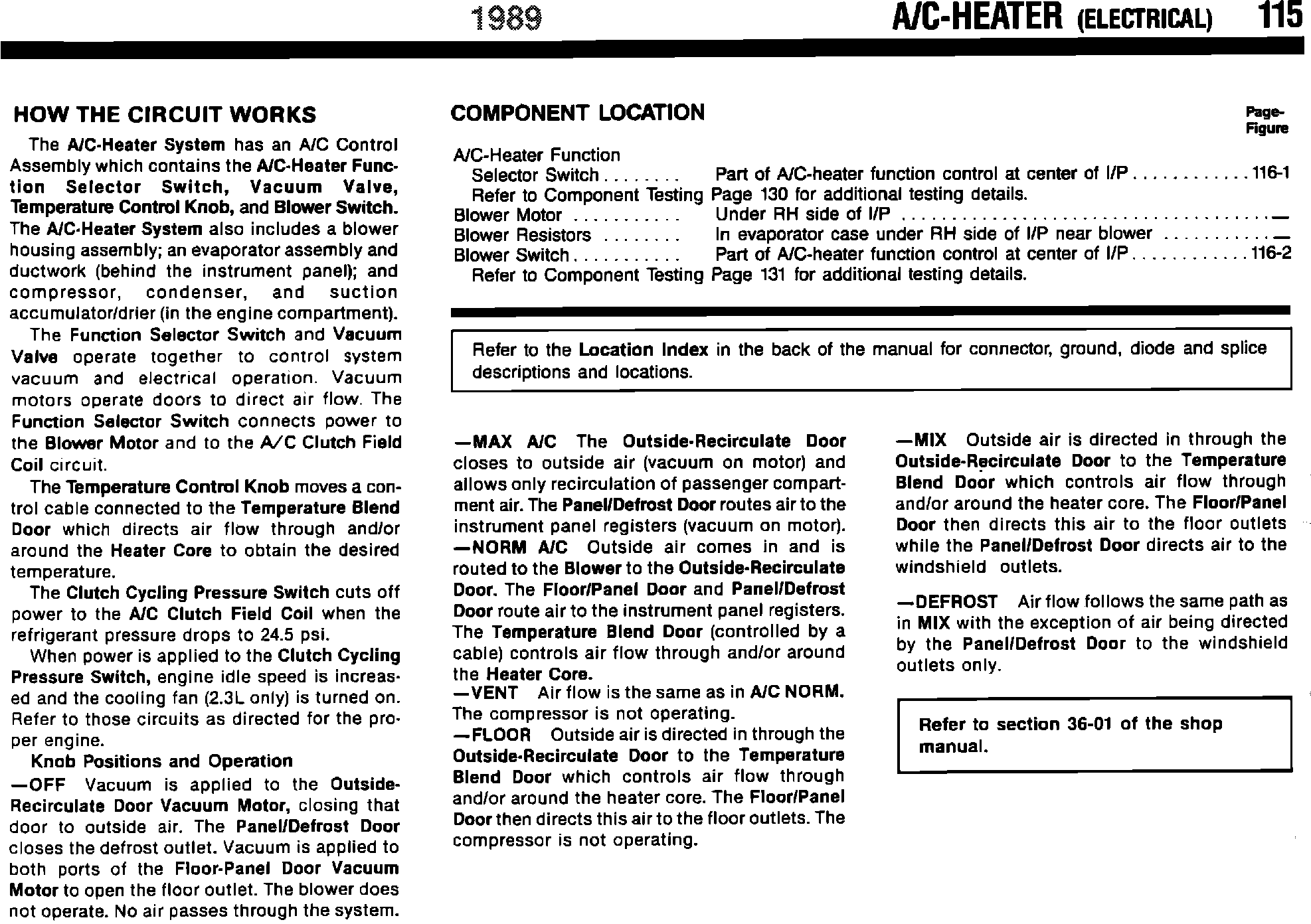

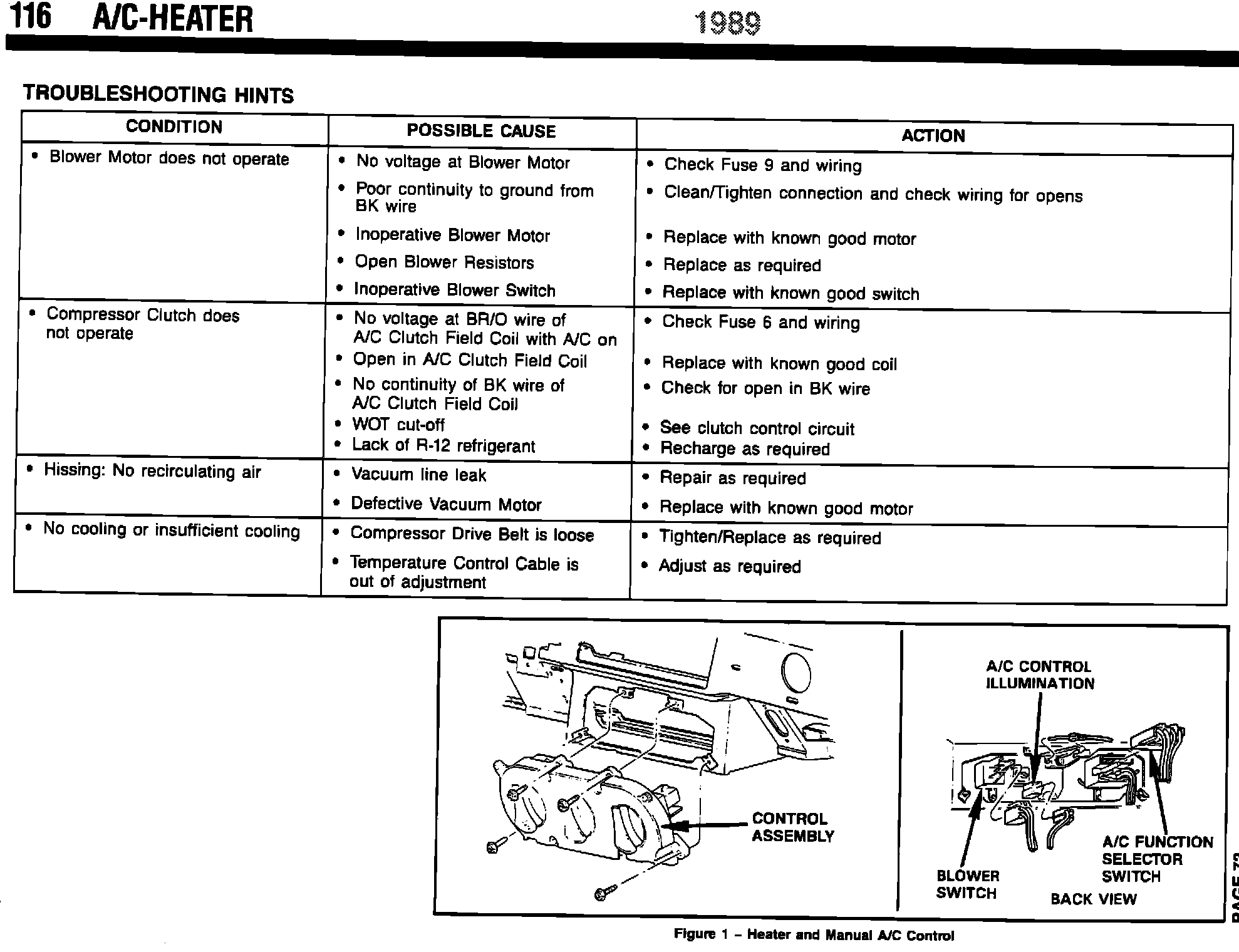

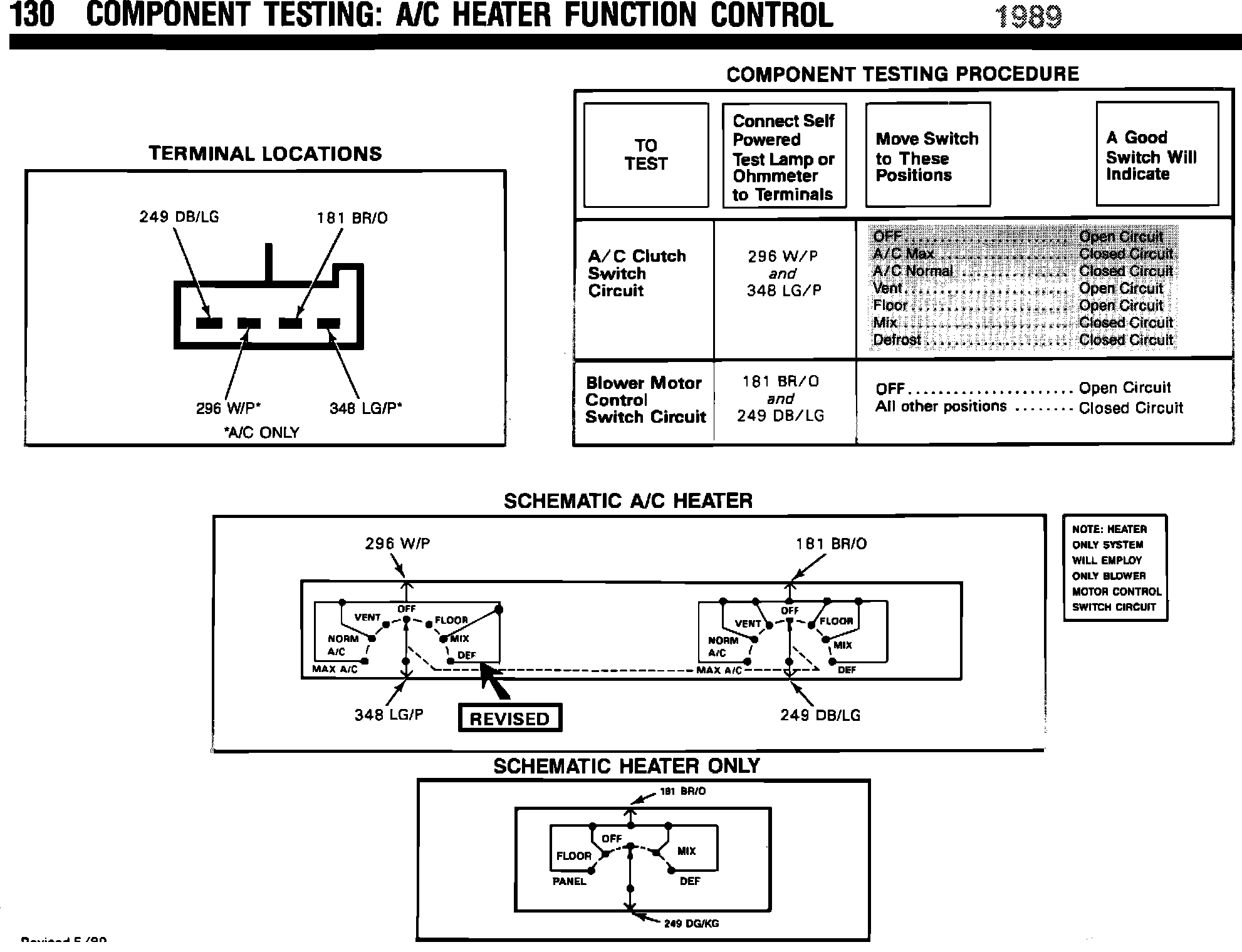

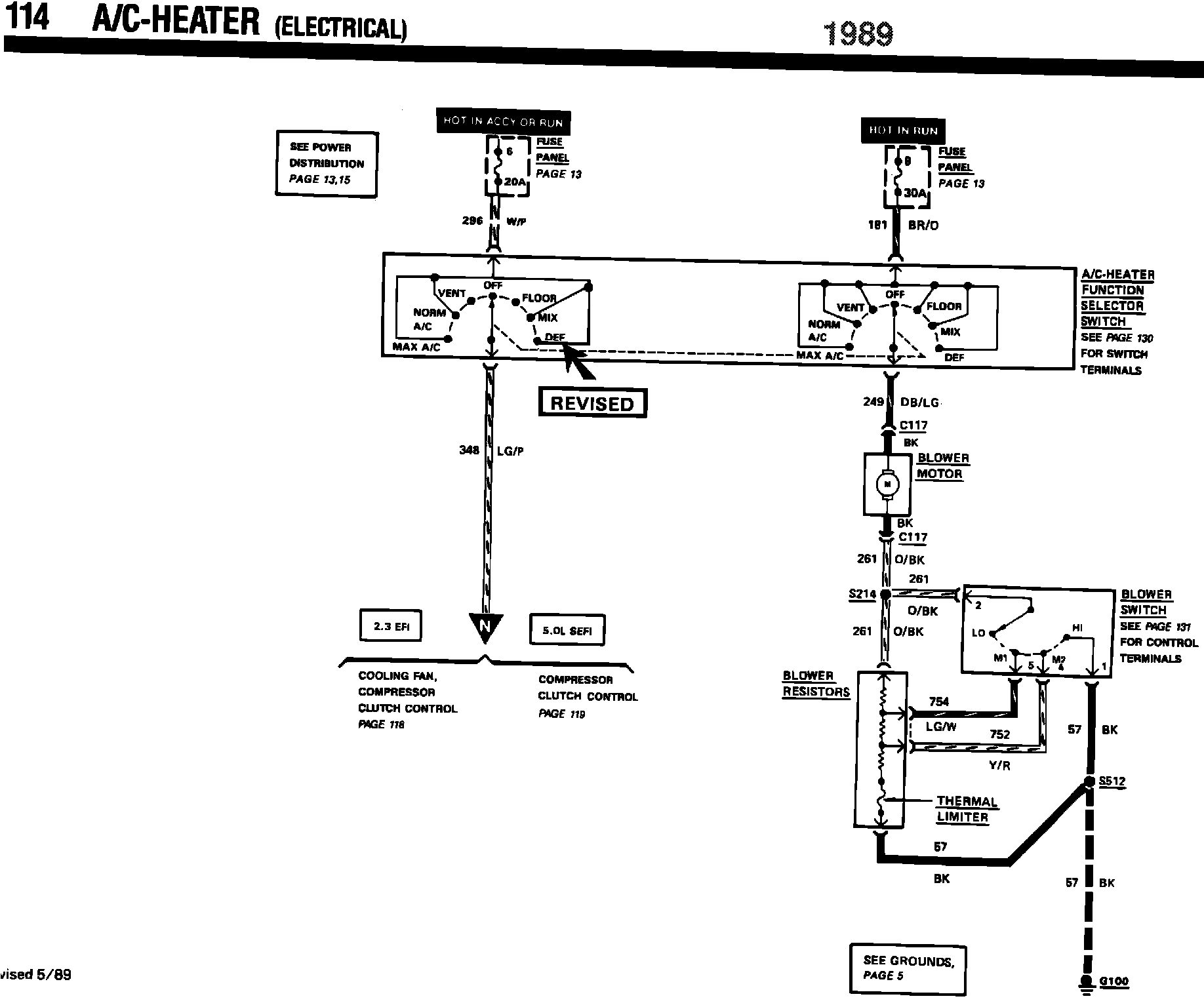

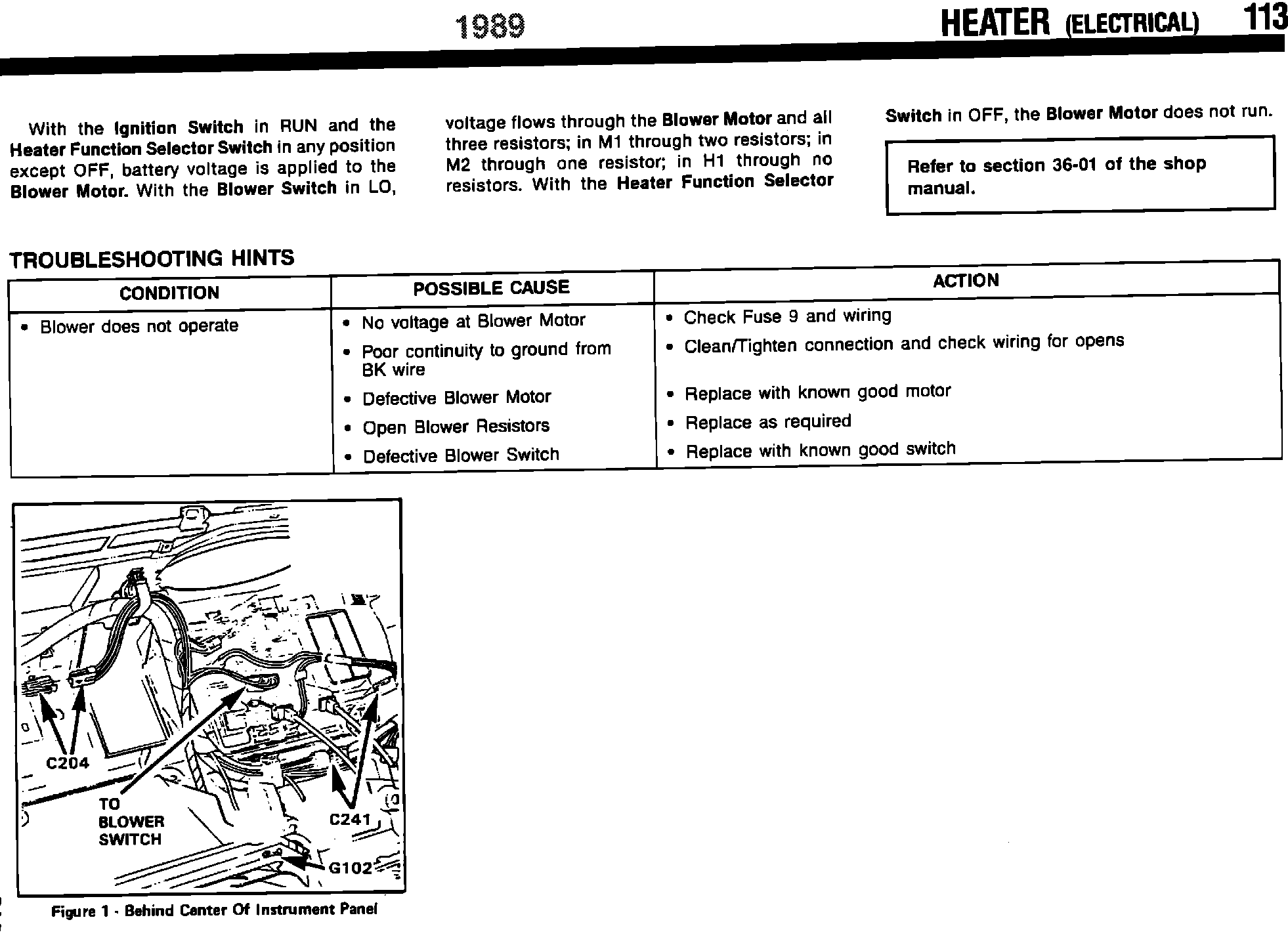

1989 A/C Heater & Component Test Information
