Home >> Ford >> 1990 >> Escort L4-116 1.9L SOHC HO >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls

Engine Controls

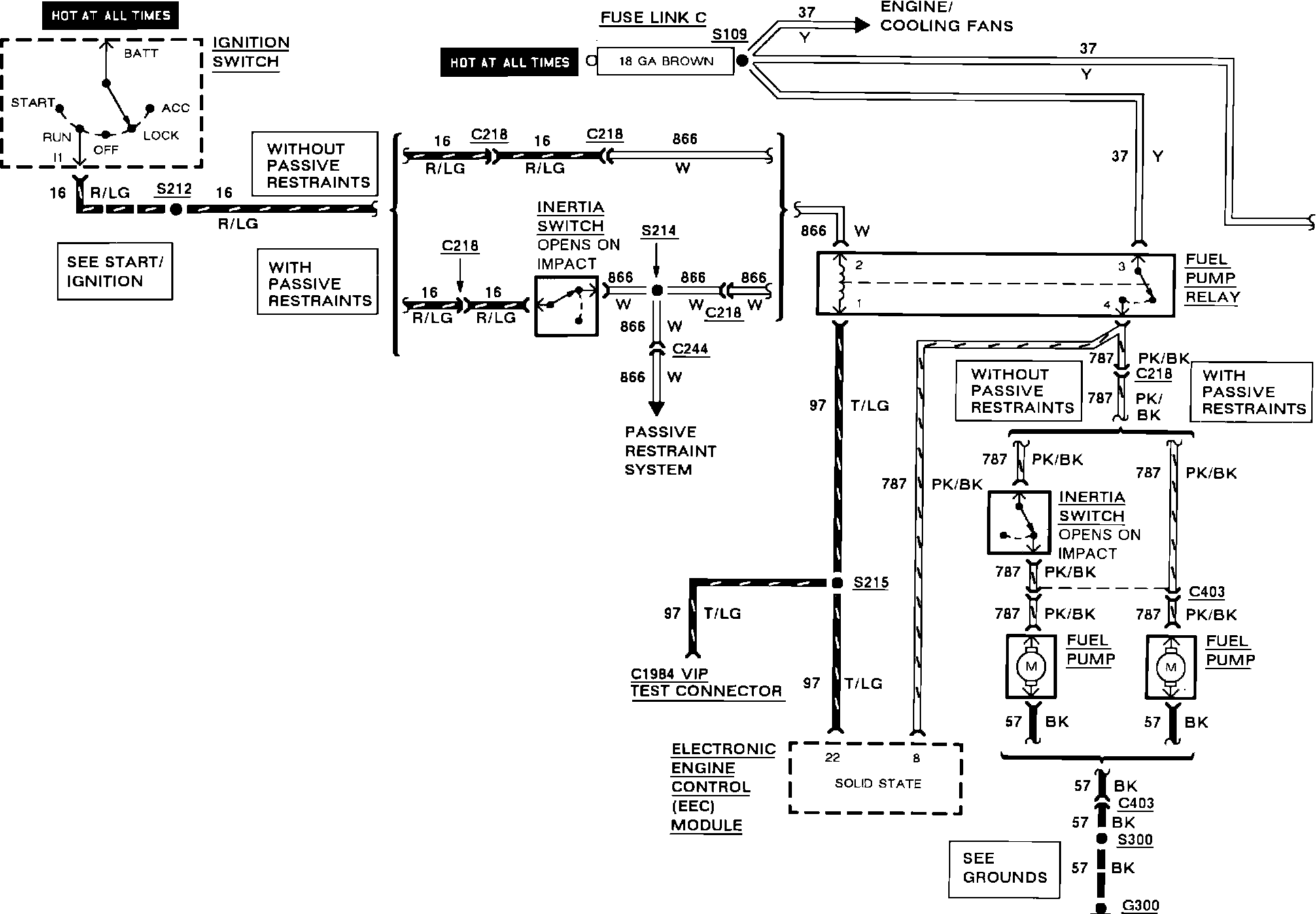

Electronic Engine Control - EFI:

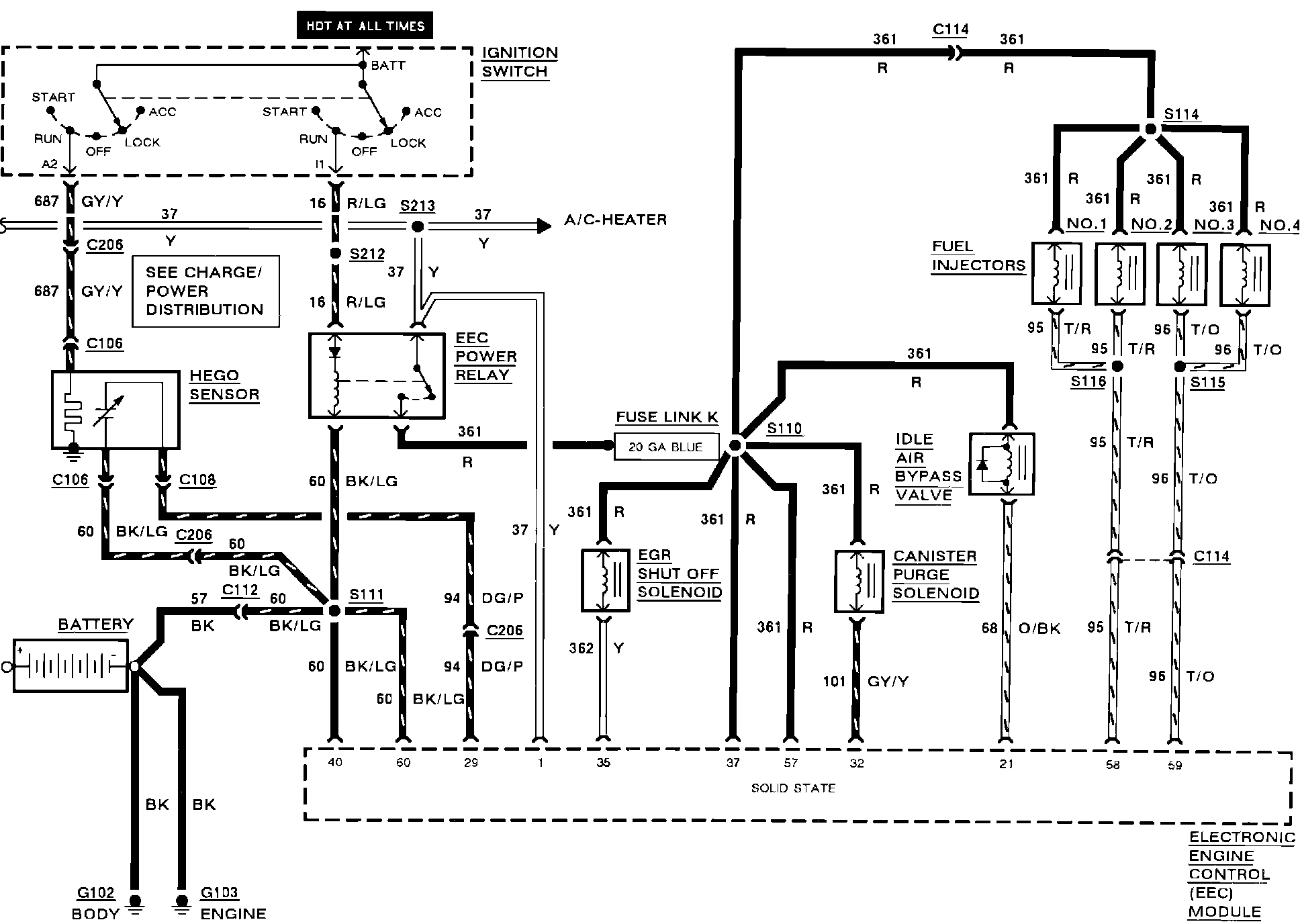

Electronic Engine Control - EFI:

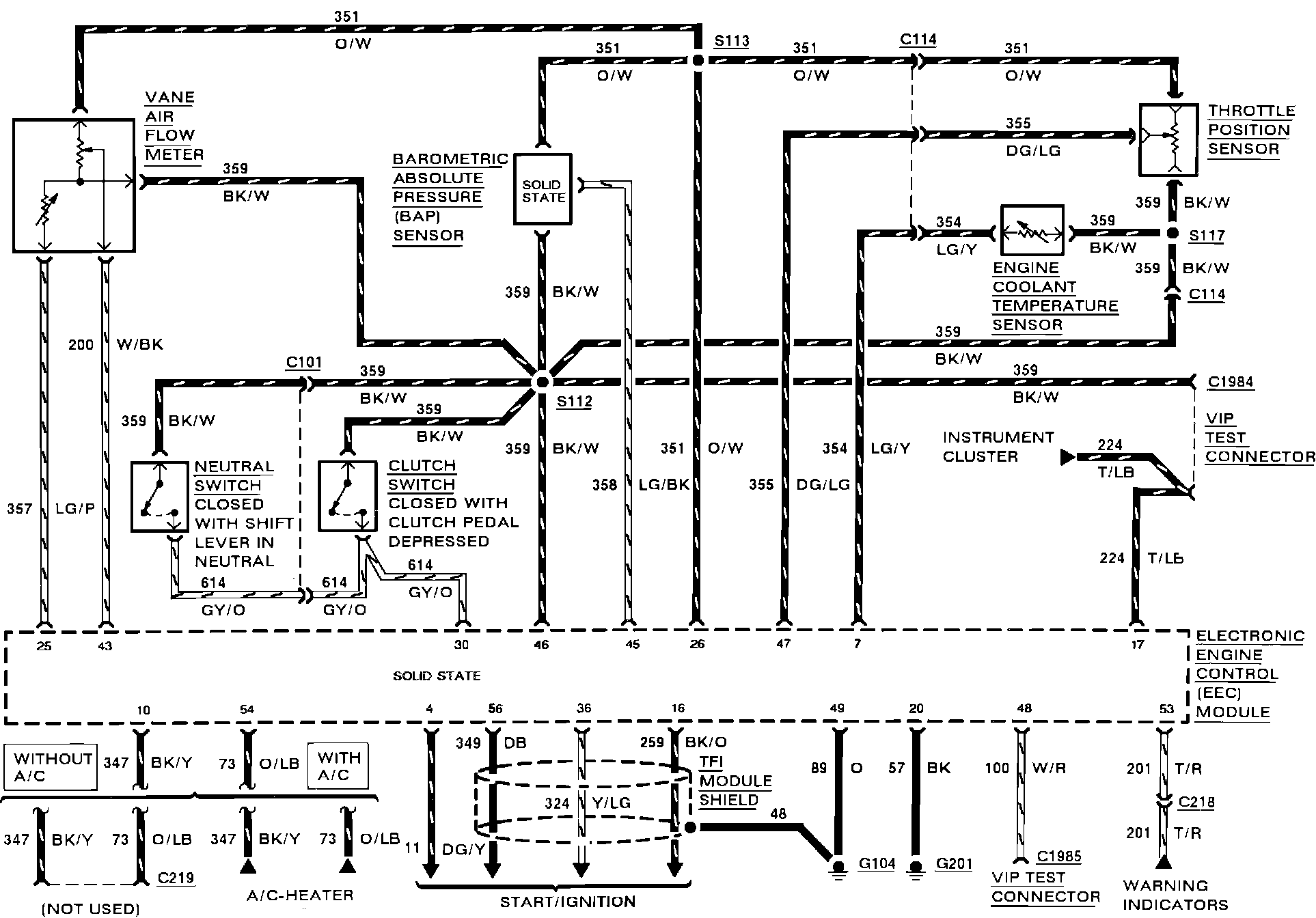

Electronic Engine Control - EFI:
