Home >> Ford >> 1990 >> Festiva L4-81 1.3L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Technical Service Bulletins >> Engine Control Systems - Diagnosis Revision >> 4EAT Transaxle >> Quick Test >> Test Step QT2 Thru 4 Equipment Hook-Up

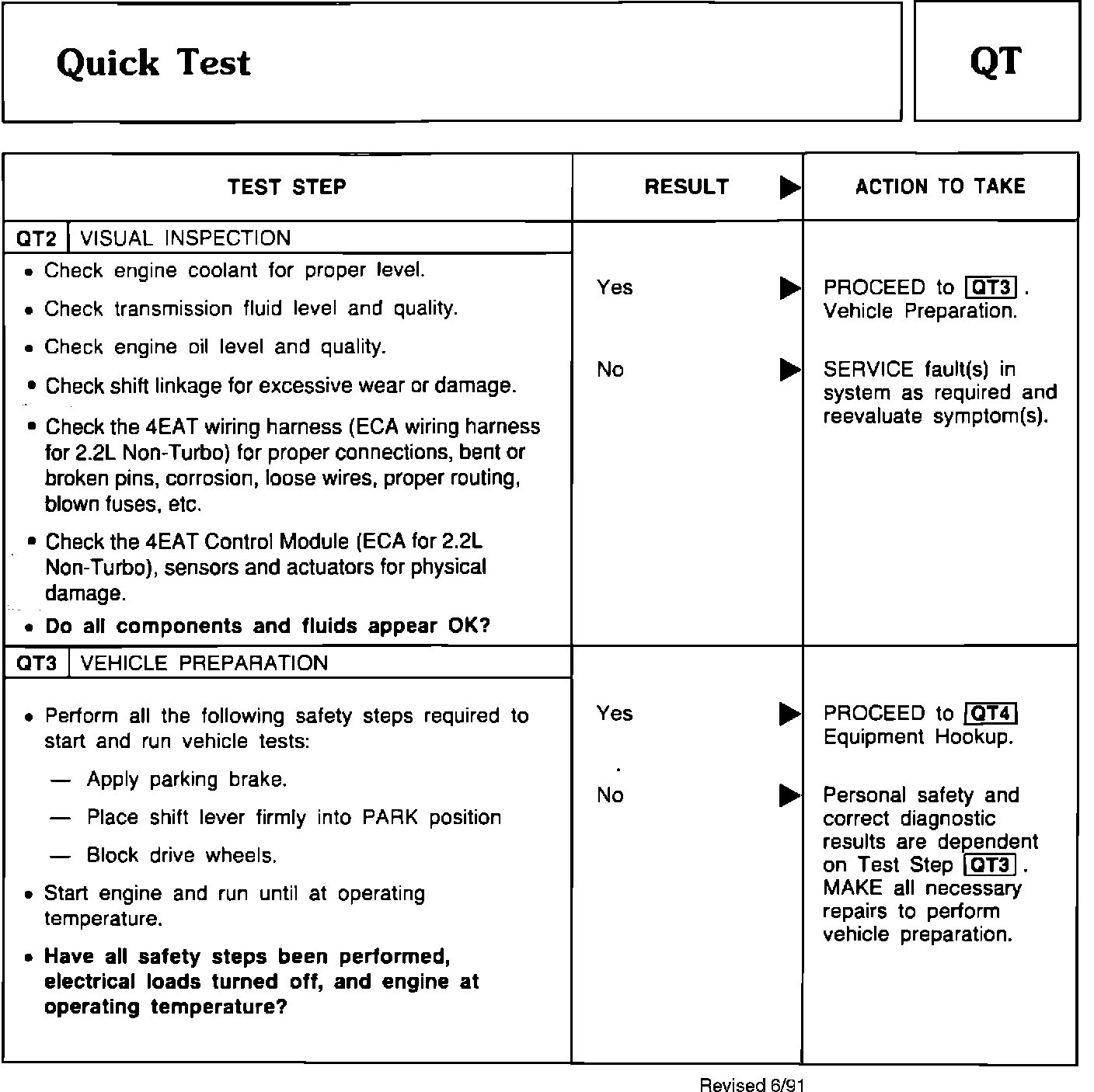

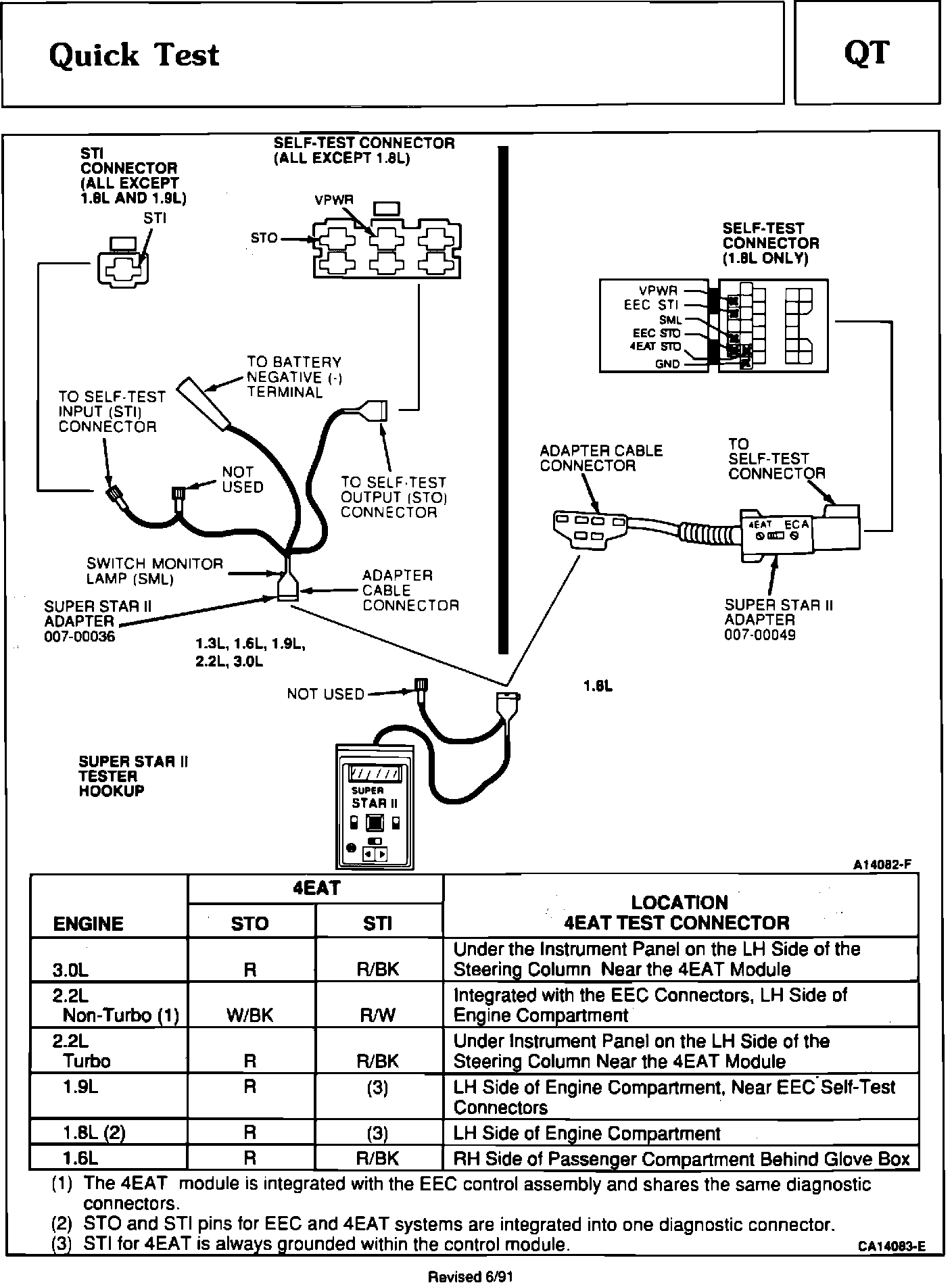

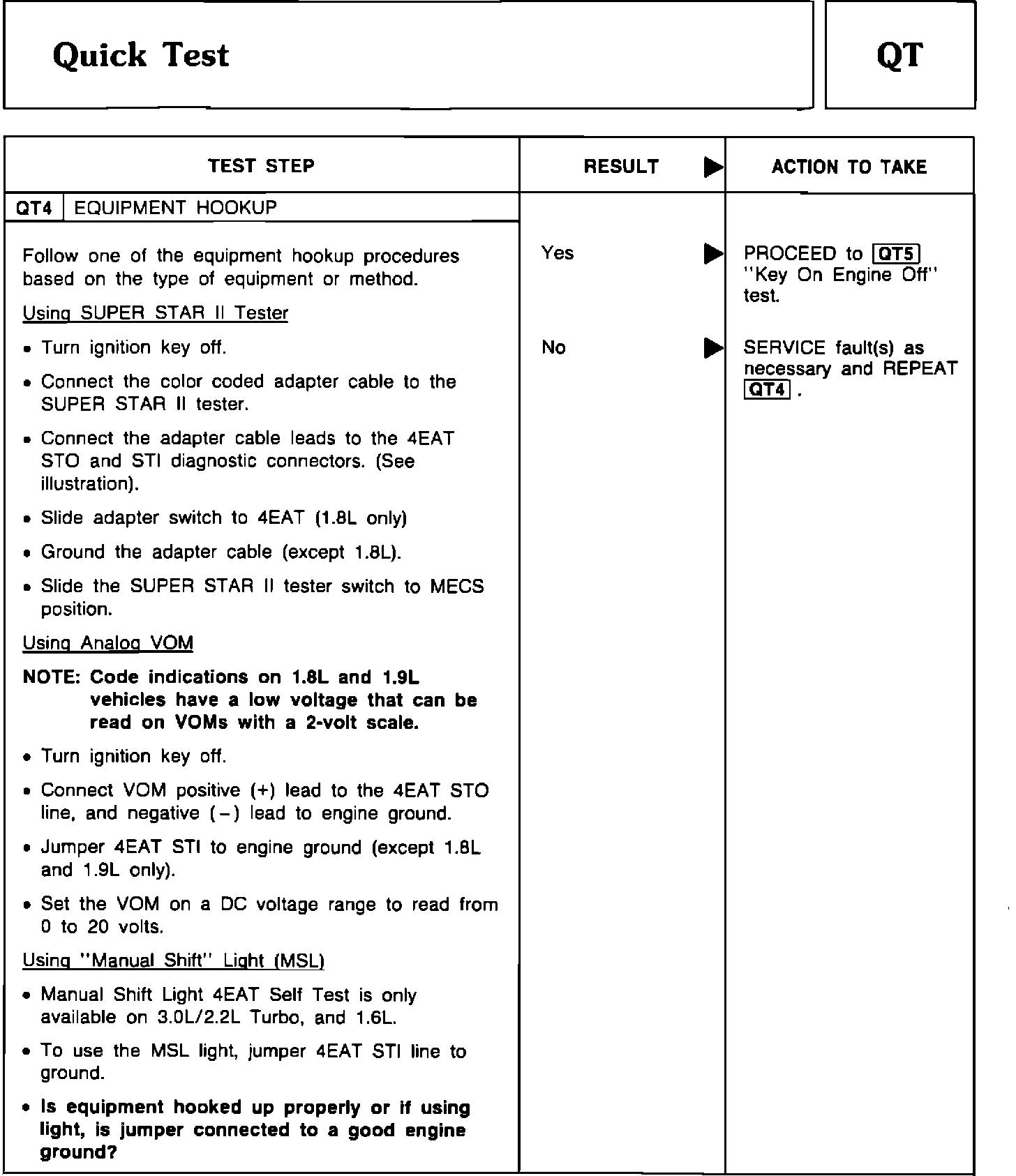

Test Step QT2 Thru 4 Equipment Hook-Up
