SCG - Solenoid Controlled By Ground
>>

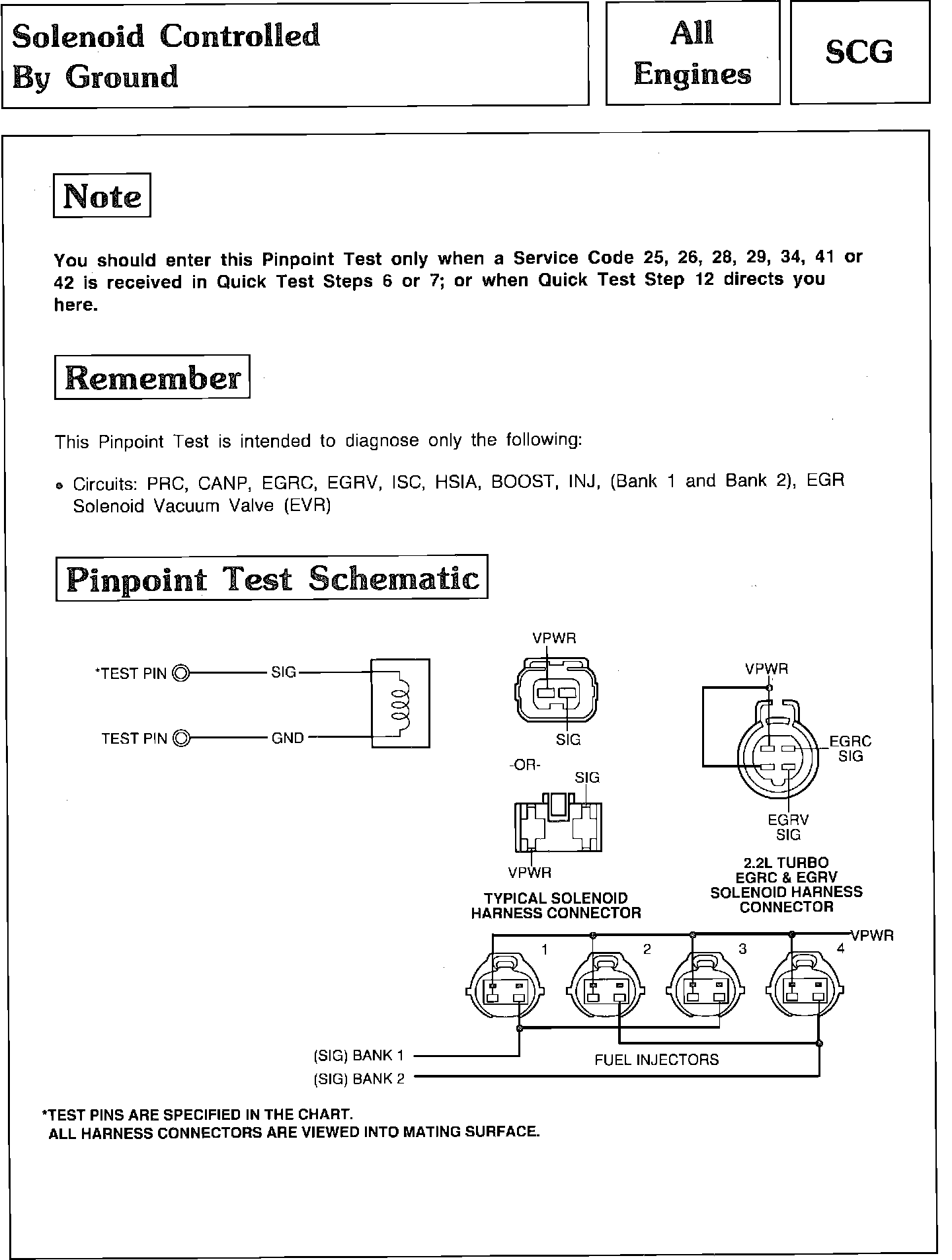

SCG - Wiring Diagram
SCG - Wiring Diagram
Pinpoint Test SCG - Solenoid Controlled By Ground:
