Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1991
>>
Escort L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Technical Service Bulletins
>>
All Technical Service Bulletins
>>
Electrical/Vacuum Schematics - Manual Revision
>>

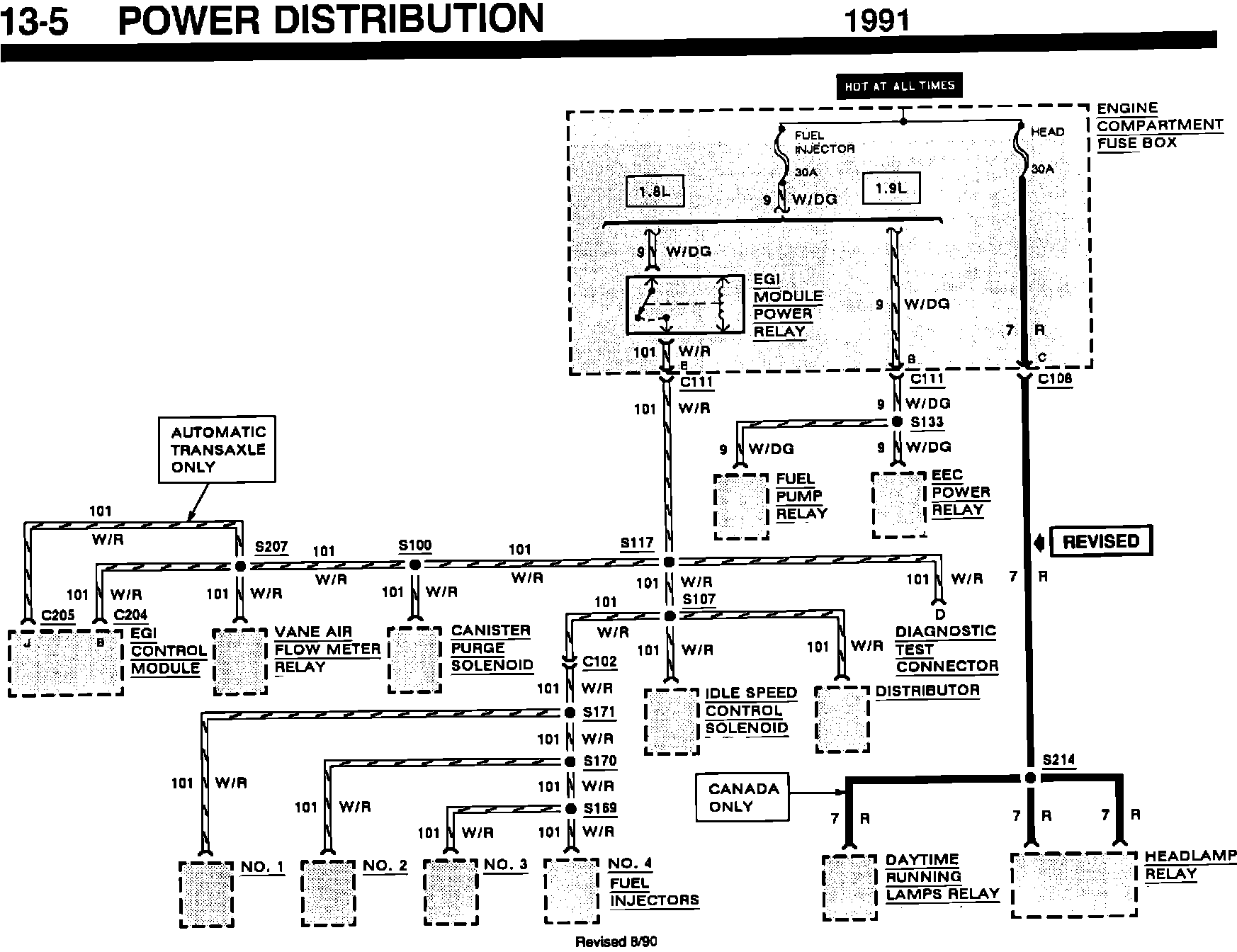

13-5 Power Distribution
13-5 Power Distribution
