CC11: Check Refrigerant Pressure Switch

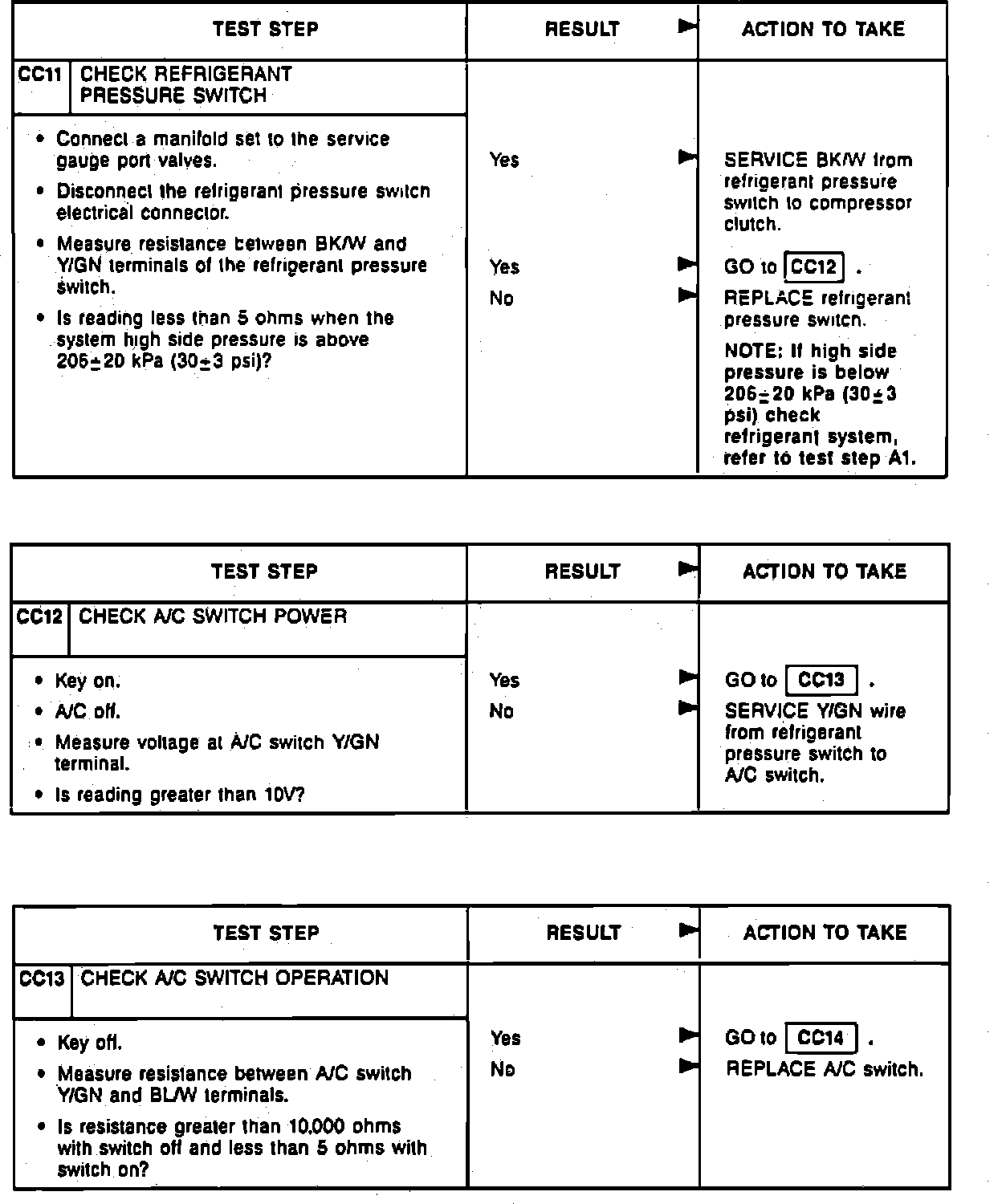

Fig. 51 Compressor clutch diagnosis (Tests CC11, CC12 & CC13):
