Home >> Ford >> 1991 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Headlamp Control Module >> Diagrams >> Electrical Diagrams >> With Headlamp Checker

With Headlamp Checker

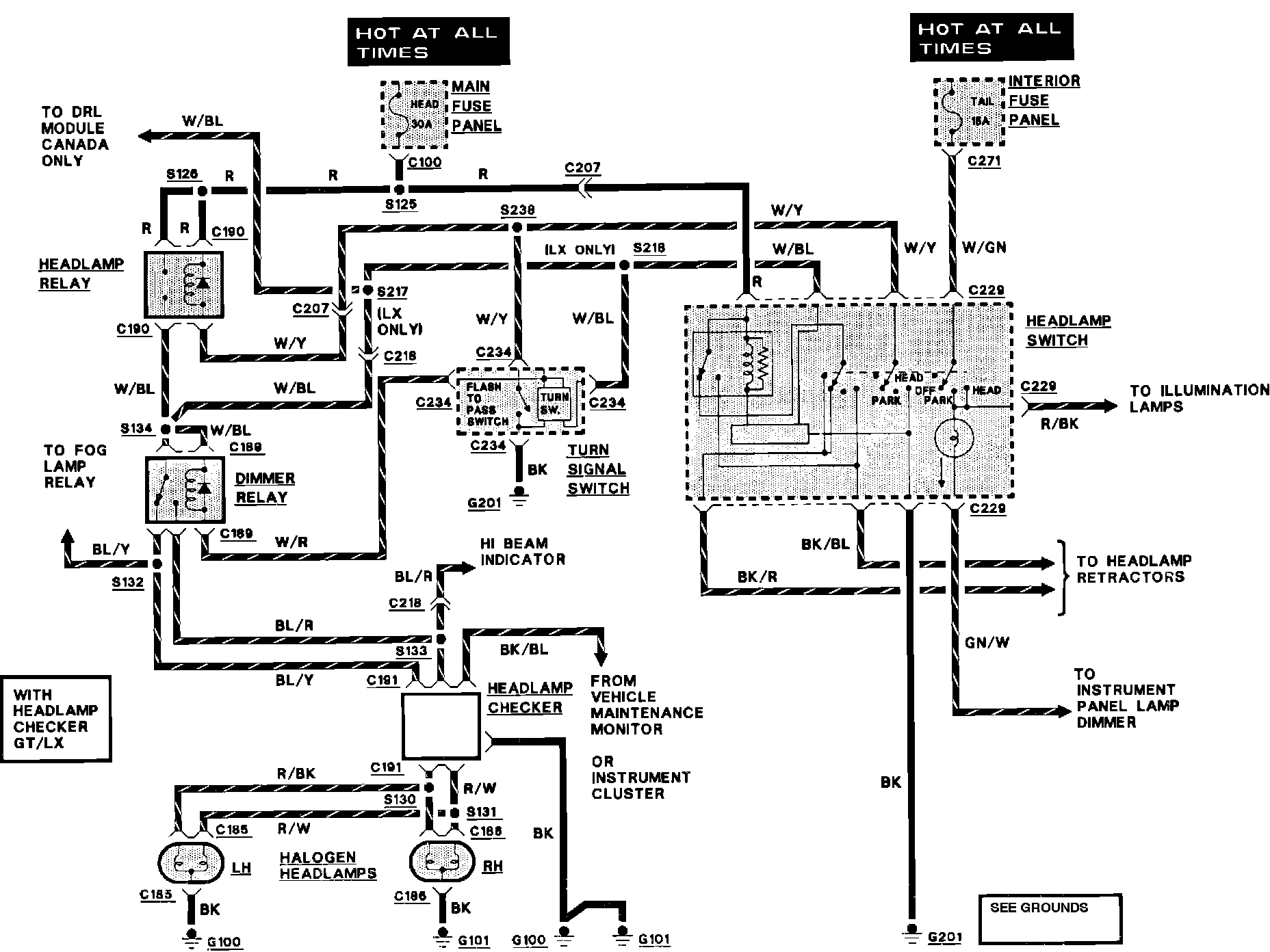

Headlamps (W/Headlamp Checker):



Headlamps:
