Air Conditioning

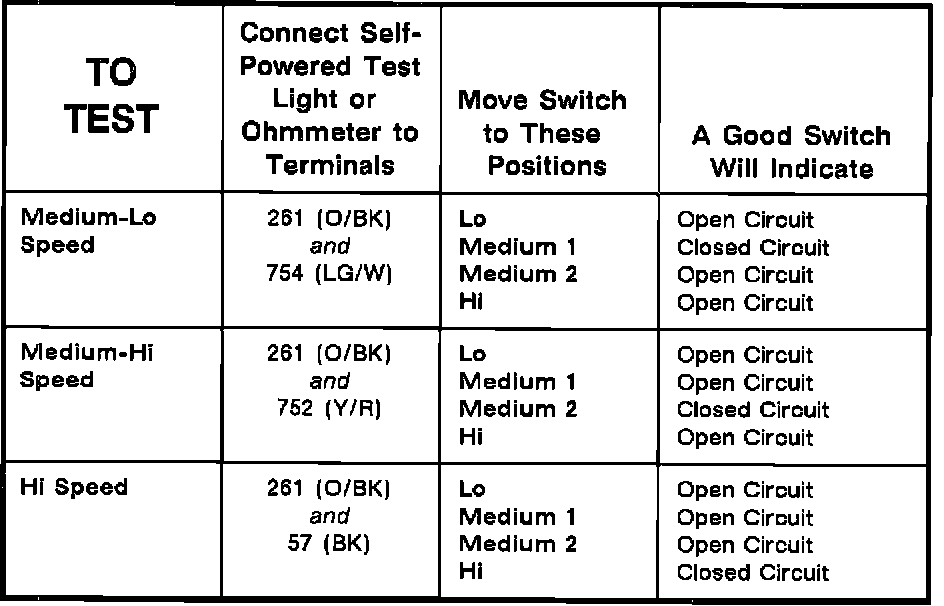

COMPONENT TESTING PROCEDURE


Component Testing Procedure:






TERMINAL IDENTIFICATION


Blower Motor Switch - Terminal Locations:

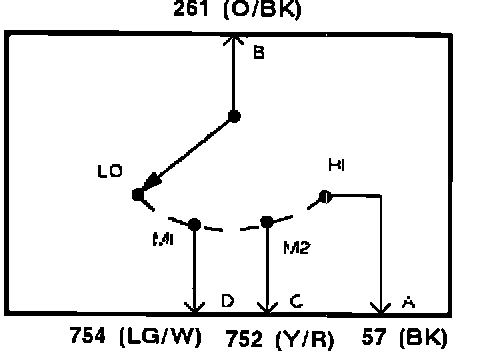

SCHEMATIC


Schematic:
