Removal

1. Remove the wheel.

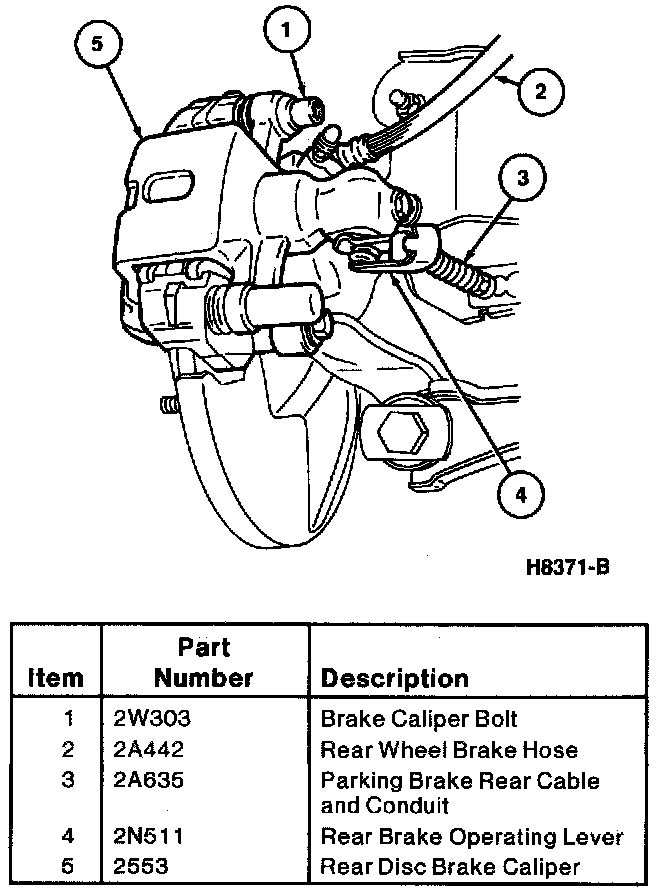

Parking Brake Rear Cable:

2. Remove the parking brake rear cable and conduit retaining clip.
3. Loosen the parking brake rear cable and conduit adjusting nut. Remove the parking brake rear cable and conduit from the rear brake operating lever and the rear disc support bracket.
4. Remove the connector bolt attaching the rear wheel brake hose to the rear disc brake caliper.
5. Remove and discard the two copper washers from the rear wheel brake hose.

Caliper Assembly:

6. Remove the brake caliper bolt.
7. Pivot the rear disc brake caliper downward off the rear disc brake caliper anchor plate and slide the rear disc brake caliper off the guide pin.
