Front Washer Switch
>>
Without Interval
Without Interval

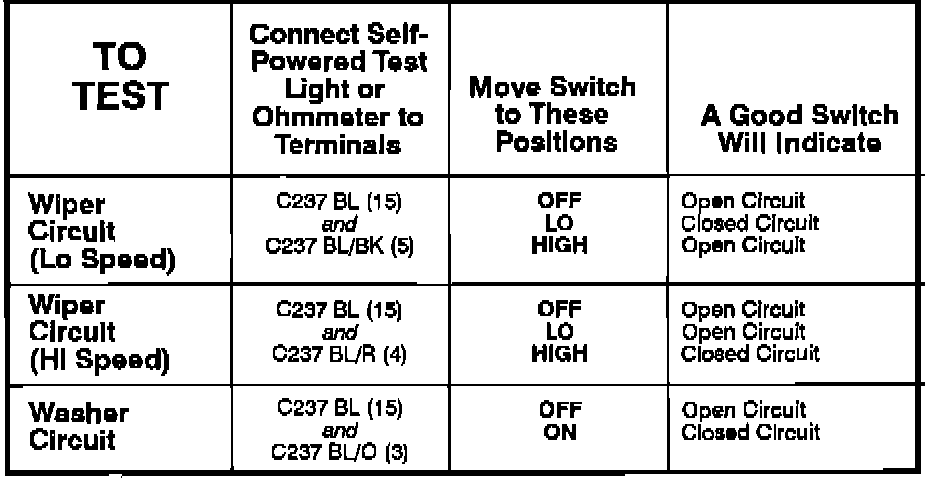

Component Testing Procedure
Component Testing Procedure:

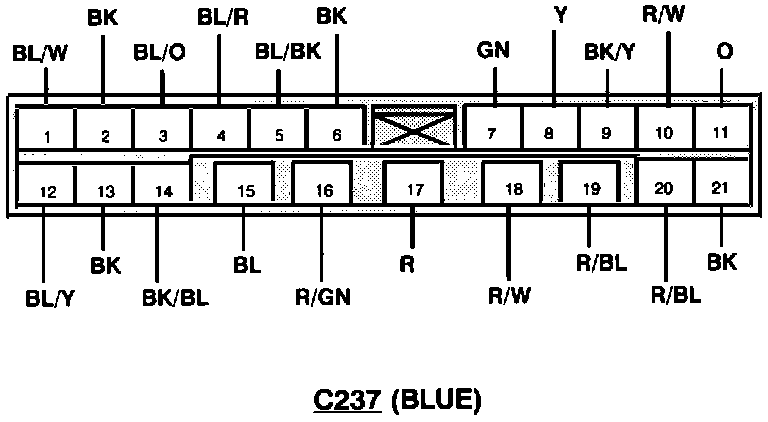

Terminal Locations
Multi-Function Switch - Terminals:

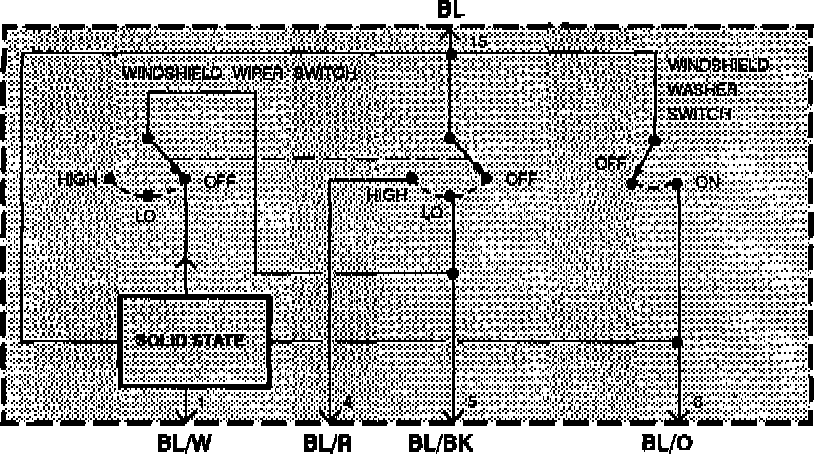

Schematic Windshield Wiper/Washer Switch
Schematic:
