Blower Motor Resistor: Service and Repair

REMOVAL

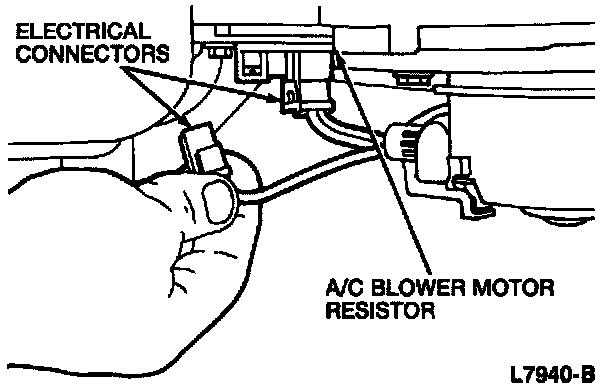

1. Disconnect the two A/C blower motor resistor electrical connectors.

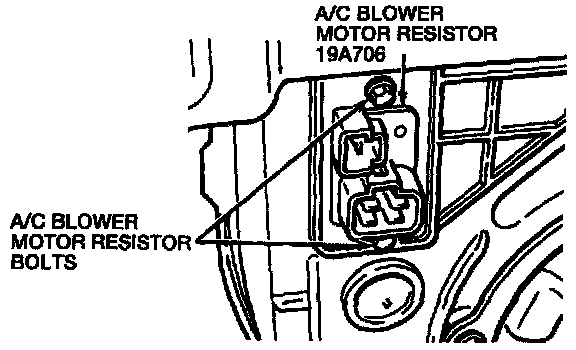

2. Remove the two A/C blower motor resistor bolts.

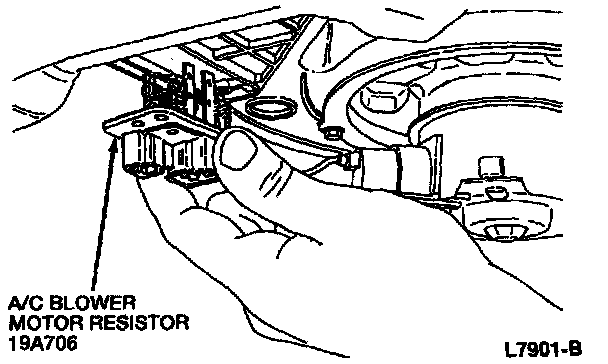

3. Remove the A/C blower motor resistor.

INSTALLATION
To install, reverse the removal procedure.
