Home >> Ford >> 1994 >> Mustang V8-302 5.0L HO >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Air Injection >> Air Injection Bypass Valve >> Locations

Air Injection Bypass Valve: Locations

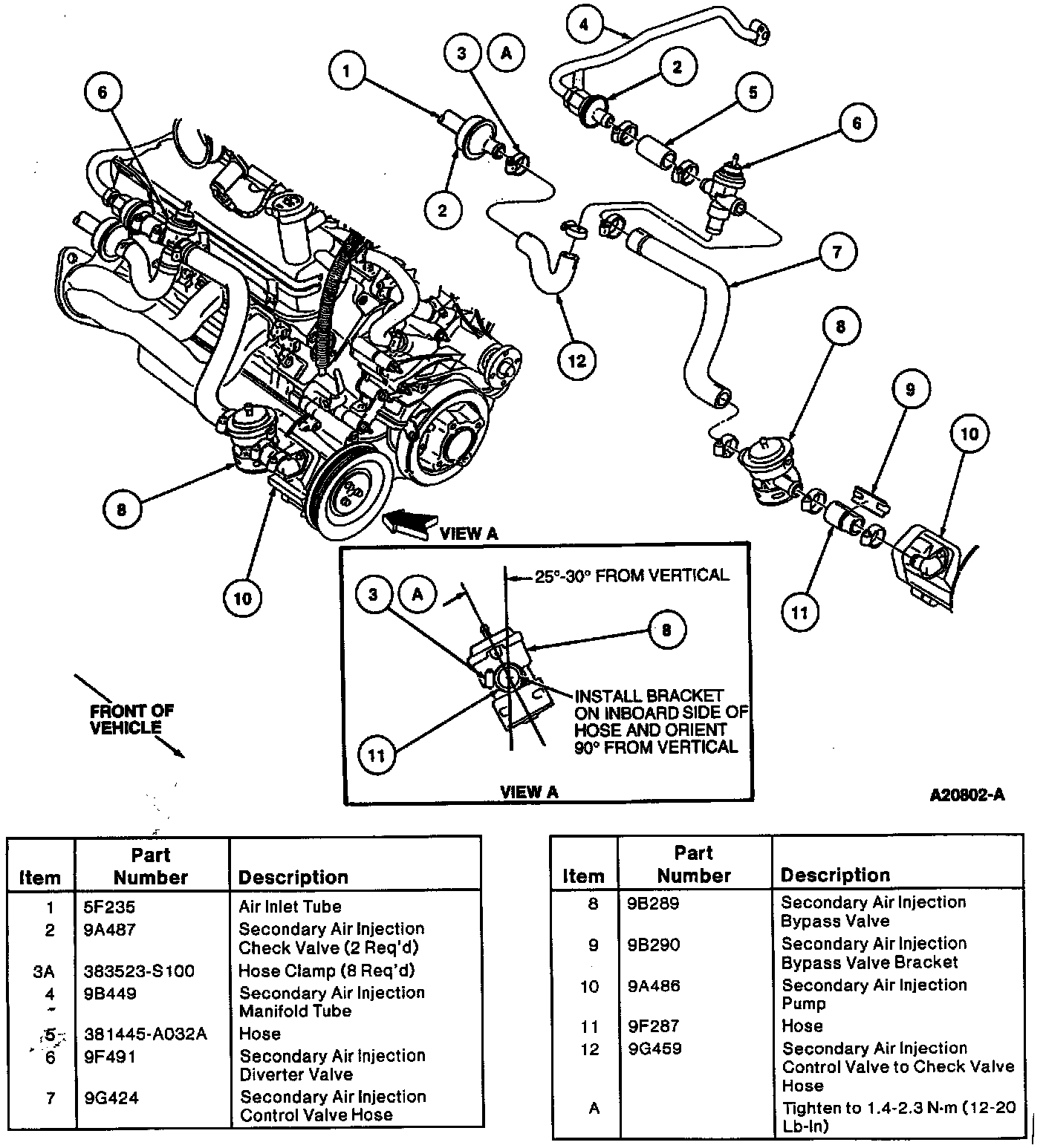

AIR Parts View:
