H - Fuel Control
>>
H - Test Schematic
>>
California
California
*** UPDATED BY TSB #93-26B-27

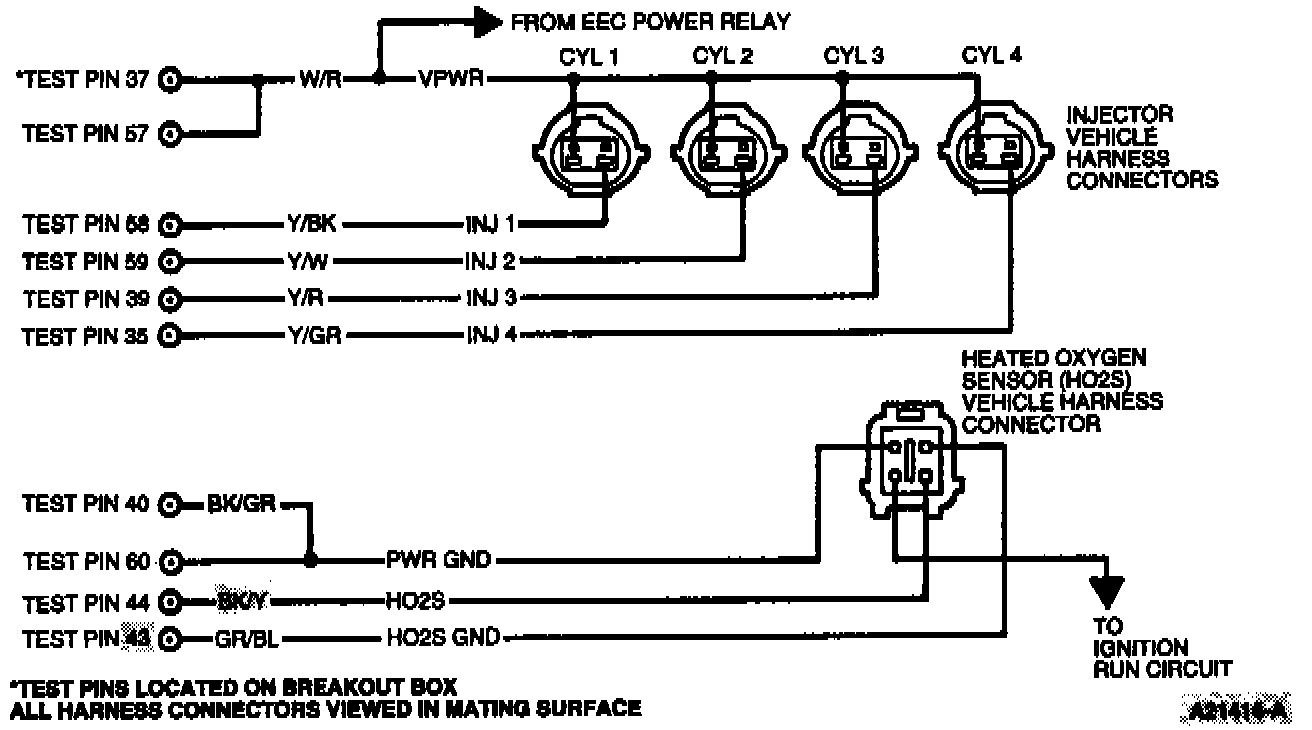

Testing Schematic:
