H - Fuel Control
>>
H - Test Schematic
>>
Federal
Federal
*** UPDATED BY TSB #93-26B-27

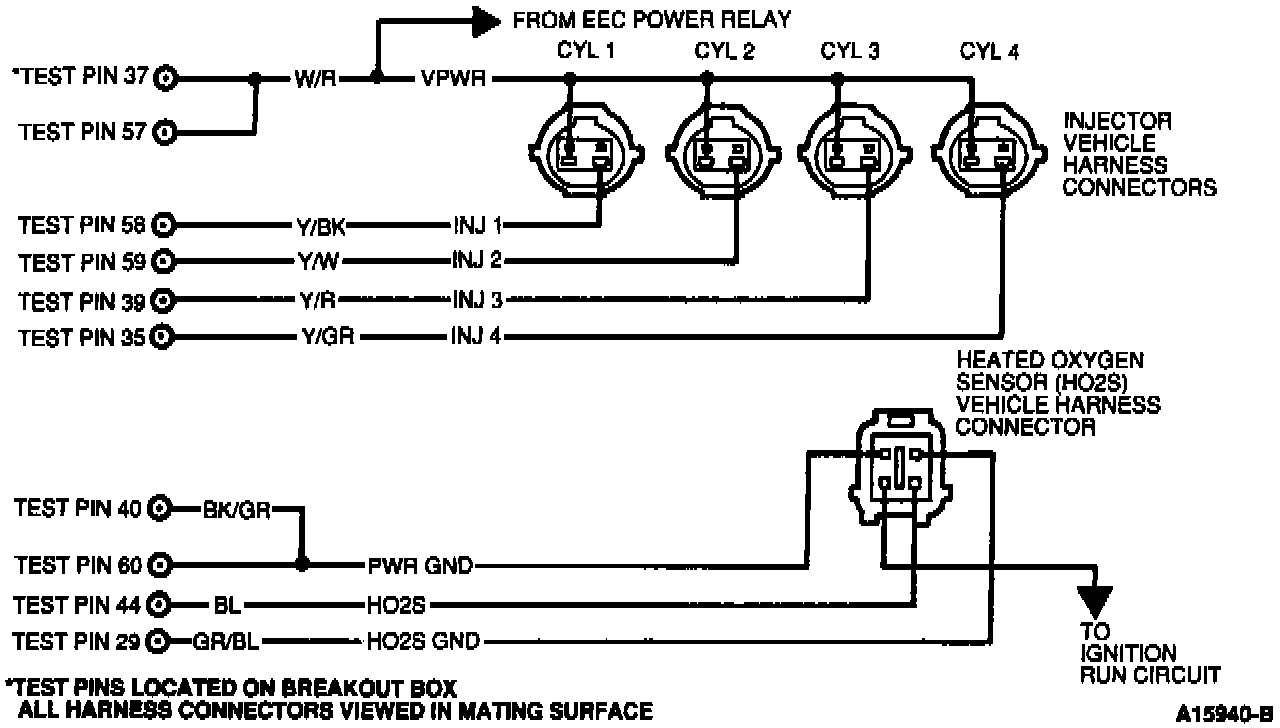

Fuel Control Schematic:
