LUX and Midline Radio System Front Control Unit
LUX and Midline Radio System Front Control Unit

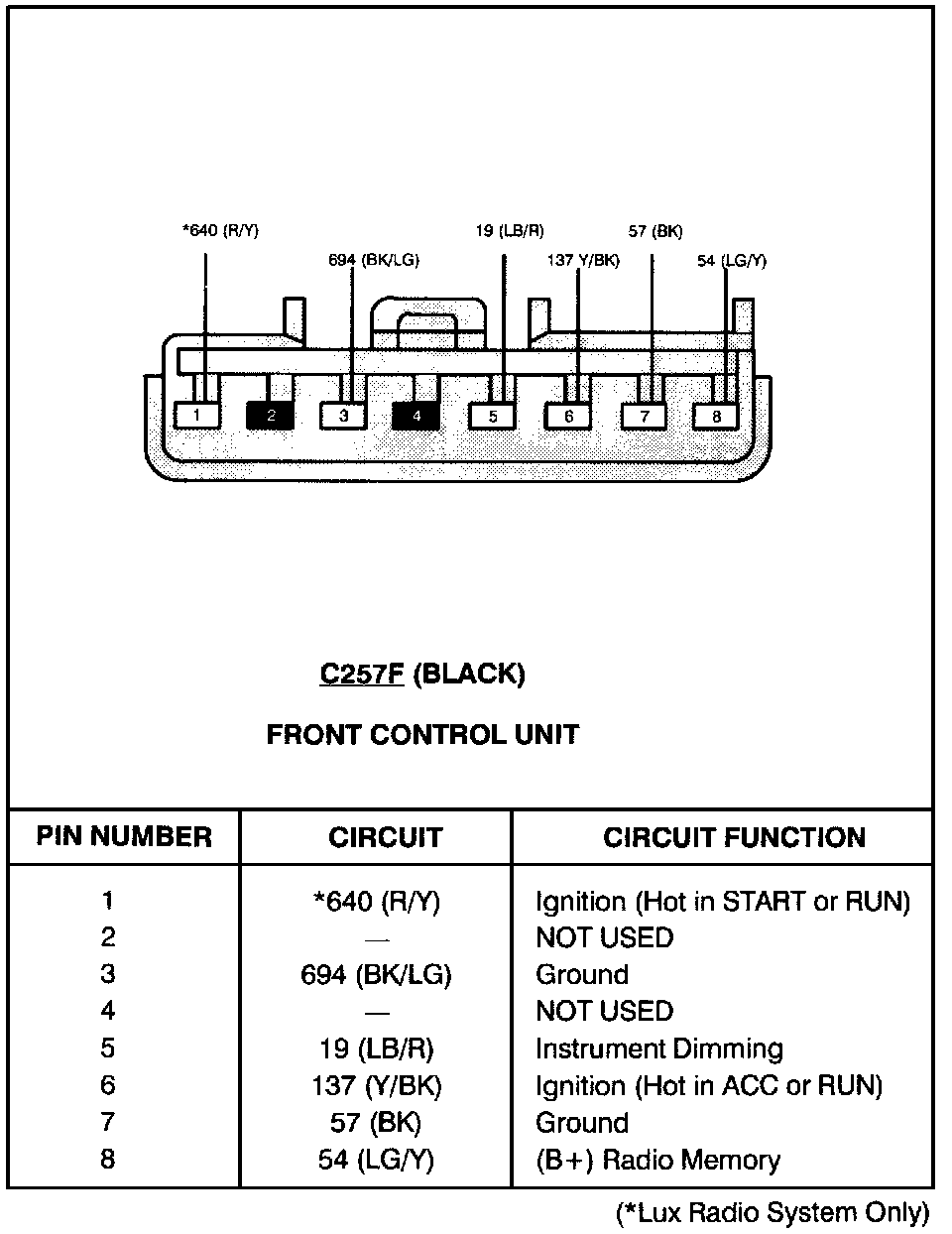

Front Control Unit (C257F):

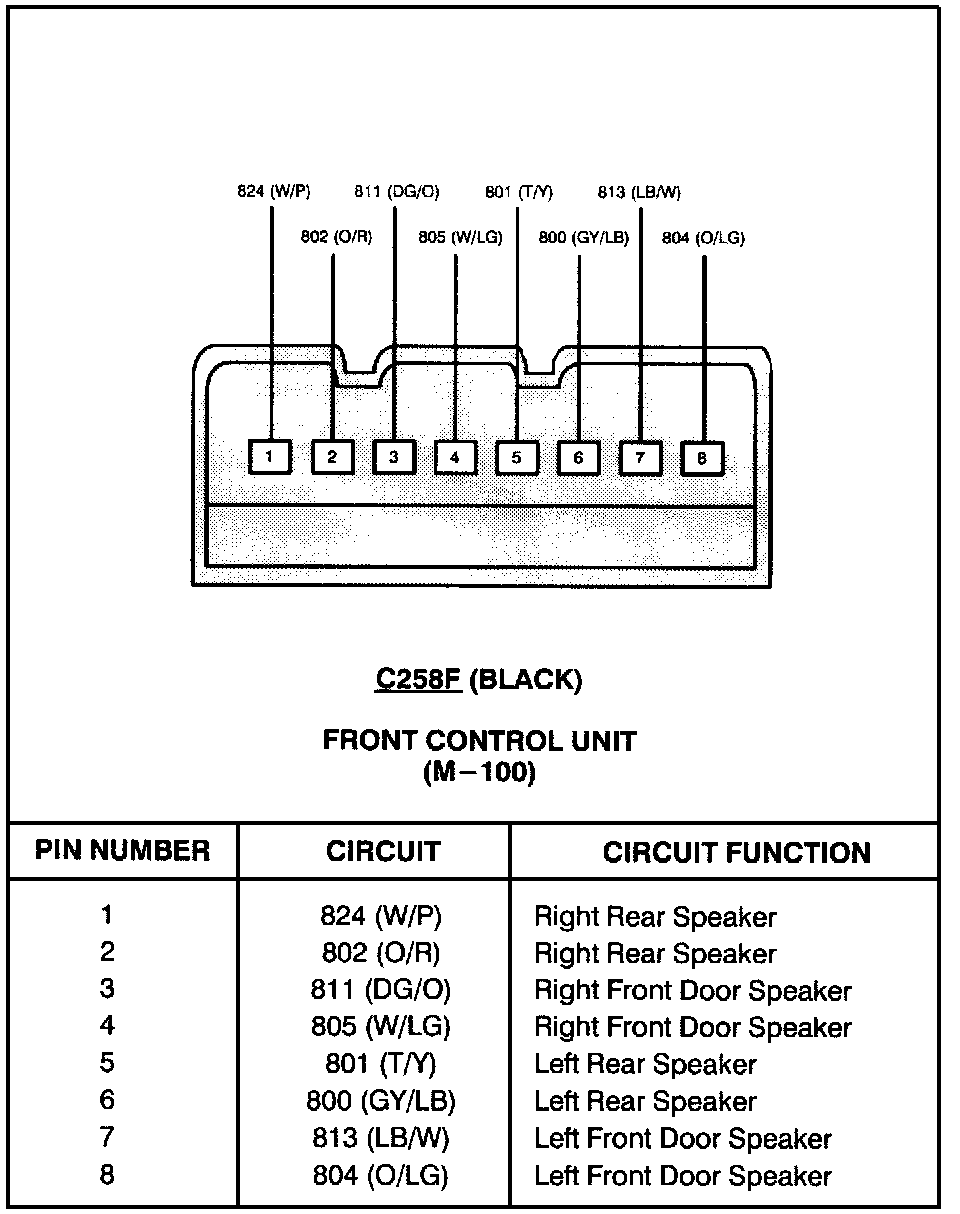

Front Control Unit (M-100):
