Drive Belt: Diagrams

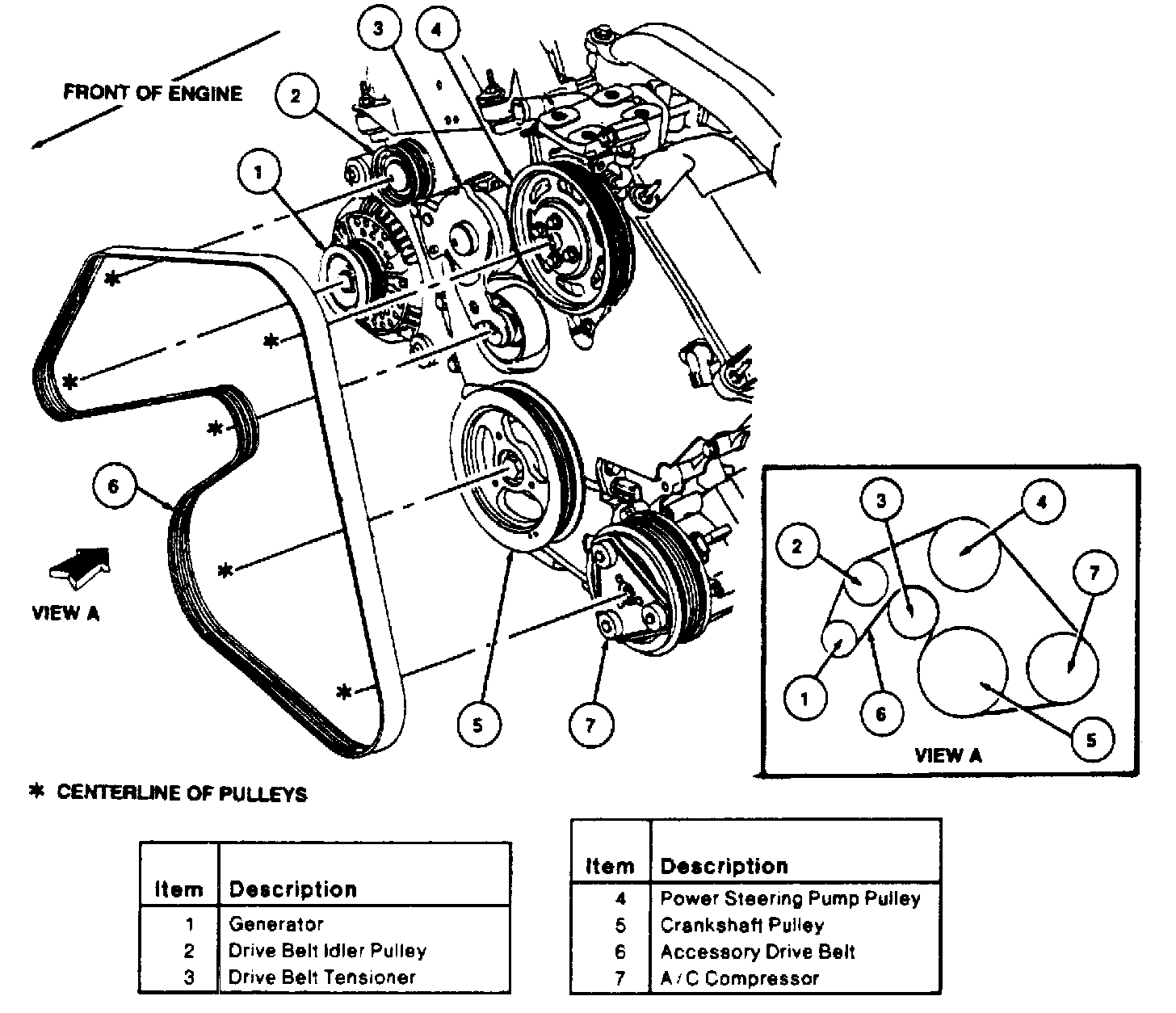

Drive belt routing:
Accessory Belt With A/C

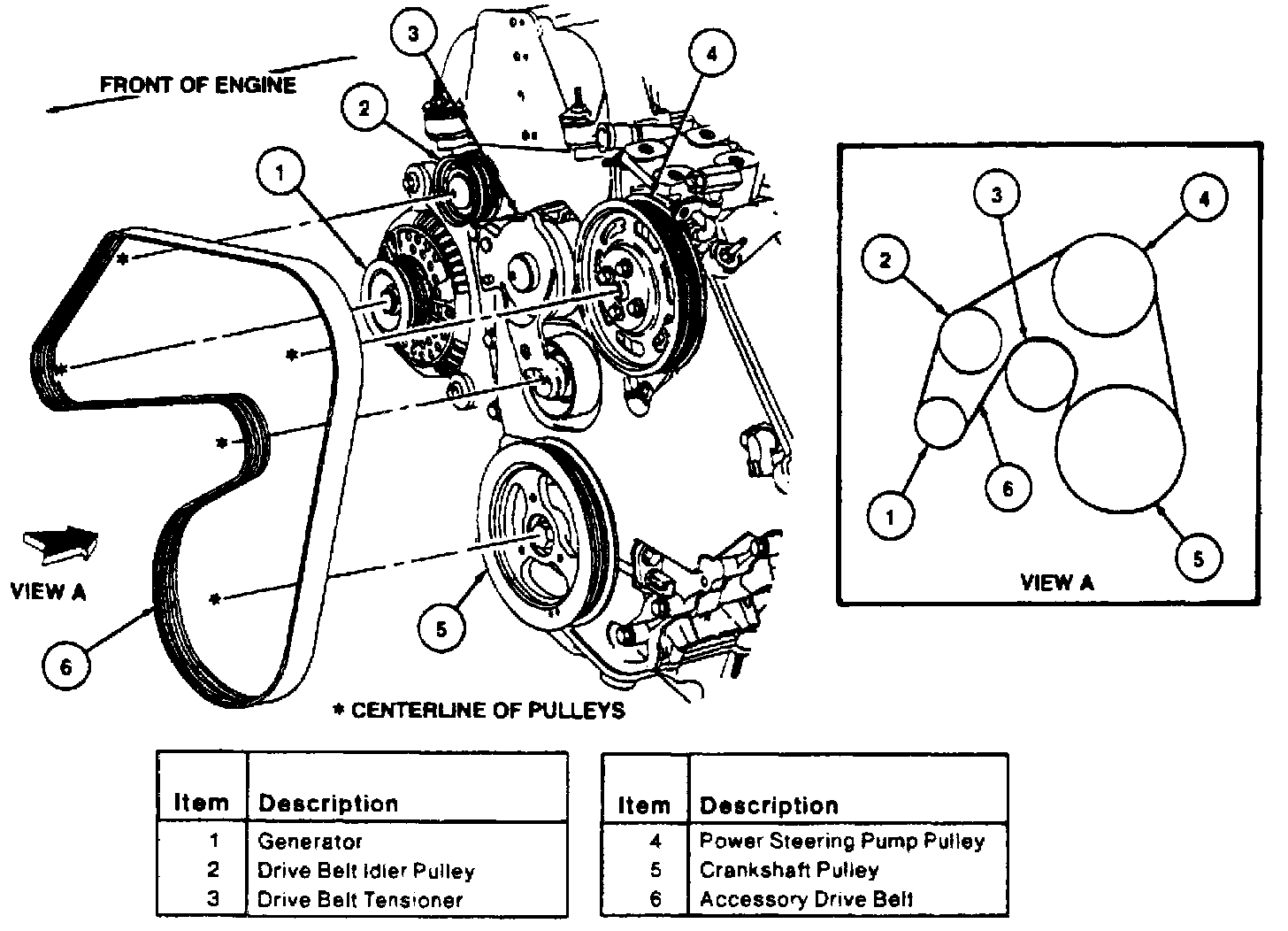

Drive belt routing:
Accessory Belt Less A/C

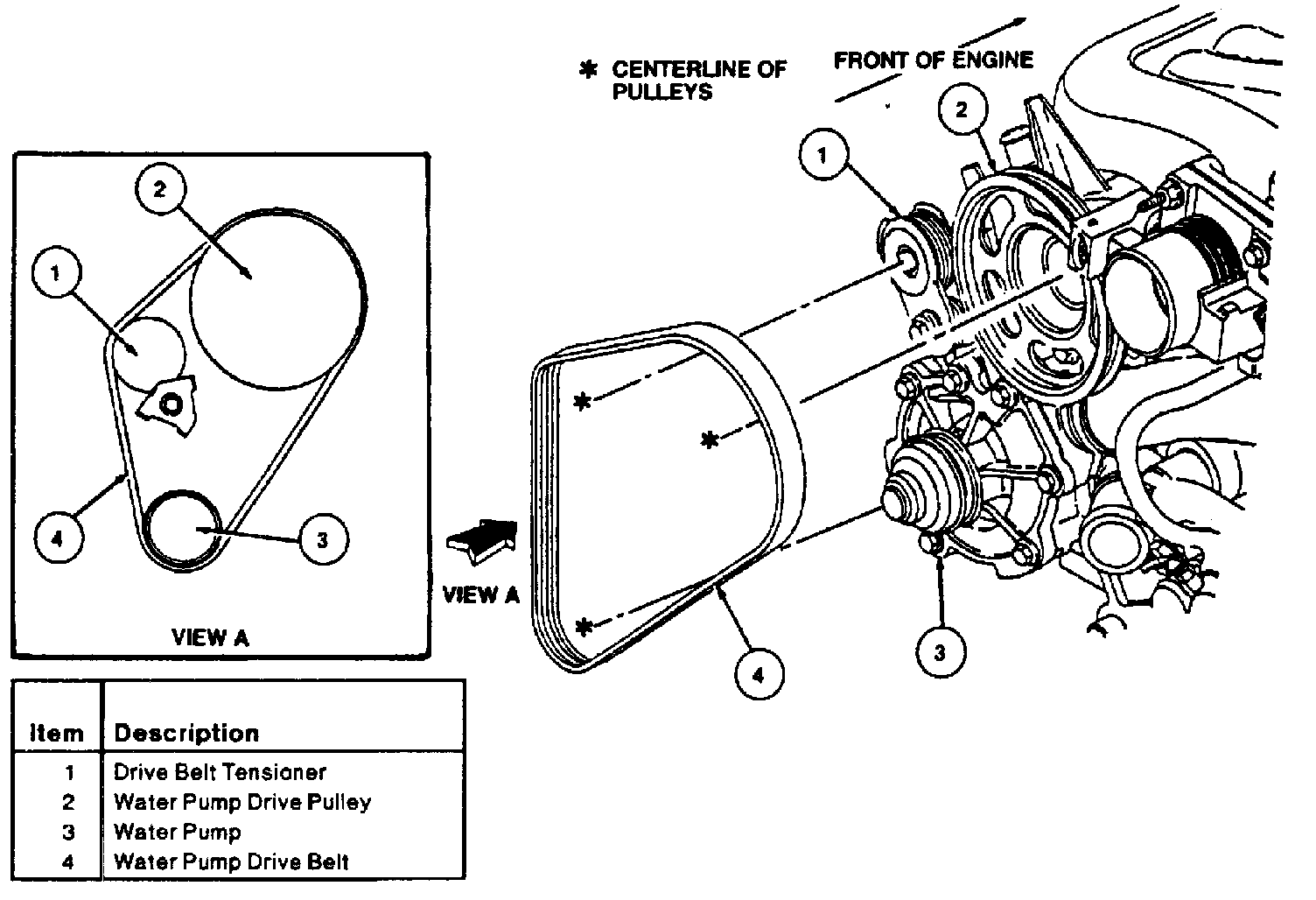

Drive belt routing:
Water Pump Belt
